industrial monitors

VITAM-119P
Manufacturer's P/N:
Manufacturer: APLEX
Show more information about the brand APLEX

19" SXGA IP66/IP69K stainless steel display, VGA/HDMI input, OSD on the rear side, projected capacitive touch, 9~36V DC power input with Adapter
Typewolnostojący
LCD size19
Resolution1280x1024
Brightness [cd/m2]350
Operating temperature range [°C]0°C/+50°C
Standard packaging:
1 pcs.

Minimum order:
1 pcs.

Minimum batch:
1 pcs.

In stock:
Ask

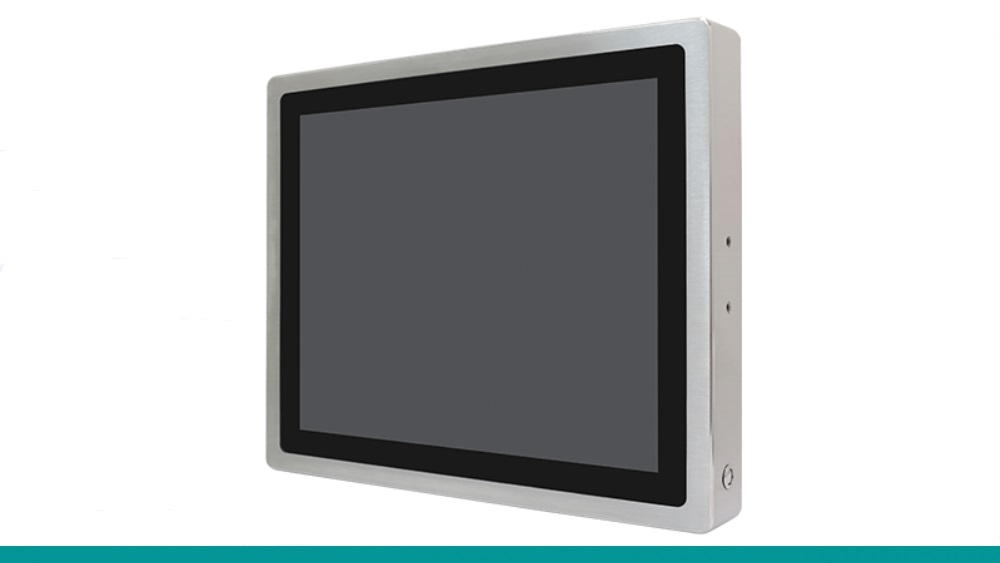

The ViTAM-119PRG(H) is a 19-inch industrial-grade touch monitor, built with SUS 316 stainless steel and certified to IP66/IP69K, making it resistant to high-pressure and high-temperature washdowns. Designed for food processing, pharmaceuticals, and other hygiene-critical industries, this fanless HMI delivers long-term reliability in harsh environments.

Key Features:

  • SUS 316 stainless steel housing – corrosion-resistant and hygienic
  • IP66/IP69K certified – sealed against dust, water jets, and sanitation procedures
  • 19" SXGA display (1280×1024) with touch panel:
  • resistive (ViTAM-119PRG)
  • projected capacitive (ViTAM-119PRGH, supports 5-point touch)

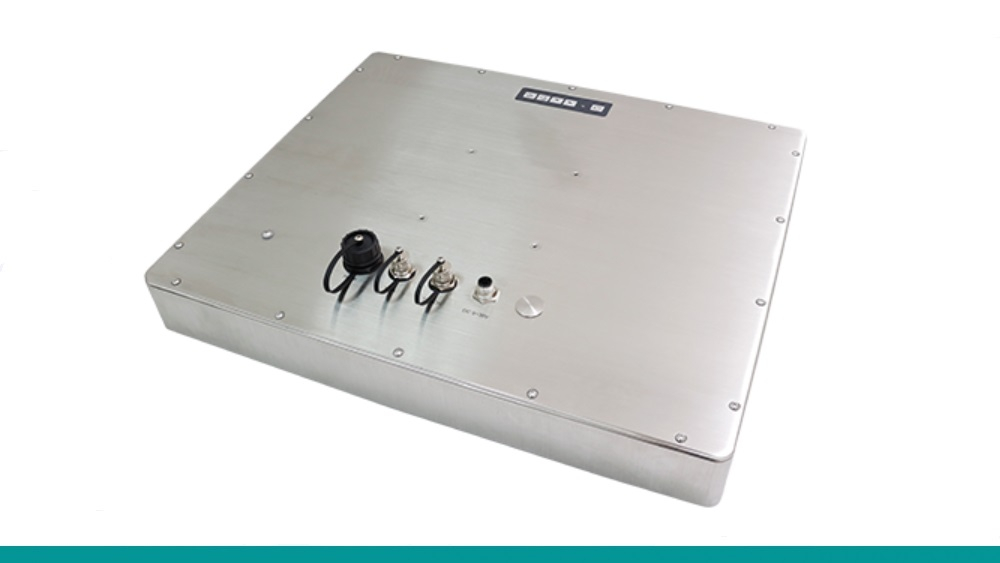

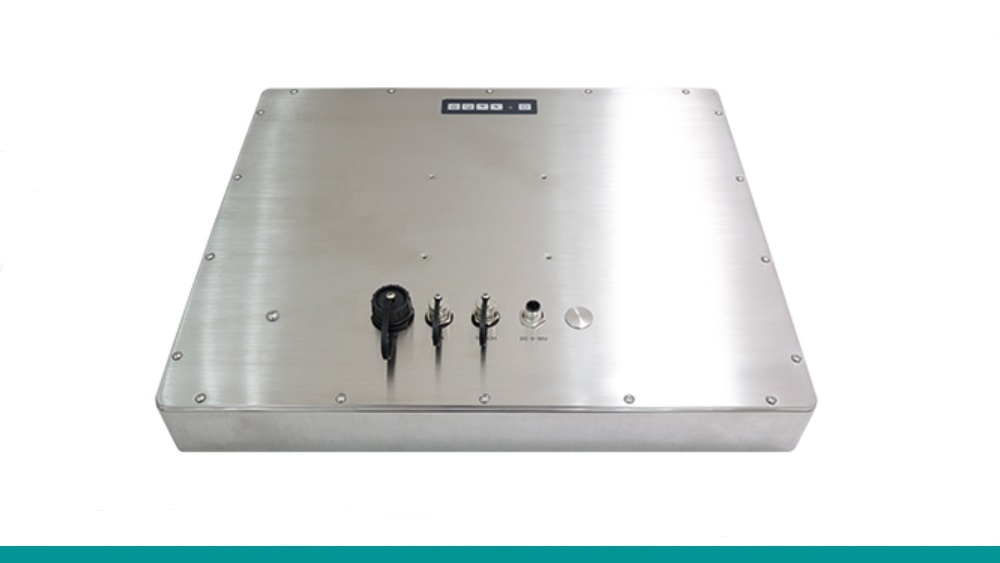

  • M12 connectors – for HDMI/VGA, USB, COM, and power; rugged and waterproof
  • Mounting options – VESA 100 × 100 mm and Ø48 mm tube mount
  • Wide DC input range – 9 to 36 V DC
  • Operating temperature – from -20°C to +60°C (depending on configuration)

Typical Applications:

  • food and beverage processing lines
  • dairy, meat, and fish production facilities
  • pharmaceutical and cosmetic plants
  • cleanroom environments
  • chemical and wet industrial settings

ViTAM-119PRG(H) is a durable, sealed industrial HMI display designed to meet the strictest sanitation standards. Ideal as a human-machine interface in automation systems and industrial control stations.

Specification:

  • I/O port:
    • VGA: 1 x M12 12-pin for VGA with waterproof cover and chain
    • HDMI: 1 x W.F. HDMI with waterproof cap
    • USB: 1 x M12 USB 2.0 with waterproof cover and chain
    • speaker: 1 x 2W IP65 speaker (option)
    • OSD control membrane: OSD on the rear side
    • power connector: 1 x M12 3-pin for DC power with waterproof cover and chain
  • display
    • display type: 19” TFT-LCD
    • max. resolution: 1280 x 1024
    • max. color: 16.7M
    • luminance (cd/m2): 350, 1000 (high brightness version)
    • view angle: 170(H) /160(V)
    • contrast: 1000:1
    • backlight lifetime: 50,000 hrs
  • touch screen
    • type
      • resistive touch (for R model)
      • projected capacitive touch (for P model)
      • glass (for G model)
    • interface: USB
    • light transmission(%):
      • resistive touch: 80%
      • projected capacitive: 90%
  • power:
    • power input: DC 9~36V
    • power consumption:
      • ViTAM-119P: max 19W
      • ViTAM-119PH: max 30W
  • mechanical:
    • construction: 304 stainless steel chassis(default), 316 stainless steel chassis (optional)
    • mounting: VESA mount 100 x 100, yoke mount (option)
    • IP rating: total IP66/IP69K
    • dimensions: 470 x 388.6 x 60 mm
    • net weight: 8.8 kg
  • environmental:
    • operating temperature: 0~50°C / -20~60°C for option
    • storage temperature: -30~70°C
    • humidity: 10 to 95% @ 40°C, non- condensing
    • certificate: CE/FCC class A
  • versions:
    • ViTAM-119P - projected capacitive touch screen
    • ViTAM-119R - 5 wire resistive touch screen
    • ViTAM-119G - protection glass
    • ViTAM-119PH - projected capacitive touch screen, high luminance
    • ViTAM-119RH - 5 wire resistive touch screen, high luminance
    • ViTAM-119GH - protection glass, high luminance
