power inductors

SDS125B-560M-LF
Manufacturer's P/N: SDS125B-560M-LF
Show more information about the brand Coilmaster Electronic Co.,Ltd.

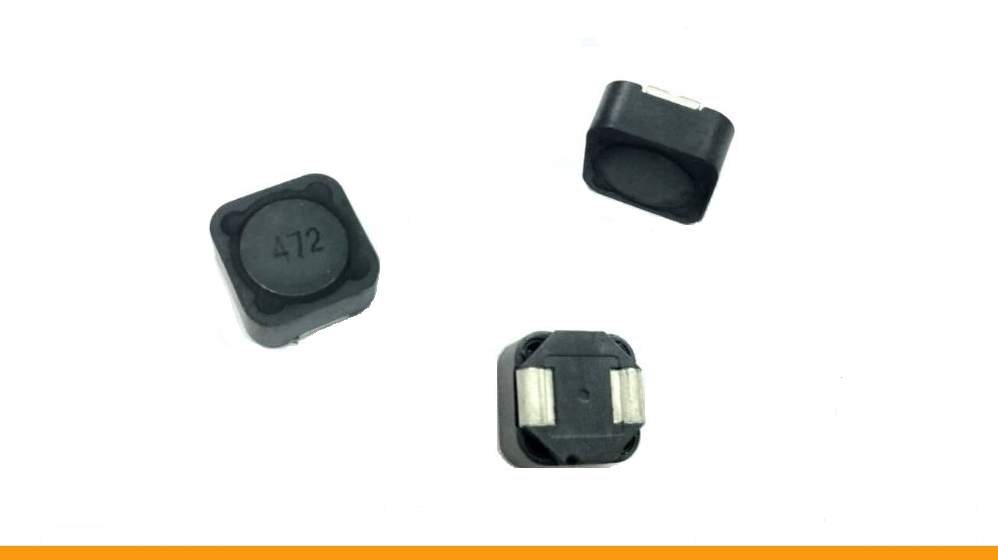

Shielded SMD Power Inductor Coilmaster SDS125B-560M-LF 56uH Isat=2.50A DCR=0.155R
Inductance56uH
Series resistance0,155R
Maximum current2,5A
Core typeshielded
AssemblySMD
Standard packaging:
1000 pcs.

Minimum order:
1000 pcs.

Minimum batch:
1000 pcs.

In stock:
Ask

Features:

  • shielded construction
  • RoHS compliant
  • operating temperature range: -40℃ to +125℃
  • size (max): 12.5x12.5x6.5 mm
  • inductance range: 2.5 ~1500uH
  • current range: 0.42~10A
