In the booming world of Smart Building, Smart City and industrial IoT systems, reliable door and window opening detection is becoming a key component of integrated security solutions. Milesight WS301 is a state-of-the-art device that perfectly meets the needs of smart installations.
Milesight WS301 is a compact and reliable magnetic reed sensor that monitors the opening and closing of doors or windows, effectively warning of intrusion attempts or unauthorized access.
With LoRaWAN technology support, the device enables data transmission over distances as short as 2 km in urban areas and up to 15 km in open spaces. The sensor is fully compatible with standard LoRaWAN network gateways and servers.
The device offers a tamper detection function - any attempt to disassemble it results in immediate notification of the administrator, which significantly increases the level of protection of sensitive zones.
WS301 features exceptionally easy installation with no wires to run and a long battery life of 4 to up to 7 years. This is ideal for users who value convenience and minimal maintenance.

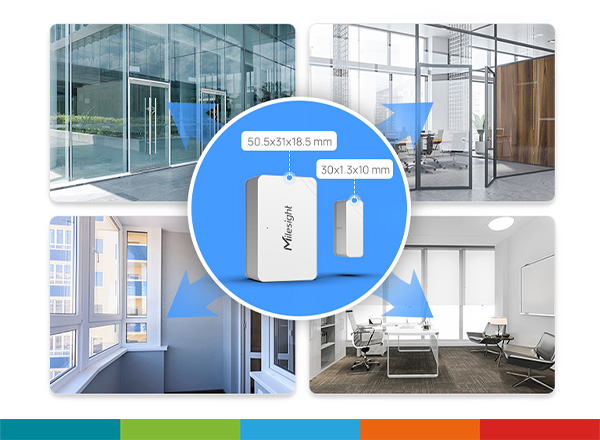

Thanks to its small size, the WS301 can be easily installed on most doors and windows, making it a versatile tool for securing both private and commercial spaces.
The sensor also works with the Milesight Smart Restroom Solution, which provides information on the state of cleanliness and hygiene in sanitary rooms - a perfect complement to modern Smart Building solutions.
The device supports Milesight D2D communication, enabling direct data exchange between Milesight devices without the need for a LoRaWAN gateway.
This is not only a reduction in implementation costs, but also a lightning-fast response - with a delay of less than one second.
 |
 |
 |
 |
| Lower delays | Response time less than 1 second | Save transmission | Reduce investment costs |
The intuitive Milesight ToolBox app, which uses NFC technology, is used to configure and launch the WS301. All you need to do is install the app, turn on NFC on your phone, bring the device close to the sensor, enter the password and start the setup - without wires or tools.
 |
 |
 |
| Step 1 | Step 2 | Step 3 |
| Instal Milesight ToolBox | Turn on NFC and launch ToolBox, then connect your phone to the device | Verify password and begin configuration |
An additional advantage is integration with the Milesight IoT Cloud platform, which provides access to an easy-to-read dashboard visualizing data, automatic operating scenarios with other Milesight sensors, regular reports, real-time notifications and mobile access via an Android and iOS app.
WS301 is available in 24 hours from our warehouse in Gliwice. We also offer full technical support at every stage of implementation - from consulting to configuration to integration with existing systems. If you are looking for a reliable, modern and easy-to-install security solution - WS301 is the choice you can rely on.
