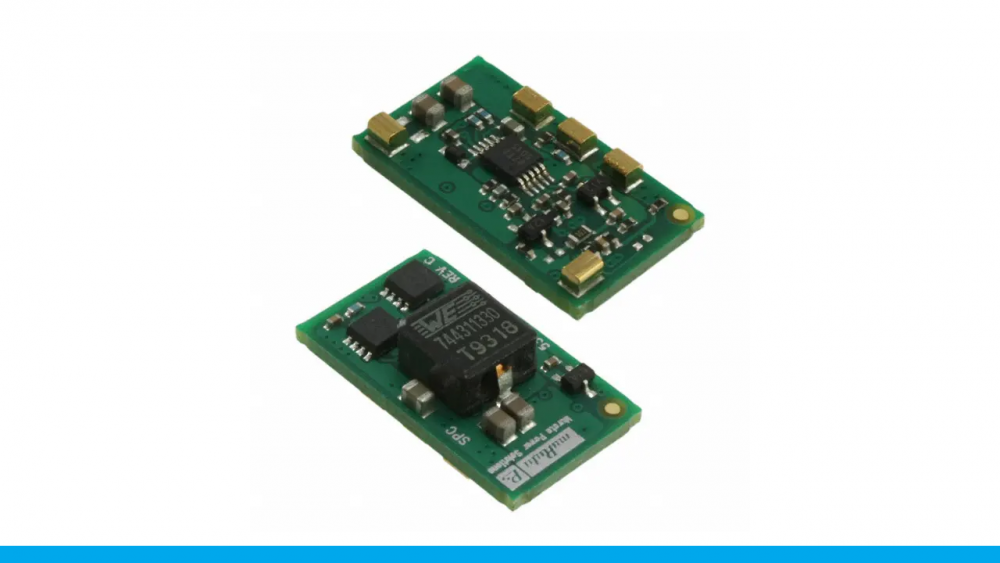

The OKY-T/3 and -T/5 series are miniature non-isolated Point-of-Load (POL) DC/DC power converters for embedded applications. The module is fully compatible with Distributed-power Open Standards Alliance (DOSA) industry-standard specifi cations (www.dosapower.com). Applications include powering CPU’s, datacom/telecom systems, programmable logic and mixed voltage systems. The wide input range is 8.3 to 14 Volts DC. Two maximum output currents are offered, 3 Amps (T/3 models) or 5 Amps (T/5 models). Based on fi xedfrequency synchronous buck converter switching topology, the high power conversion effi cient Point of Load (POL) module features programmable  output voltage and On/Off control. These converters also include under voltage lock out (UVLO), output short circuit protection, over-current and over temperature protections. These units are designed to meet all standard UL/EN/IEC 60950-1 safety and FCC EMI/RFI emissions certifi cations and RoHS-6 hazardous substance compliance.

Features:

• Non-isolated SMT POL DC/DC power module
• 8.3-14Vdc input voltage range
• Programmable output voltage from 0.7525-5.5Vdc
• 3 Amp (T/3) or 5 Amp (T/5) output current models
• Drives 1000 μF ceramic capacitive loads
• High power conversion effi ciency 93% at 3.3 Vout
• Outstanding thermal derating performance
• Over temperature and over current protection
• On/Off control
• UL/EN/IEC 60950-1 safety
• Industry-standard (DOSA) surface-mount package
• RoHS-6 hazardous substance compliance
