Are you looking for a modern HMI panel for industrial applications that combines performance, artificial intelligence, and resistance to harsh working conditions? Aplex responds to market needs with the AiTRON-9E series—advanced HMI panels that redefine process management in smart factories, industrial automation, and outdoor systems. This modern Aplex HMI panel has been designed for companies that focus on digitization, reliability, and real support for the Industry 4.0 concept.
The new AiTRON-9E HMI panel stands out with its ultra-thin design and edge-to-edge styling, which give it a modern look unprecedented in the industrial segment. Aplex has combined attractive design with typical industrial durability, making AiTRON-9E HMI panels ideal for production halls, industrial plants, and outdoor applications such as kiosks, operator terminals, and electric vehicle charging stations.
Each Aplex HMI panel is not only an operator screen, but also a full-fledged computing platform ready to support AI algorithms, real-time data analysis, and integration with IIoT and MES systems. The new generation of AiTRON-9E HMI panels has been designed for scalable implementations where operational stability and data security are as important as easy system integration.
At the heart of the new series are Intel Core Ultra 5 and Intel Core Ultra 7 processors, which bring artificial intelligence directly to the device. Each Aplex HMI panel is equipped not only with a powerful CPU, but also with advanced Intel Arc GPU graphics and a dedicated NPU unit for AI computing. This allows AiTRON-9E HMI panels to excel at image analysis, object recognition, real-time data processing, and machine learning-based applications.
Aplex has implemented Intel 4 architecture with a division into performance and energy-efficient cores, which allows for optimized energy consumption without losing computing power. Such an HMI panel can simultaneously support the operator interface, network communication, and AI algorithms – without the need for additional industrial computers.
The new Aplex HMI panel supports modern DDR5 memory with a frequency of 5600 MHz and offers support for up to 32 GB of RAM. The M.2 2280-based disk system allows the use of fast SSD media, which significantly increases the responsiveness of the entire system.
The fanless design means that AiTRON-9E HMI panels do not require regular maintenance, and the absence of fans eliminates the risk of failures related to dust and dirt. Thanks to this, the HMI panel from Aplex can operate stably even in harsh industrial conditions – with high humidity, dust, or vibrations.
Each AiTRON-9E HMI panel is equipped with a rich set of communication interfaces. The standard includes USB 3.2 ports, a COM connector, HDMI, DisplayPort, and two 2.5GbE network ports. Aplex also allows you to expand the configuration with additional serial connectors, USB ports, or a power button, so that HMI panels can be perfectly tailored to a specific application.
In terms of wireless communication, the Aplex HMI panel supports Wi-Fi, Bluetooth, LTE, and 5G via M.2 slots and a Nano-SIM card. This solution enables panel integration with IIoT systems, remote service access, production monitoring, and data transfer to the cloud without the use of cable infrastructure.
The new Aplex HMI panels are designed to operate at temperatures ranging from -20°C to +60°C. The aluminum housing and IP66-rated front panel guarantee resistance to water, dust, and harsh environmental conditions. Optional displays with a brightness of up to 1500 nits ensure excellent readability even in direct sunlight.
Aplex has also used optical bonding and anti-reflective, anti-glare, and anti-UV coatings, thanks to which each HMI panel retains excellent readability for many years of use.
The rear heat sink design supports natural cooling and enables stable operation even in variable climatic conditions.
AiTRON-9E HMI panels support both panel mounting and VESA standard, allowing for easy installation in control cabinets, on walls, masts, and free-standing structures.

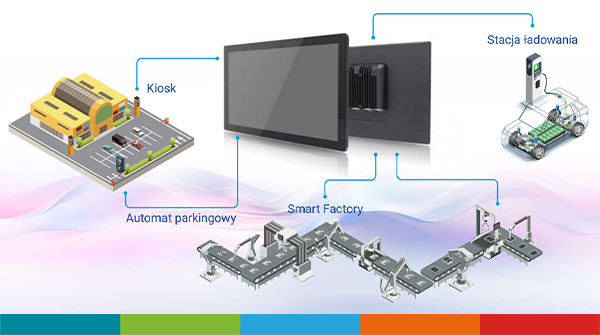

This makes the Aplex HMI panel ideal for industrial automation, transportation systems, production lines, points of sale, and electric vehicle charging infrastructure.
The AiTRON-9E series shows that a modern HMI panel is no longer just an operator screen, but a full-fledged edge computer with AI capabilities. Aplex HMI panels combine intelligence, durability, and configuration flexibility, offering a solution ready for the needs of the industry of the future.
If you are looking for an advanced HMI panel that delivers high performance, reliability, and a modern look, the Aplex AiTRON-9E is the solution designed for modern manufacturing facilities and next-generation technical infrastructure.
