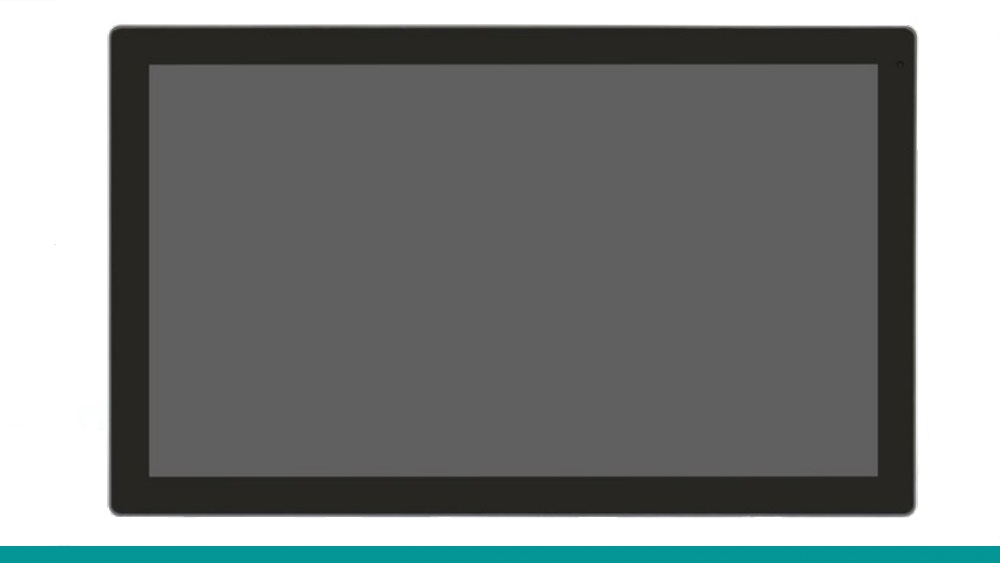

The AiTRON‑921EP(H) is a high-performance industrial HMI panel designed for demanding B2B applications. It features a 21.5″ Full HD (1920 × 1080) display with projected capacitive (PCAP) touch technology and is powered by Intel Core Ultra 5 or Ultra 7 processors. This model is ideal for industrial automation, production line control, and advanced process monitoring systems.

Key Features

• Display: 21.5″ TFT-LCD, Full HD 1920 × 1080
• Touch: projected capacitive (PCAP)
• Brightness: standard 250 cd/m²; high brightness up to 1000 cd/m²
• Processor: Intel Core Ultra 5 or Intel Core Ultra 7
• Memory: 1 × DDR5‑5600 MHz SO-DIMM, expandable up to 48 GB
• Security: TPM 2.0 module

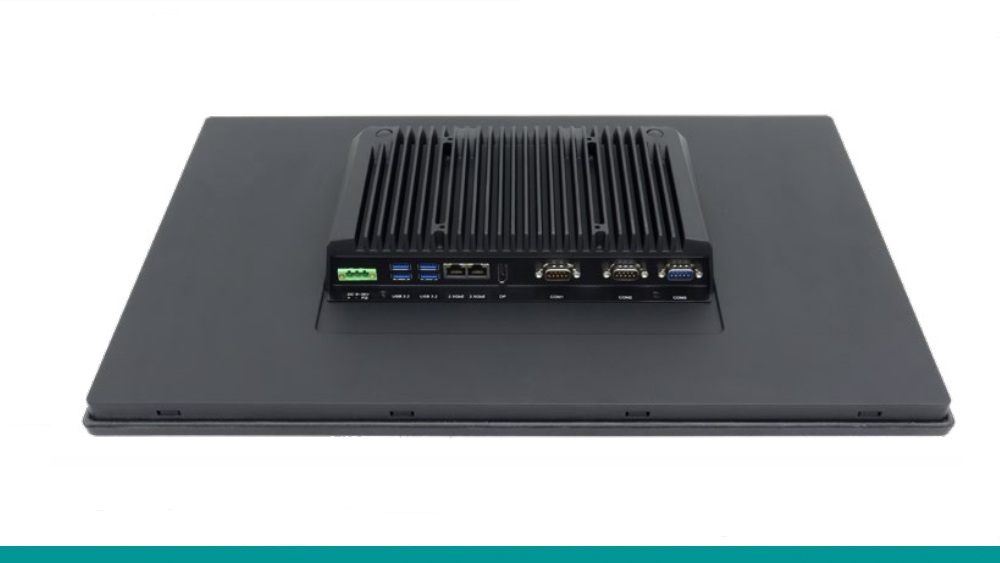

• Interfaces:
  • 1 × DisplayPort 1.4
  • 1 × HDMI 2.1
  • 2 × RJ‑45 2.5 GbE (Wake-on-LAN supported)
• Serial Ports:
  • COM1: DB9, RS‑232/422/485 (default RS‑232)
  • COM2: DB9, optional RS‑232/422/485
  • COM3: DB9, optional RS‑232
• USB Ports: 4 × USB 3.2 Gen1 Type-A, 2 × USB 2.0 Type-A (optional)
• Expansion Slots:
  • M.2 2280 M-Key (PCIe 3.0 ×4)
  • M.2 2230 E-Key (USB2.0/PCIe ×1) for optional WiFi/BT
  • M.2 3402/3052 B-Key (PCIe ×1/USB3.2 Gen1/USB2.0) for optional LTE/5G
  • Nano-SIM slot
• Front Panel: die-cast aluminum, IP66-rated
• Power Supply: DC 9 – 36 V (with adapter)
• Mounting: panel mount or VESA 100 × 100
• Dimensions: 592.6 × 321.3 × 65.5 mm; weight approx. 2.74 kg
• Operating Conditions: 0 °C to 50 °C; storage ‑10 °C to 60 °C; 10–95 % RH at 40 °C, non-condensing
• Certifications: CE/FCC, Class A
• OS Support: Windows 10 IoT Enterprise 2021 LTSC or newer, Windows 11 (21H2) or later, Linux 24.04

B2B Applications

The AiTRON‑921EP(H) is suitable for modern industrial environments, process automation, production lines, and control/visualization systems in industries such as automotive, pharmaceuticals, logistics, energy, and infrastructure. High-brightness display (up to 1000 cd/m²) ensures readability under strong ambient light, and robust IP66 front panel provides durability in harsh industrial conditions.

Why Choose AiTRON‑921EP(H)?

• Integrated solution: high-performance Intel Core Ultra processor reduces implementation costs
• Flexible connectivity: multiple interfaces for EtherNet/IP, Modbus, and peripheral devices
• Future-proof expansion: M.2 slots for WiFi/BT and LTE/5G modules
• Durability and reliability: aluminum enclosure, IP66, wide power and operating ranges
• Industrial OS compatibility: easy integration with SCADA, MES, and IIoT solutions
