Key Features and Applications

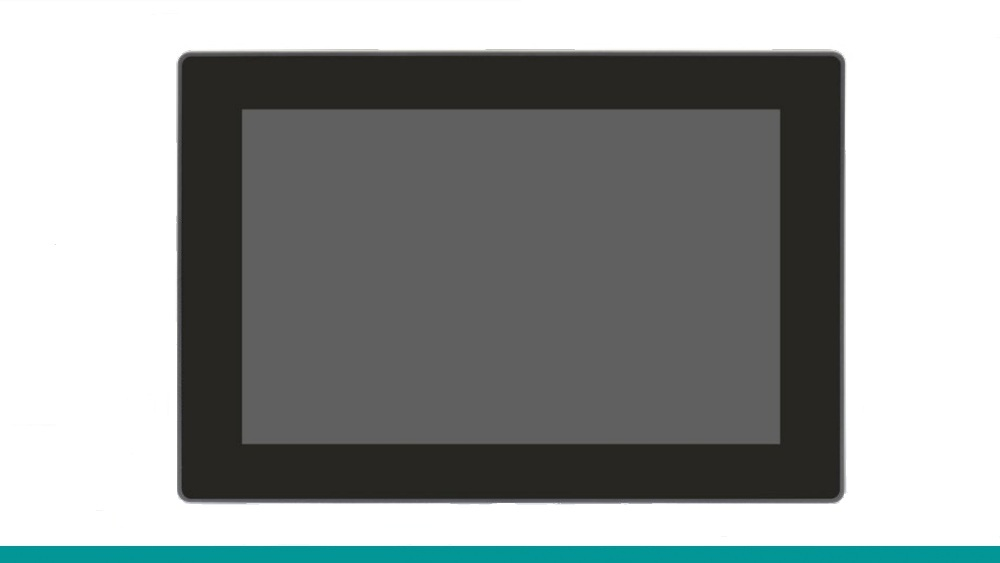

The AiTRON-916EP is a 15.6-inch barebone HMI panel designed for industrial applications. It combines high performance with extensive I/O options and a robust construction suitable for harsh environments. The device is powered by Intel Core Ultra 5/7 processors with an integrated SoC, delivering the computing power required for industrial-grade HMI applications.

The panel features a Full HD (1920 × 1080) 15.6″ display, available in a High Brightness version (up to 1,000 cd/m²) with projected capacitive (PCAP) touch.

Power input ranges from 9 to 36 V DC. The chassis is made of die-cast aluminum, and the front panel meets IP66 standards, ensuring industrial durability.

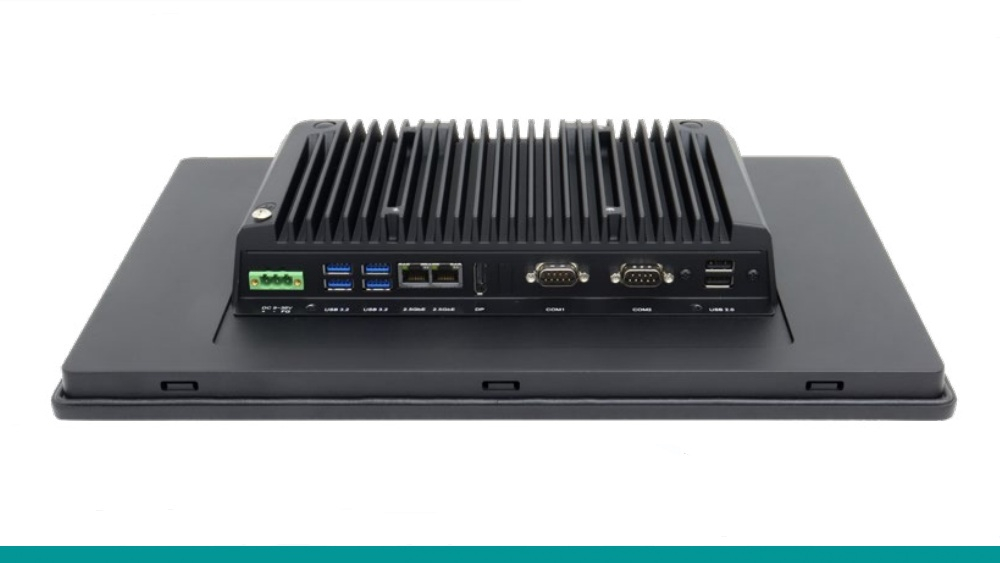

AiTRON-916EP offers extensive connectivity: 2 × 2.5 GbE RJ-45 (with Wake-on-LAN), DisplayPort 1.4 and HDMI 2.1 for video output, DB9 serial interfaces (RS-232/422/485), and M.2 expansion slots: 2280 M-Key (PCIe 3.0 ×4), 2230 E-Key (optional Wi-Fi/BT), and 3042/3052 B-Key (optional LTE/5G with nano-SIM). This makes it ready for advanced IoT/OT and edge computing applications.

The panel supports DDR5-5600 SO-DIMM memory (up to 48 GB) and includes a TPM 2.0 module for enhanced security.

Benefits

• 15.6″ FHD touch display with High Brightness option – ensures visibility even in bright industrial lighting
• High-performance Intel Core Ultra processor and DDR5 support – ideal for advanced HMI applications, visualization, and real-time data analytics
• Extensive connectivity – 2.5 GbE LAN, RS-232/422/485, Wi-Fi/BT, and LTE/5G – fully integrates with IT/OT systems and industrial IoT
• Industrial-grade construction – die-cast aluminum chassis, IP66 front panel, 9–36 V DC power supply – reliable in demanding environments
• Barebone format – allows installation of custom software and operating systems (Windows 10 IoT Enterprise 2021 LTSC, Windows 11 21H2, or Linux 24.04)

Typical Applications

• HMI terminals for production lines and industrial automation
• Process visualization in SCADA/MES systems
• Device monitoring and control in energy and infrastructure facilities
• IoT/OT and Industrie 4.0 applications – as operator terminals or communication gateways
• Utilities and heavy industry deployments requiring durable, reliable operator interfaces

Technical Specifications (Selected)

• Display: 15.6″ TFT-LCD, 1920 × 1080 (FHD)
• Brightness: 500 cd/m² / 1,000 cd/m² (High Brightness)
• Touch: Projected Capacitive (PCAP)
• Processor: Intel Core Ultra 5/7 (SoC)
• Memory: 1 × DDR5-5600 SO-DIMM, up to 48 GB
• Video Outputs: DisplayPort 1.4, HDMI 2.1
• Networking: 2 × RJ-45 2.5 GbE (Wake-on-LAN)
• Serial Ports: DB9 RS-232/422/485 (COM2 and COM3 optional)
• Expansion: M.2 2280 M-Key (PCIe 3.0 ×4), M.2 2230 E-Key (optional Wi-Fi/BT), M.2 3042/3052 B-Key (optional LTE/5G) + nano-SIM
• Power Supply: 9–36 V DC
• Enclosure: Die-cast aluminum, IP66 front panel, panel/VESA 100 × 100 mount
• Dimensions: 396.3 × 245.7 × 64 mm; weight: ~3.49 kg
• Operating Temperature: -20 ~ 60 °C (standard) / 0 ~ 50 °C (High Brightness)
• Operating Systems: Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 21H2 or later, Linux 24.04

Why Choose AiTRON-916EP?

AiTRON-916EP is an ideal solution for B2B customers seeking a high-performance HMI panel with advanced connectivity and rugged industrial design. The high-brightness display ensures visibility in any environment, while the aluminum chassis and wide power input guarantee reliable operation in demanding industrial conditions. This makes AiTRON-916EP a comprehensive terminal for automation, production, and IoT/OT applications, combining modern design with industrial-grade performance.
