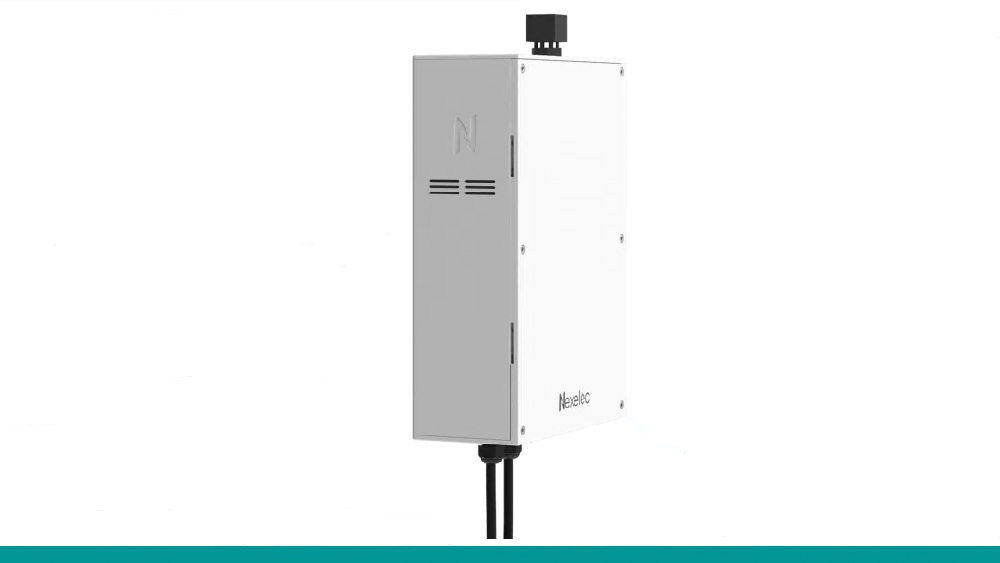

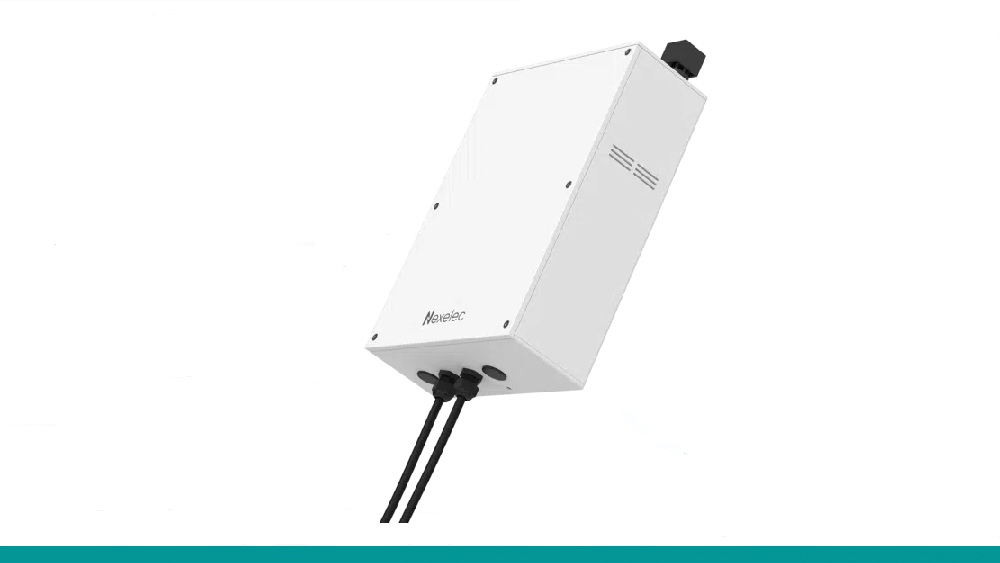

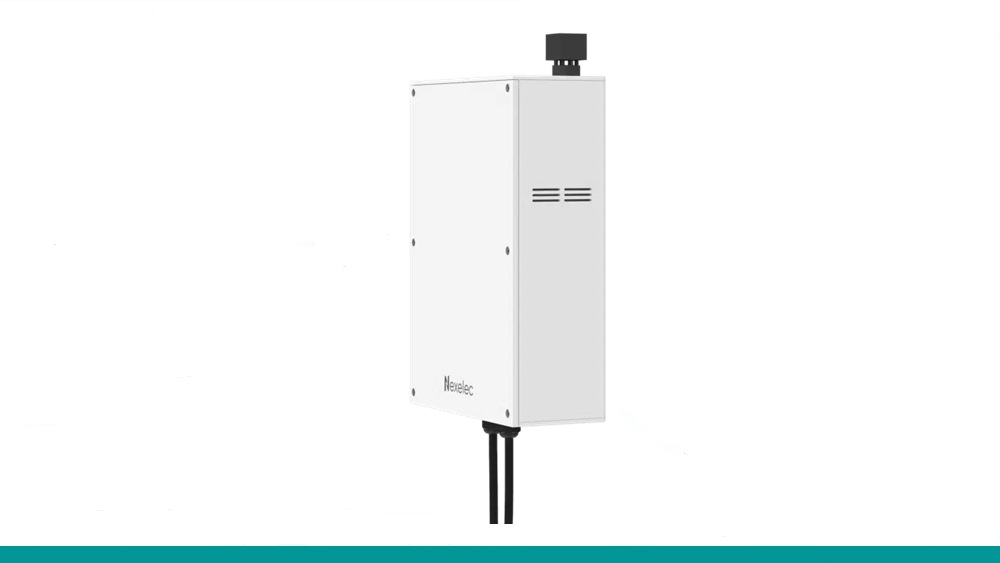

X950LS‑TRACK is an industrial outdoor air quality monitoring station, designed for continuous measurement of particulate matter and environmental parameters in harsh conditions. The device measures particulate matter (PM0.5, PM1, PM2.5, PM5, PM10) as well as basic climatic parameters: temperature, humidity, and atmospheric pressure.

The station features a modular design with 5 BLOCK slots, allowing for expansion with additional sensors according to measurement needs. Data can be transmitted wirelessly via LoRaWAN or 4G LTE, and the built-in GPS records the location of measurements.

The device is suitable for outdoor operation, featuring a 360° air intake system, air sample heating for accurate readings, insect protection, and a weatherproof enclosure. Mounting is possible on a wall or pole, with optional AC, battery, or solar power.

Key features:

• Measurement of PM0.5–PM10 (mass and particle count)
• Measurement of temperature, humidity, and atmospheric pressure
• Modular design for additional sensors
• LoRaWAN or 4G LTE communication, built-in GPS
• Outdoor-ready, AirFlow 360°, weather-resistant

Technical highlights:

• PM: 0–1000 µg/m³ (mass), 0–3000 pcs/cm³ (count), repeatability <3%, linearity <5%
• Temperature: –30 °C ~ +70 °C, accuracy ±0.3 °C
• Humidity: 0–100% RH, accuracy ±2% RH
• Atmospheric pressure: 300–1100 hPa, accuracy ±2.5 hPa
• Power supply: AC 110–230 V, DC 5–35 V, Li-ion LFP 100 Wh battery, optional solar
• Mounting: wall or pole
• Operating conditions: –20 °C ~ +60 °C, humidity 0–95% RH
