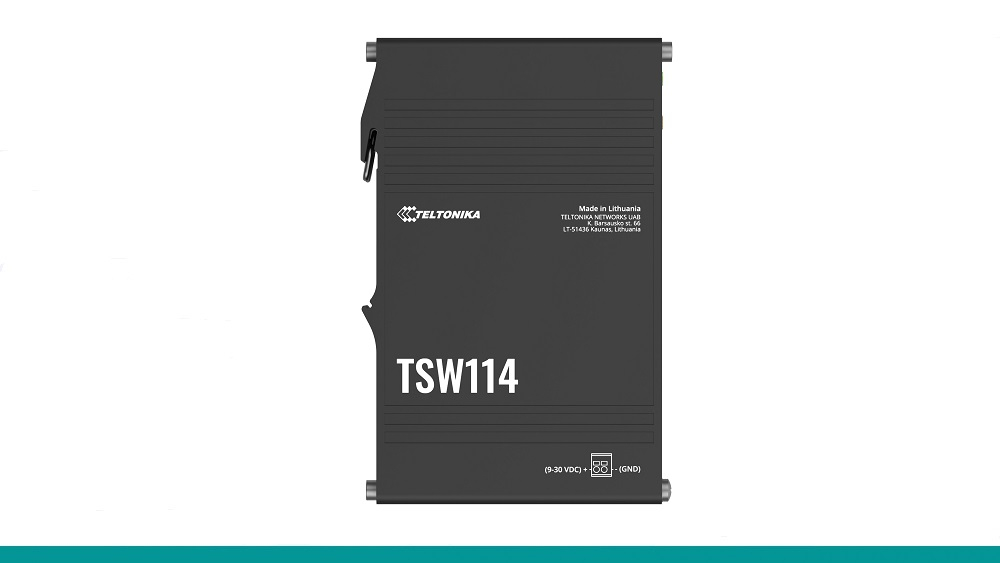

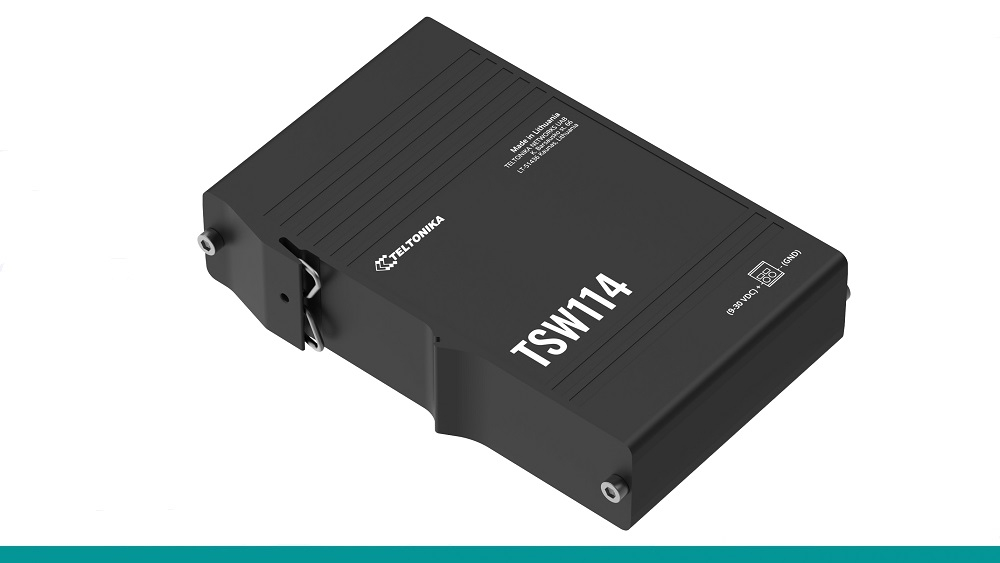

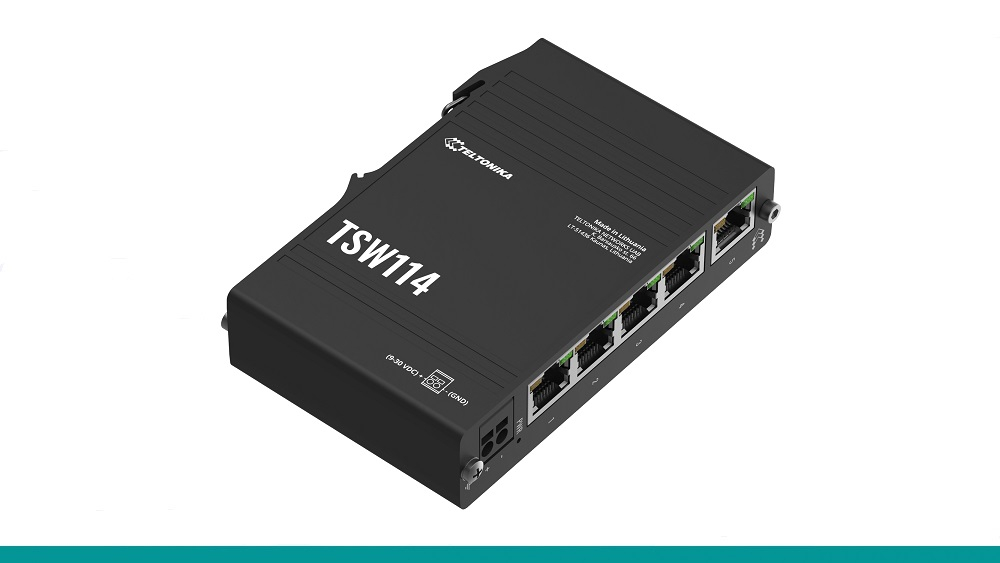

TSW114 - 5-port industrial Ethernet switch with passive PoE

The TSW114 is a compact Ethernet switch with 5 Gigabit Ethernet ports (10/100/1000 Mbps), designed for industrial applications and professional network installations. The device supports high-bandwidth data transmission and, thanks to its robust aluminium housing, is ideal for demanding environmental conditions.

The TSW114 offers the possibility to be powered via the Ethernet port (ETH1) using passive PoE in B-mode (voltage 9-30 VDC), which simplifies installation in areas with limited access to power supply. However, it should be noted that this solution is not compliant with IEEE 802.3af, 802.3at or 802.3bt standards, making it ideal for systems using their own non-standard PoE power supply.

Key features:

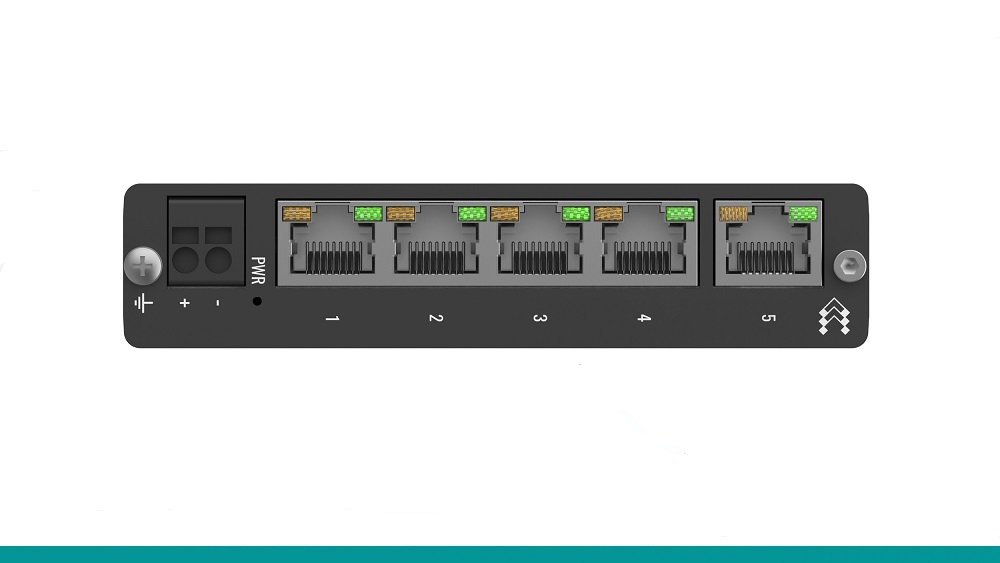

• 5 Gigabit Ethernet ports (10/100/1000 Mbps)
• compact, industrial design with aluminium housing
• power supply: 9-30 VDC (power socket or ETH1 with passive PoE)
• power supply via Ethernet port (Mode B), not compliant with IEEE standards

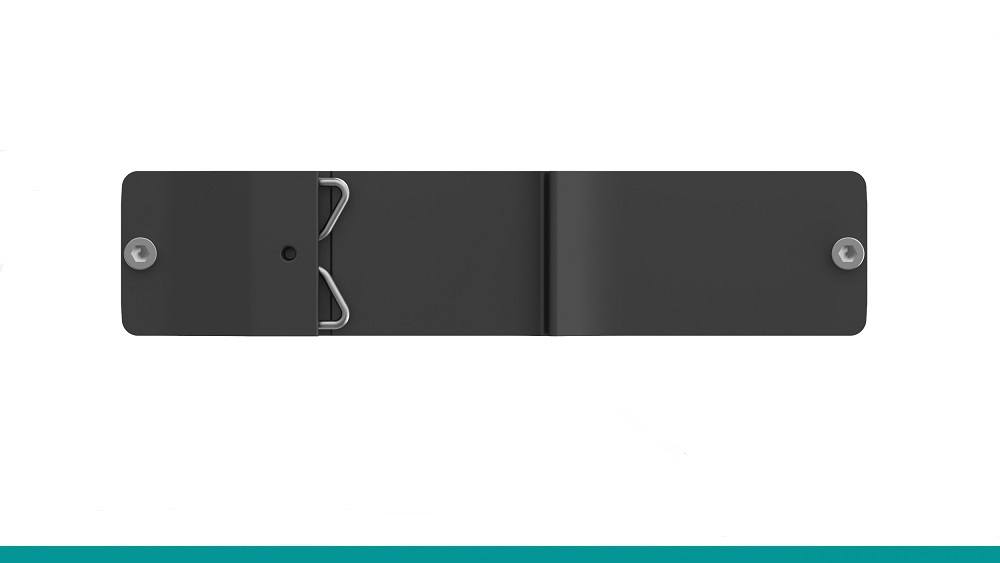

• DIN rail or wall mounting

The TSW114 is particularly suitable for industrial environments, automation, monitoring systems and anywhere where stable and fast network connectivity and flexibility in the way devices are powered are required.
