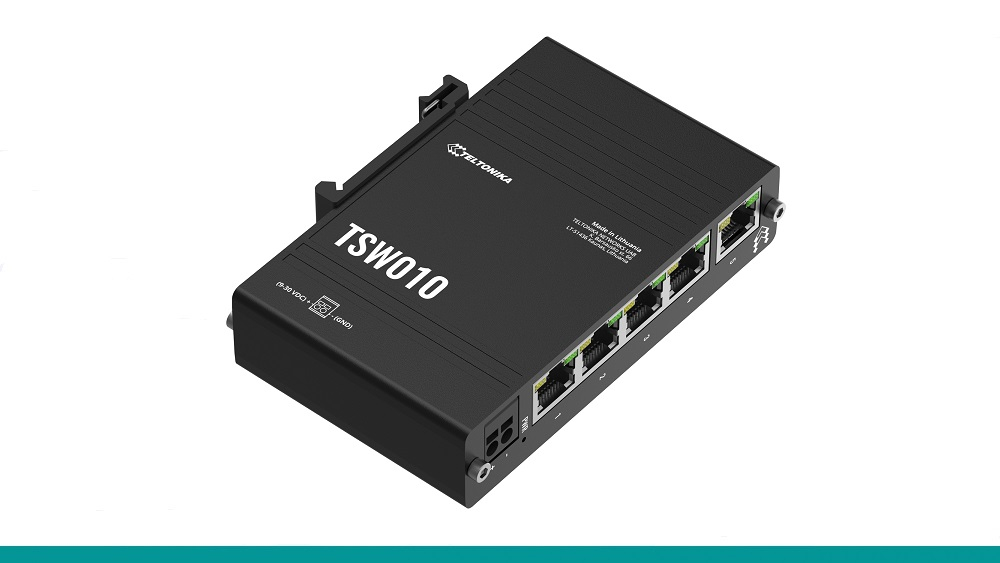

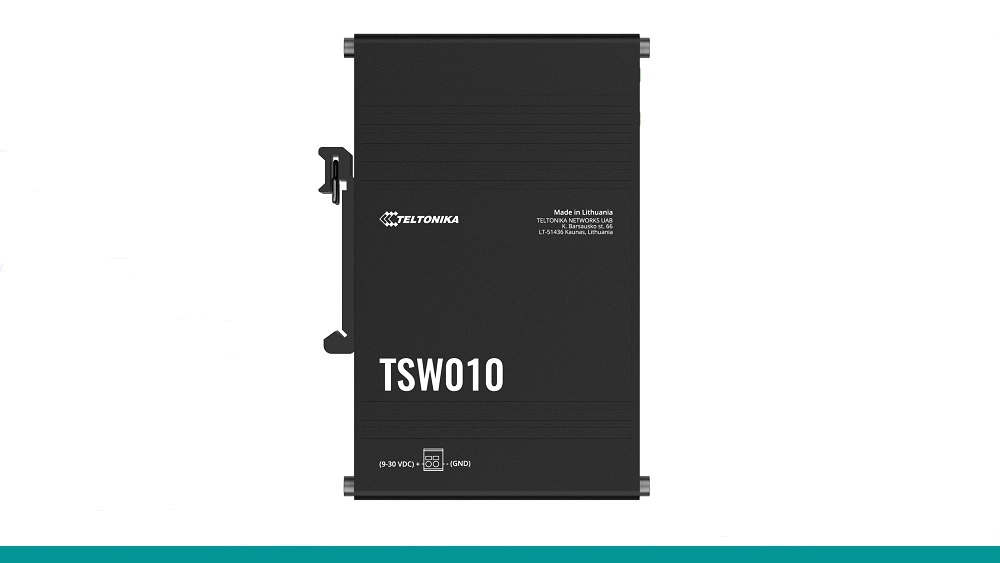

Teltonika TSW010 - 5×10/100 Mbps plug-and-play industrial Ethernet switch

The TSW010 is an unmanaged Ethernet switch designed for fast and seamless expansion of the network infrastructure. Thanks to its plug-and-play design, no configuration is required, making it an ideal choice for simple industrial applications. The aluminium housing, low power consumption and wide operating temperature range ensure reliability in demanding environments.

Key features

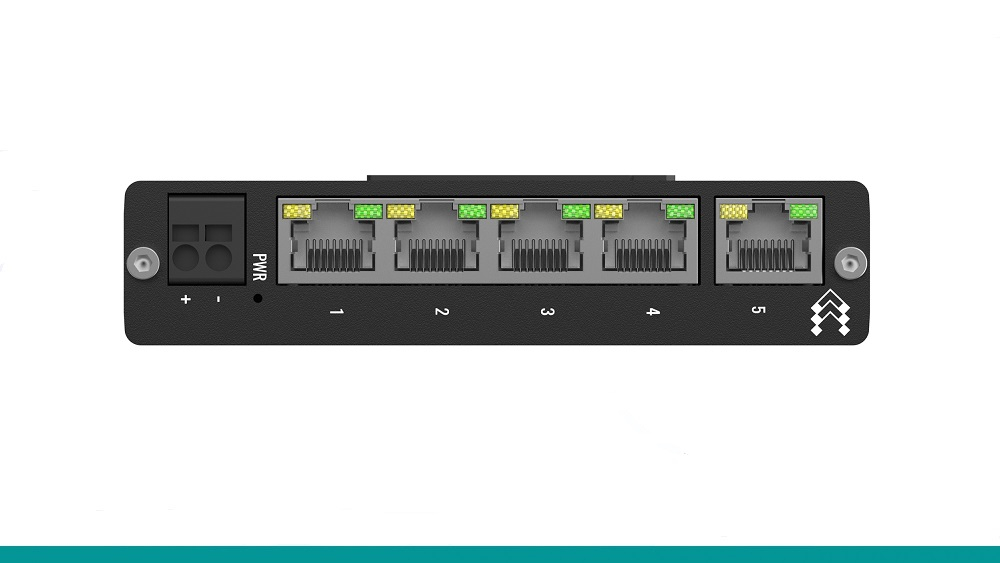

• 5 10/100 Mbps Ethernet ports with auto MDI/MDIX function
• compliant with IEEE standards: 802.3i/u/x/az
• plug-and-play design - no configuration necessary
• optional Profinet Class A compatibility
• passive PoE via ETH1 port (9-30 V DC, Mode B)
• robust case in anodised aluminium

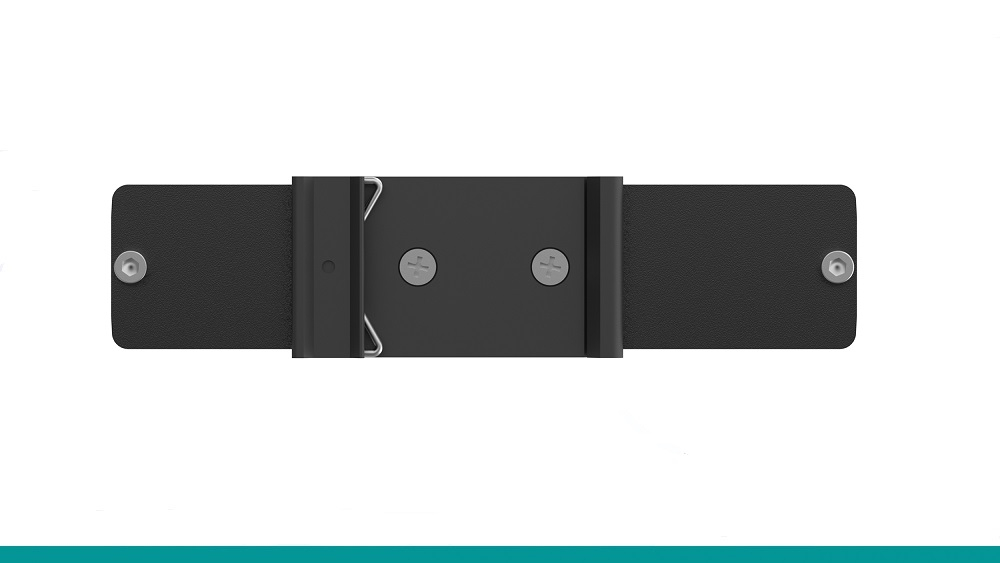

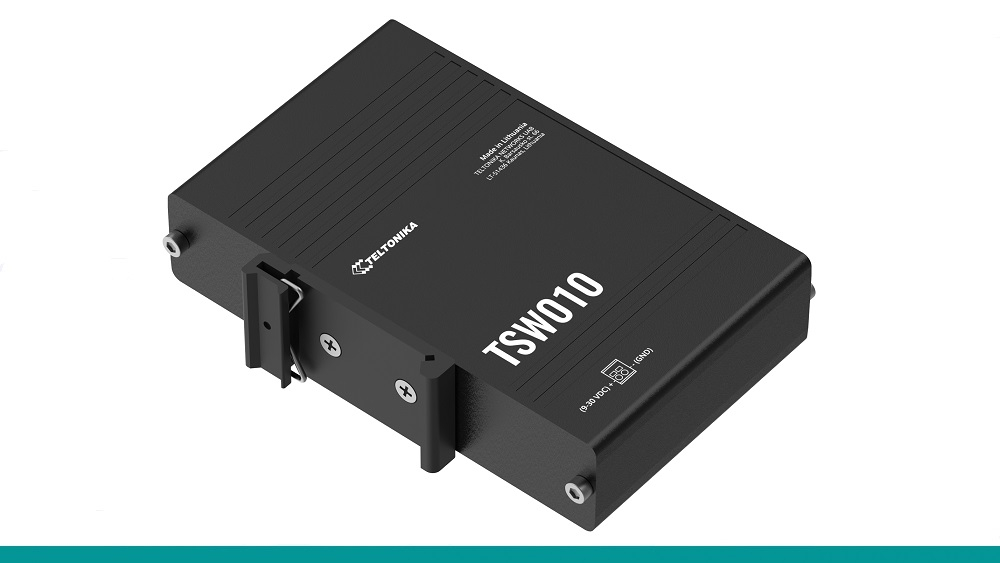

• built-in DIN rail + flat mounting options

Technical specifications

• throughput: 1 Gbps (non-blocking)
• MAC table: 2048 entries
• jumbo frames: up to 2048 bytes
• dimensions: 113,1 × 27,4 × 80,5 mm
• weight: 146.5 g
• power consumption: 0.3 W (idle) / 0.9 W (max.)
• operating temperature: -40°C to +75°C
• degree of protection: IP30

Application

• rapid expansion of networks in industrial installations
• cost-effective solution for simple Ethernet applications
• environments with limited installation space (e.g. DIN enclosures)
