relays

SIF42224VDC
Manufacturer's P/N:
Manufacturer: ELESTA Relays GmbH

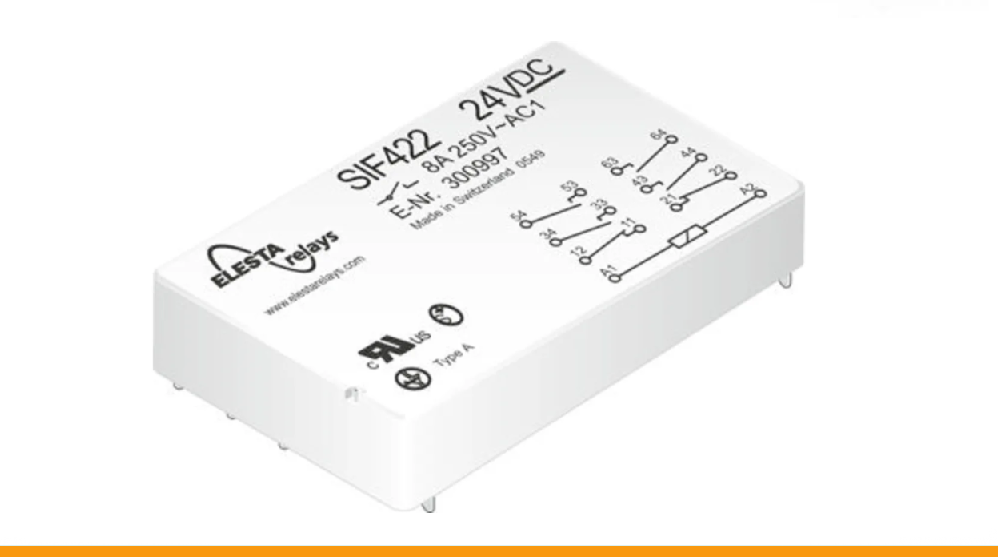

PCB relay ELESTA 24VDC 10% 4NO+2NC SIF422 series
Typeelektromechaniczny
Coil voltage24VDC
Contact current8A
Switching voltage250VAC
Contacts description4NO+2NC
Standard packaging:
1 pcs.

Minimum order:
1 pcs.

Minimum batch:
1 pcs.

In stock:
Ask

The SIF 422 is a six-pole relay with forcibly guided contacts according to IEC 61810-3 in an extremely flat design (10.9 mm) which is characterized by its wide switching current range. In addition components can be fitted under the relay.

Features:

  • protective separation between coil and contacts (>5,5 mm) and contacts side by side (>5,5mm)
  • IEC 61810-3 Type A
  • double and reinforced insulation
  • SMD placement under relay possible

Specification:

  • switching current: 3mA - 8A
  • nominal coil power: 660mW
  • test voltage (rms): 4000V
