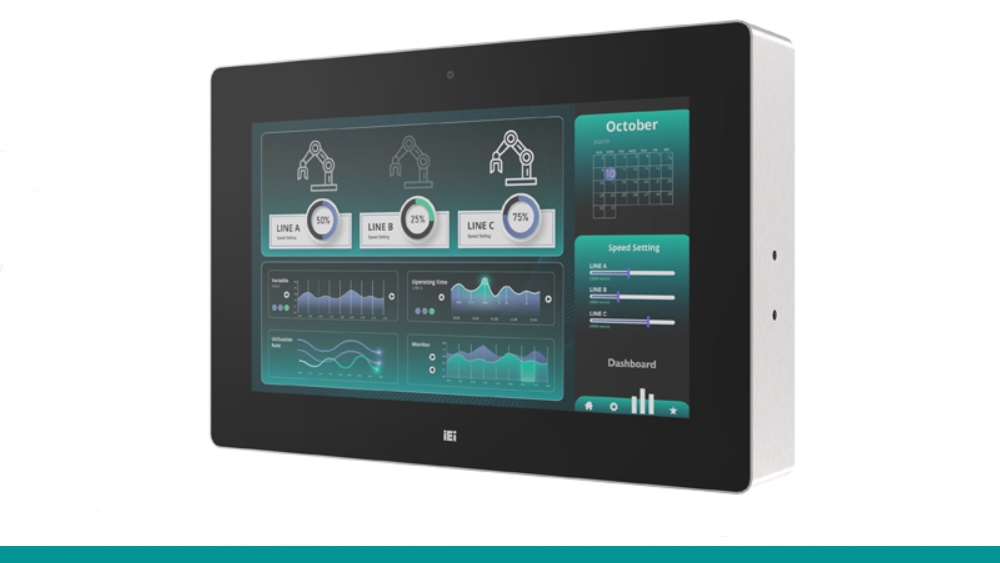

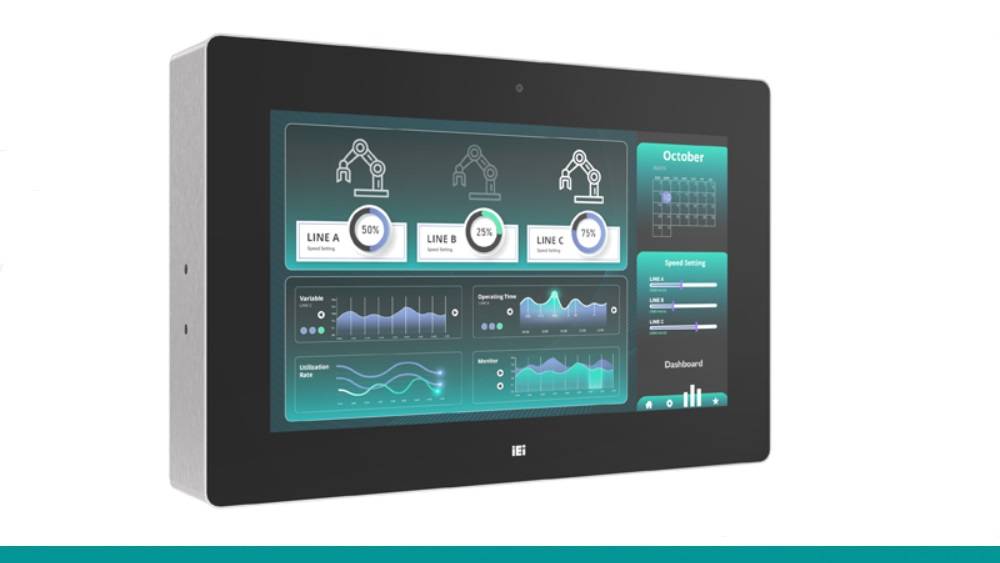

The SHIELD-185-R3C-R10 is a rugged, fanless industrial panel PC featuring a 18.5" Full HD display and a fully enclosed SUS 304 stainless steel chassis, engineered for hygiene-critical and harsh environments such as food & beverage, cold storage, pharmaceutical, and biotech industries. With IP66-rated protection and robust M12/M20 waterproof connectors, it withstands high-pressure washdowns and resists corrosion, making it ideal for environments requiring strict sanitation.

Key Features

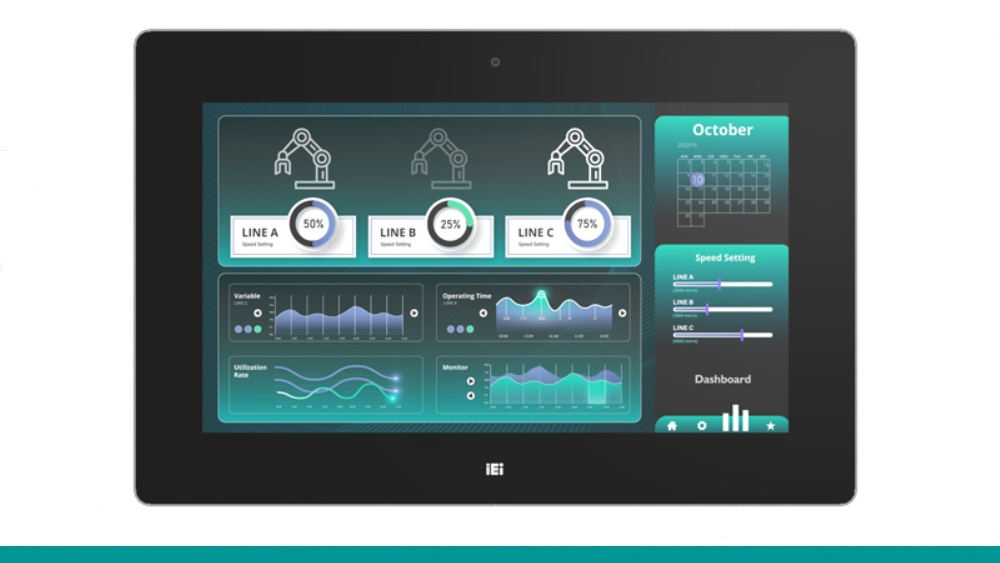

• 18.5” Full HD Display – 1920×1080 resolution, 500 cd/m² brightness, wide 178° viewing angle, and scratch-resistant 7H surface.
• Projected Capacitive Multi-touch (10-point) – Operable with gloves and in wet conditions; features anti-glare and anti-UV coating for enhanced readability.
• Intel® Atom® x7433RE Processor – Efficient quad-core CPU from the Amston Lake (Gracemont) family, TDP of 9 W, supports AI inference and Intel® Time-Coordinated Computing (TCC) for real-time deterministic performance.
• DDR5-4800 SO-DIMM Memory – Pre-installed with 8 GB ECC RAM, expandable up to 16 GB.
• Wide Operating Temperature – Reliable performance from –30 °C to +55 °C, ideal for cold-chain or heat-prone environments.

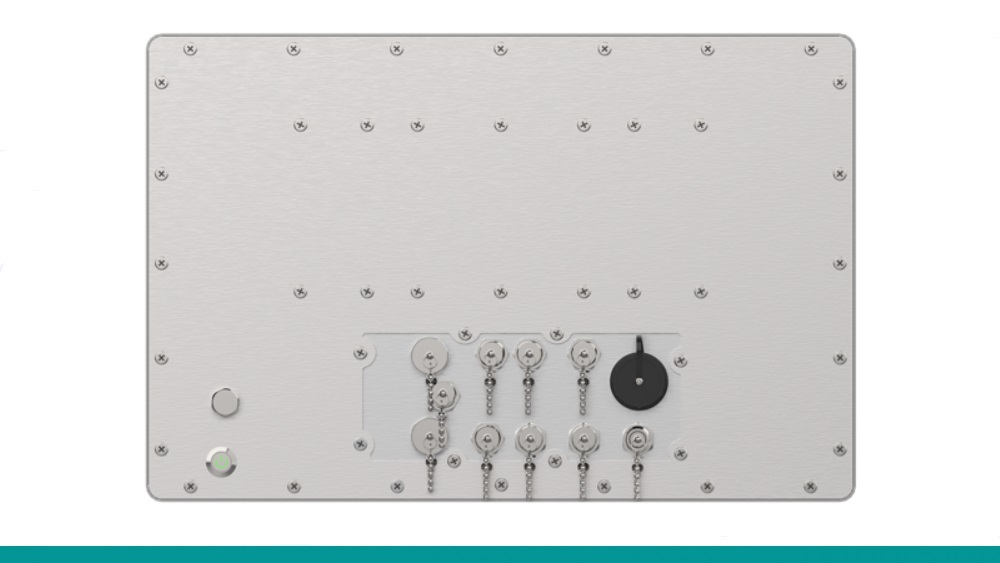

• True IP66 Protection – Fully sealed stainless housing with waterproof M12 I/O connectors for maximum protection against water, dust, and aggressive cleaning.

Computing & Connectivity

• Graphics: Intel® UHD Graphics (integrated), supporting HDMI 1.4b output up to 4K resolution.
• LAN: 2 × 2.5GbE (Intel® I226-IT), ideal for high-speed and redundant network connections.
• I/O Ports (via M12/M20 Connectors):
  • 1 × HDMI
  • 1 × USB 3.2 Gen 2
  • 1 × USB 2.0
  • 1 × RS-232
  • 1 × RS-232/422/485 (2kV isolation)
  • 1 × CAN-bus (2kV isolation)
  • 1 × 8-bit Digital I/O (2kV isolation)

Expansion & Storage

• M.2 Slots:
  • 1 × M-Key 2280 (PCIe Gen 3 x2) for NVMe SSD
  • 1 × M-Key 2242/2280 (PCIe Gen 3 x1 + SATA)
  • 1 × B-Key 3052/3080 (PCIe Gen 3 x1 + USB 3.0) – suitable for 5G/4G modules
• SIM Slot: Supports nano-SIM for mobile connectivity.
• Optional Wi-Fi/Bluetooth Module: Support for Wi-Fi 6E and Bluetooth 5.2 via M.2 E-Key.

Power & Reliability

• Power Input: Wide range 10–28 V DC (screw-lock terminal block), suitable for industrial and mobile applications.
• Certifications: CE/FCC Class A compliance.
• Humidity Resistance: 10–90% (non-condensing).
• Shock Protection: MIL-STD-810G compliant for rugged reliability.

Mounting & Mechanical Design

• Mounting Options:
  • Yoke Mount – Ergonomic tilt-and-rotate support arm
  • VESA 100 x 100 – Flexible panel or wall mounting
• Chassis Material: Full-body SUS 304 stainless steel – corrosion-resistant and easy to disinfect.
• Dimensions: 494.4 × 312 × 80 mm
• Weight: 9.1 kg (net)

Package Contents

• SHIELD-185-R3C-R10 panel PC
• Power cable
• USB 2.0 cable
• Ethernet cable
• Quick Installation Guide

Typical Applications

• Food & beverage manufacturing – Washdown-capable with full IP66 and stainless design
• Cold storage and meat processing plants – Operates reliably in sub-zero temperatures
• Pharmaceutical and biotech labs – Easy-to-clean, bacteria-resistant chassis
• Factory automation and HMI – AI-ready performance with rich I/O and rugged construction
• Edge computing and smart manufacturing (IIoT/Industry 4.0) – Secure, connected, and expandable system for intelligent data collection
