Multi-Constellation, Multi-Frequency Positioning GNSS

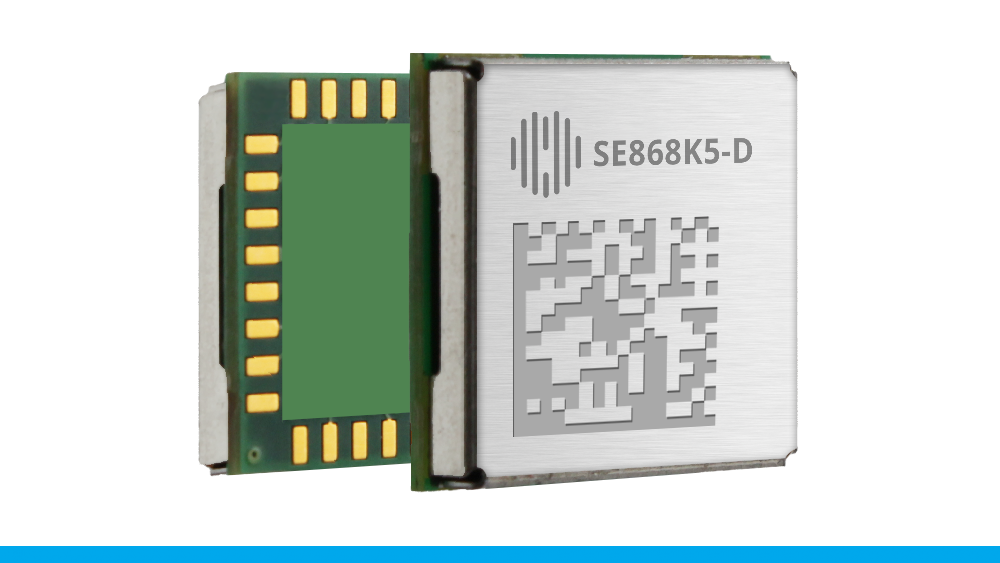

The SE868K5-D is a multifrequency and multiconstellation positioning receiver module and a member of the xE868 Telit Cinterion form factor family. Using two frequencies (i.e., L1/E1 and L5/E5) enhances location accuracy and reduces multipath effects in urban areas. This module can navigate down to -165 dBm and proved optimal performance in harsh environments. It improves position reporting and navigation solution performance by combining:

• GPS/QZSS and Galileo in the L1/E1 and L5/E5 bands
• GLONASS in the L1 band
• BeiDou in the B1 and B2 bands
• satellite-based augmentation systems (SBAS)

Product Features:

• 32-pad QFN-like package
• Frequency bands: GPS/QZSS L1 + L5, Galileo E1 + E5, GLONASS L1, BeiDou B1 + B2
• 75 (L1-band) / 60 (L5-band) tracking channels
• Standards: NMEA/RTCM
• Jamming rejection
• Low power modes
• A-GNSS: Self-generated prediction and ephemeris file injection
• Up to 10 Hz update rate
• Telit proprietary PTWS commands
• EGNOS, WAAS, GAGAN and MSAS capability embedded with positional error correction for augmented accuracy and integrity
• Embedded SAW for optimal coexistence and LNA for improved performance
• Raw measurements output in RTCM format for high-accuracy applications

Certifications:

• RoHS compliant
• RED and UKCA approvals*

Environmental specification:

• dimensions: 11 x 11 x 2.8 mm
• weight: 1 g
• temperature range:
  • operating temperature: -40° C to +85° C
  • storage temperature: -40° C to +85° C

Power Supply:

• from 1.72 V up to 1.89 V

Power consumption*: L1 + L5, full power, 1 Hz at 1.8V

• acquisition: 54 mW (G3BQ)
• tracking/Navigation: 59 mW (G3BQ)
• RTC mode: 36 uW (typical)

Sensitivity: L1 + L5

• acquisition: -146 dBm
• tracking/Navigation: -165 dBm

Horizontal position accuracy:

• CEP50: <1m

Time To First Fix (90%@ -130dBm):

• hot start: 1 s
• warm start: 18 s
• cold start: 28 s

Software features & drivers:

• PTWS commands
• raw measurements (RTCM MSM4, MSM7)
• configuration settings saved on NVM
• multiple use-modes
• FW upgradable
• locally generated predictions
• server-generated predictions
• RTCM v2.3 input
