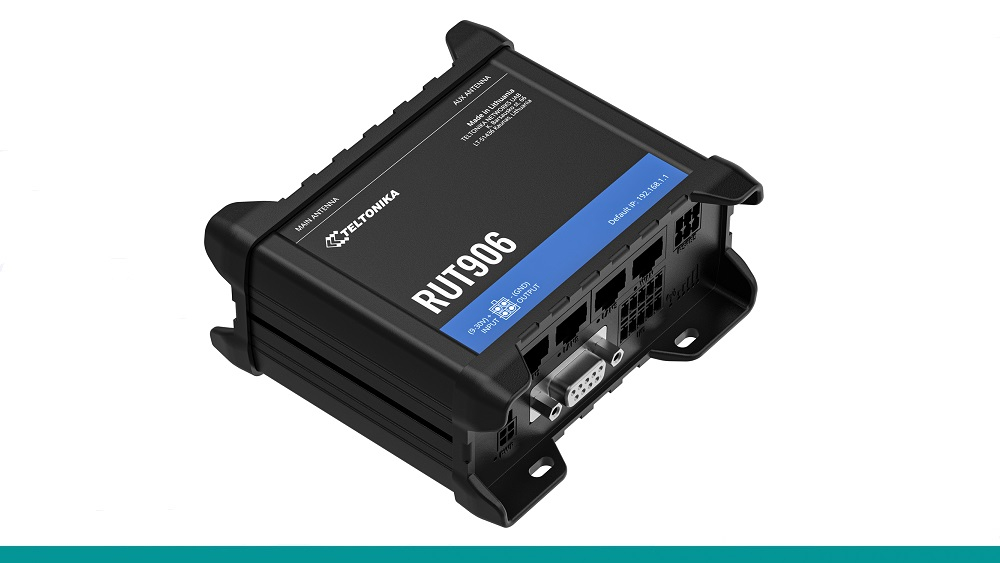

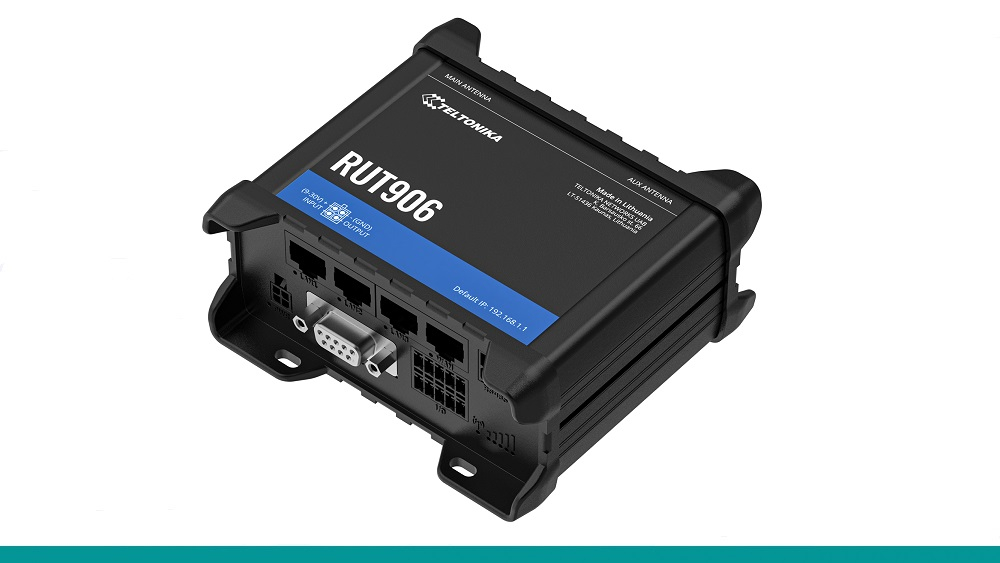

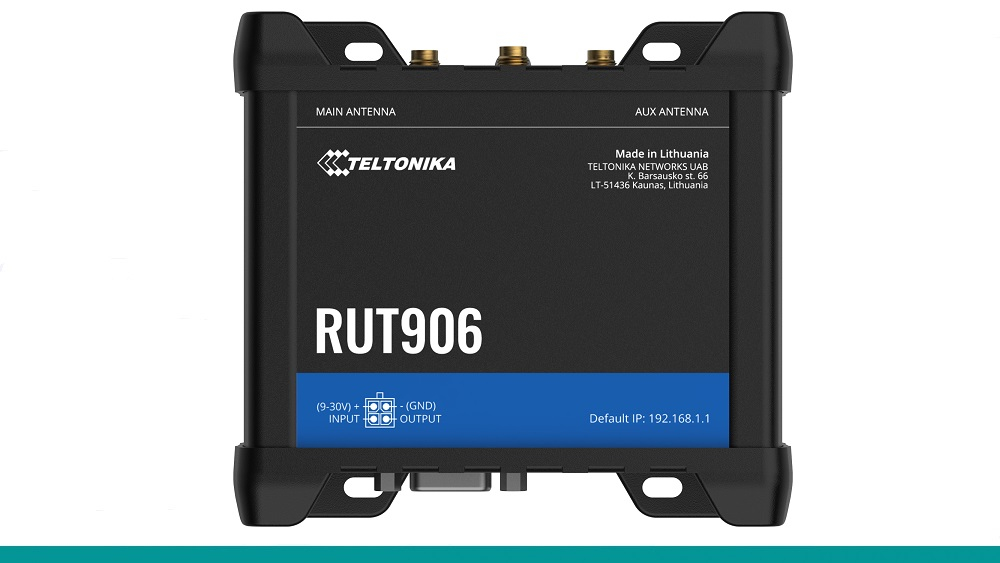

The RUT906 is an advanced Cat 4 industrial LTE router designed for stable and secure communications in IoT, M2M and industrial automation environments. The device offers a broad set of interfaces, advanced networking features and a high level of security, making it ideal for applications requiring reliability, flexibility and remote management.

Key features

• LTE Cat 4 mobile modem: speeds of up to 150 Mbps (DL) and 50 Mbps (UL); support for 3G and 2G
• dual SIM with failover: automatic switching depending on signal quality, data limits, roaming or network outage
• industrial interfaces: RS232, RS485, USB, Ethernet (1× WAN, 3× LAN), digital and analogue inputs/outputs
• industrial protocol support: Modbus (TCP/RTU), OPC UA, BACnet, DLMS, DNP3
• advanced network functions: static and dynamic routing (OSPF, BGP, RIP), VLAN, QoS, firewall, VoIP NAT helpers
• integrated Wi-Fi 4 (802.11b/g/n): up to 100 simultaneous connections, AP and STA modes, 802.11r roaming, MAC filtering
• extensive VPN support: OpenVPN, IPsec, WireGuard, GRE, PPTP, L2TP, DMVPN, SSTP, ZeroTier, Stunnel, Tinc
• GNSS location: GPS with NTRIP support, geofencing, coordinate sending via WebUI, SMS or RMS
• remote management and diagnostics: WebUI, CLI, SMS, TR-069, RMS, API, SNMP, MQTT, JSON-RPC

Technical specifications

• processor: MediaTek MIPS 24KEc, 580 MHz
• RAM: 128 MB DDR2
• Flash memory: 16 MB SPI
• power supply: 9-30 VDC, with reverse polarity and overvoltage protection
• power consumption: < 2 W idle, < 7 W maximum
• housing: aluminium with plastic panels, DIN rail, wall or flat surface mounting
• dimensions and weight: 109.5 × 50 × 100 mm, 295 g
• operating temperature range: -40°C to +75°C
• humidity: 10-90% (non-condensing)
• degree of protection: IP30
• certifications: CE, UKCA, CB, E-mark, RCM

Interfaces:

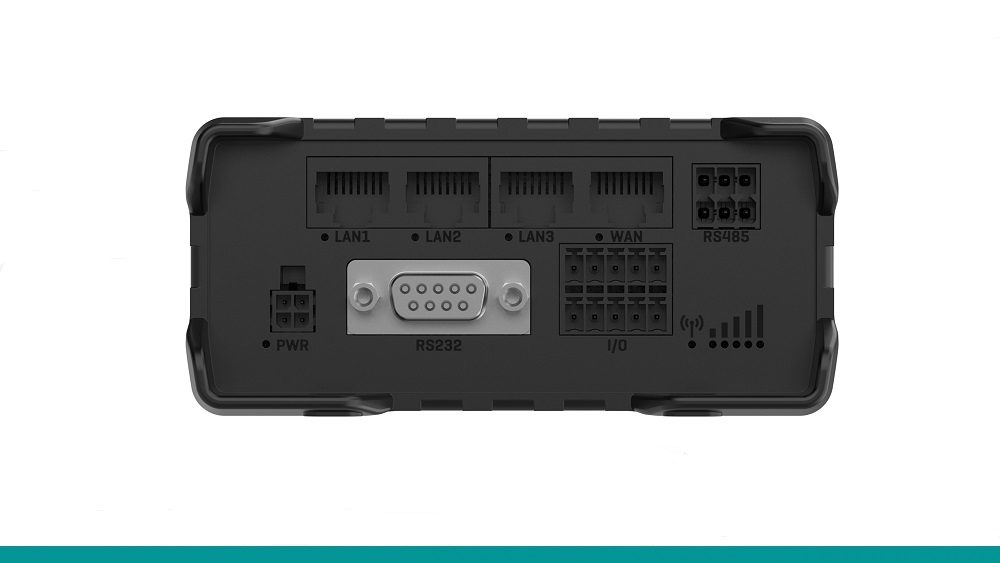

• 4 × RJ45 Ethernet 10/100 Mbps (1 WAN, 3 LAN)

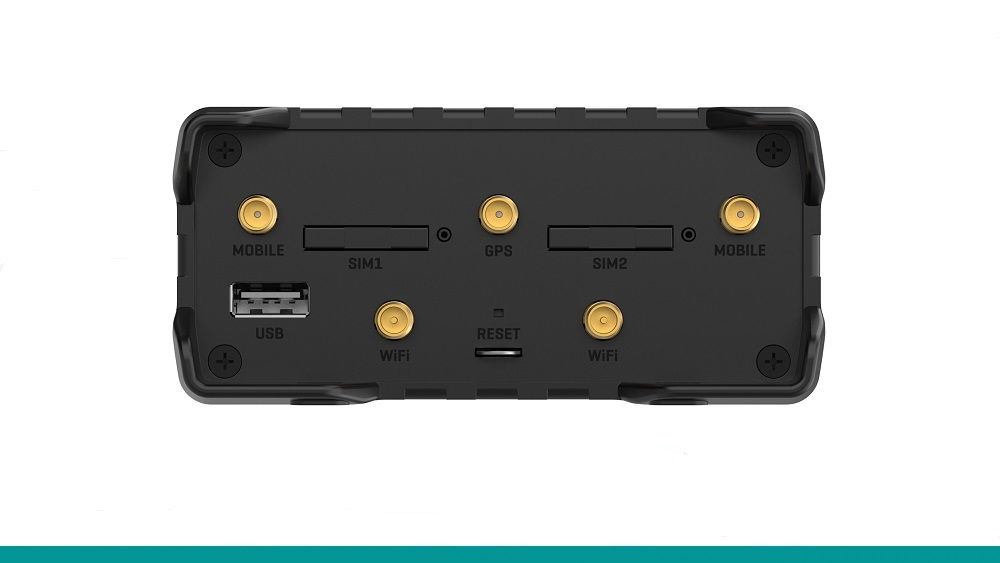

• 2 × SIM slots (Mini SIM - 2FF), optional eSIM
• 2 × SMA connectors (LTE), 2 × RP-SMA (Wi-Fi), 1 × SMA (GNSS)
• 1 × RS232 (DB9), 1 × RS485 (6-pin), 1 × USB 2.0
• 2 × digital inputs and 2 × digital outputs, analogue input
• microSD card slot (up to 2 TB)

Support for IoT platforms

• Azure IoT Hub (support for Provisioning Service, API, Plug&Play)
• AWS IoT Core (support for Jobs and remote API)
• ThingWorx, Cumulocity, MQTT, HTTP(S), Kinesis
• Teltonika RMS - full remote management, diagnostics and updates

Applications

• SCADA systems and industrial automation
• monitoring and remote control systems
• critical infrastructure, transport, energy
• fleet and location solutions using GNSS
