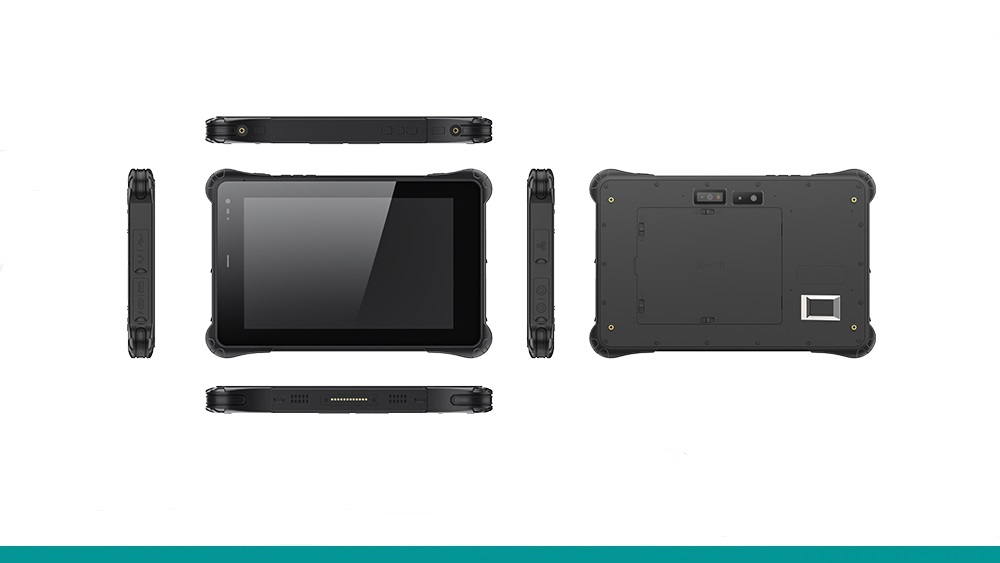

RTC-M818 – 8" Rugged Android Tablet with Octa-Core MTK Processor

RTC-M818 is a high-performance, industrial-grade 8-inch rugged tablet designed for demanding professional environments. Powered by an MTK6762 octa-core processor and running on Android 12, it delivers reliable performance, seamless multitasking, and compatibility with a wide range of enterprise applications.

The bright 1280×800 IPS display offers 500 nits of brightness, ensuring visibility even under direct sunlight, and supports touch input with gloves or wet fingers. The device is built to withstand drops, dust, and water, meeting the IP65 protection standard and surviving falls from up to 1.2 meters.

Designed for all-day field operations, the RTC-M818 features a removable 8000 mAh battery, 4G LTE, Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 5.0, and GNSS (GPS/GLONASS/Beidou). It also offers optional modules such as 1D/2D barcode scanners, NFC/RFID, MSR, and various mounting and docking solutions — making it a fully customizable platform for mobile workforce needs.

Whether in logistics, warehousing, utilities, manufacturing, or field service, the RTC-M818 provides the durability, flexibility, and connectivity required for mission-critical tasks in harsh conditions.

Specification:
display

• size: 8 inch
• touch type: G+G capacitive multi-touch screen, gorilla glass, hardness 7h
• resolution: 800 x 1280
• luminance: 700 nits
• contrast ratio: 1200: 1
• view angles: 85 (left), 85 (right), 85 (up), 85 (down)
• color: 16.7M

system

• CPU: MTK MT6771, ARM Cortex-A73 Quad-core 2.0 Ghz,ARM Cortex-A53 Quad-core 2.0GHz
• memory: 4GB LDDR4 (optional 6GB)
• storage: 64GB EMMC (optional 128GB)
• graphics: ARM Mail-G72
• camera:
• front: 5MP fixed-focus camera
• rear: 13MP autofocus camera with flash
• sensor: compass, gyroscope, G-sensor, light sensor

keypad & keyboard

• button: 1x Power button, 1x Volume+, 1x Volume -, 2x Function keys

I/O ports

• USB:
  • 1x USB 2.0 type A
  • 1x USB 2.0 Type C (supports power charging and data transfer)
• Ethernet: 1x RJ45 10/100M
• display: 1x Mini HDMI
• audio: 1x 3.5mm audio combo jack
• SIM card slot: 1x Micro SIM card slot
• TF card slot: 1x TF card slot, up to 256GB
• aviation plug: 2x aviation plug (choose two out of three from USB, RS232 or DC-in)
• docking connector: 1x 12-Pin

RF communication

• Wi-Fi: Wi-Fi 802.11 (a/b/g/n/ac), dual band (2.4G + 5.0G)
• cellular:
  • GSM: B2/B3/B5/B8, WCDMA: B1/B2/B5/B8
  • TD-SCDMA:B38/B39/B40/B41
  • CDMA2000: BC0/BC1
  • FDD: B1/B3/B5/B8/B20/B28a/B28b or B2/B4/B7/B17
  • TDD: B34/B38/B39/B40/B41
• Bluetooth: Bluetooth V4.2
• GNSS: GPS, GLONASS, BeiDou

data collection （optional）

• NFC: 13.56MHz, supports ISO/IEC 14443A/14443B/15693/18092/mifare
• RFID: UHF RFID, supports PR9200
• barcode reader: 1D, 2D barcode reader
• fingerprint: FBI/ISO/GA certification

audio

• speaker 8Ω/1W, dual stero speakers
• MIC: built-in microphone

power

• power adapter: input AC:100-240V, 50-60Hz, output DC:5V 3A
• battery: removable lithium-ion polymer battery, 3.8V 10000mAh
• battery life: 8 hours

operating system: Android 11

mechanical

• dimensions (W x D x H): 236.5 x 156 x 23mm (9.31 x 6.14 x 0.91 inches)
• weight (N.W.): 850g ( 1.87lbs)

environment

• operating temperature: -10 °C to 50 °C (14 to 122°F)
• storage temperature: -20 °C to  60 °C (-4 to 140°F)
• relative humidity: 95% @ 40°C (104°F), non-condensing
• vibration: MIL-STD-810H: 2022 method 514.8 procedure I
• drop: MIL-STD-810H: 2022 method 516.8 procedure IV, 4ft
• IP rating: IP67

certification: EMC: CE, FCC
