PU201-10B
Manufacturer's P/N: PU201-10B
Manufacturer: PROTEK DEVICES

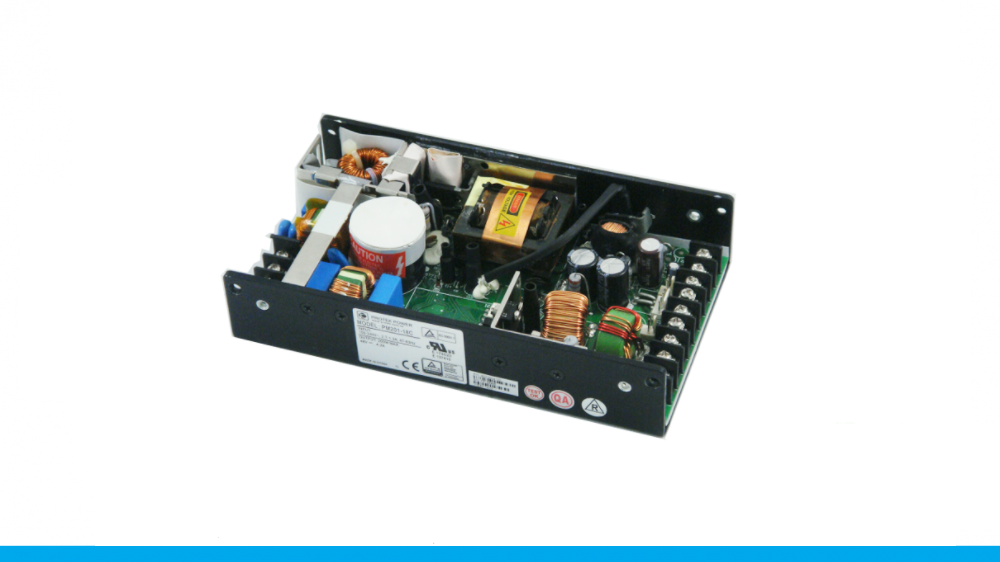

AD/DC PROTEK PU201-10B 230V 5V 35A 175W
TypeAC/DC
Output power175W
Output voltages5V
AssemblyTHT
Standard packaging:
1 pcs.
Minimum order:
1 pcs.
Minimum batch:
1 pcs.
In stock:
Ask

Features:

  • meet EN5 5022 an d FCC class B
  • power fact or 0.98 typical
  • short -circuit protection
  • power fail detect (PF D) signal
  • 100% burn-in at full rated load
  • optional cover-and-fan assembly
  • remote inhibit - TTL high to disable output
  • compliant with RoHS requirements
  • operating temperature: 0 to +70oC

Specification:

  • input voltage: 90-264 VAC
  • input frequency: 47-63 Hz
  • input current: 1.60 A (rms) for 230 VAC
  • output voltage: 5 V
  • output current: 35 A
  • max. output power: 175 W
