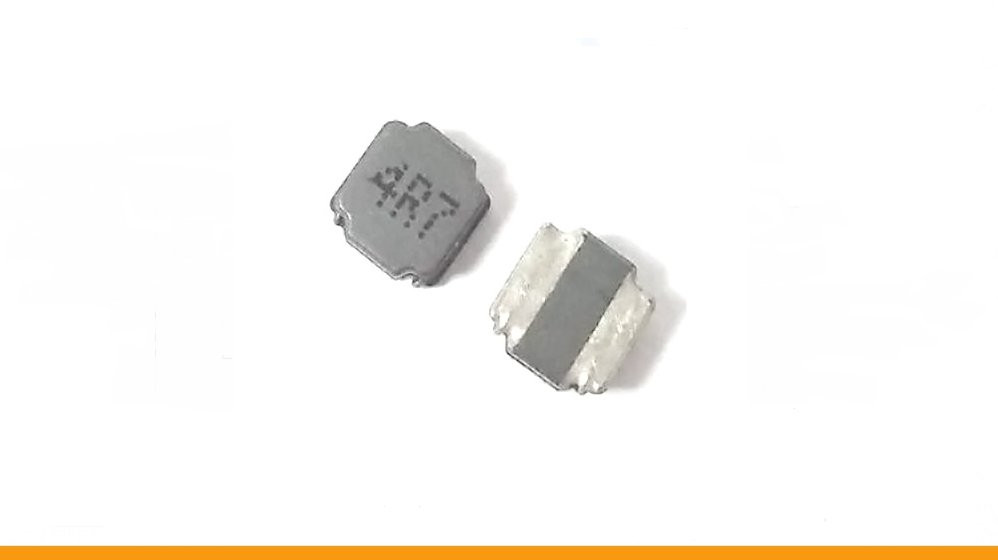

Molded series with Alloy metal powder

Features

• high rated current
• frequency up to 3 MHz
• 125 deg. maximum total operation temperature
• low core loss
• ultra low buzz noise due to molding construction
• halogen free & ROHS compliant

Specification:

• test voltage: 1.0V
• parameters test temperature: 20°C
• operation temperature (incl temp rise): -55 to +125°C
• storage temperature: 0 to 40°C
• storage humidity: <70% RH
• resistance to soldering heat: 260°C for 10 sec
• rated current: L drops off 30% typ at Isat
• temperature rise: 40°C typ. at Irms
• inductance: 1.50uH

Applications:

• laptops and PCs
• switch and servers
• base stations
• DC/DC converters
• battery powered devices
• SSD modules
