The NCS-PX215P-J2-J industrial panel computer is a robust and cost-effective solution, ideal for applications where reliability, a large screen and an optimal price/performance ratio are priorities. Equipped with a 21.5-inch display, it provides comfortable operation and readability for HMI, monitoring and control applications. The Intel Celeron J6412 quad-core processor clocked at 2.0 GHz, combined with RAM (4 GB, 8 GB or 16 GB DDR4) and disk configuration options (64 GB, 128 GB, 256 GB, 512 GB M.2 SSD, expandable by 1TB/2TB HDD), offers sufficient computing power for typical industrial applications.

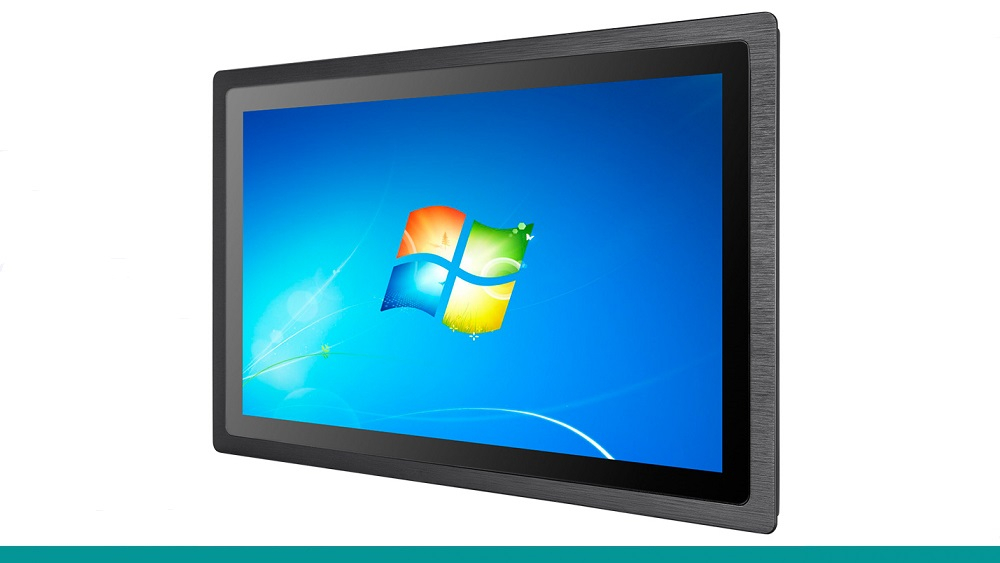

The NCS-PX215P-J2-J computer features a fanless design encased in a sleek, ultra-thin aluminum frame just 3mm thick. The IP65-rated front panel guarantees resistance to dust and water ingress for trouble-free operation in harsh environments. The large 21.5-inch TFT LCD display with LED backlighting and Full HD 1920x1080 resolution (16:9 aspect ratio) provides clear and detailed images. A contrast ratio of 1000:1 and a brightness of 300 cd/m² (with the option of increased brightness to 1000 cd/m²) ensure good visibility in a variety of lighting conditions. Wide viewing angles (89x89x89x89) allow comfortable viewing from different perspectives. A 10-point capacitive touchscreen with high light transmission (≥88%) and Mohs hardness of 7 provides precise and intuitive operation.

The NCS-PX215P-J2-J panel computer offers a rich set of interfaces. A wide range of power supply voltages (12V~36V DC) and an included 24V/2.5A power supply facilitate integration with various power systems.

The NCS-PX215P-J2-J computer is designed for continuous 24/7 operation over a wide temperature range (-10 ~ 60°C, with an extended range option to -20 ~ 70°C). It meets stringent EMC (CE, FCC Class B, BSMI, EN60601-1-2, UKCA) and safety (CB, UL, CCC, UKCA) standards, confirming its high quality and compliance with international standards. Shock resistance (10 G) and vibration resistance (5~500Hz, 2Grms) according to IEC standards guarantee stable operation in dynamic environments.

The NCS-PX215P-J2-J industrial panel computer is a cost-effective and reliable solution, offering a large screen, robust design and sufficient performance for a wide range of industrial applications such as HMI systems, visualization, monitoring and control. It is the ideal choice for applications where value for money and reliability in standard industrial environments are key.

Features:

• aluminum alloy enclosure, easy embedded design
• IP65 protected flat front panel

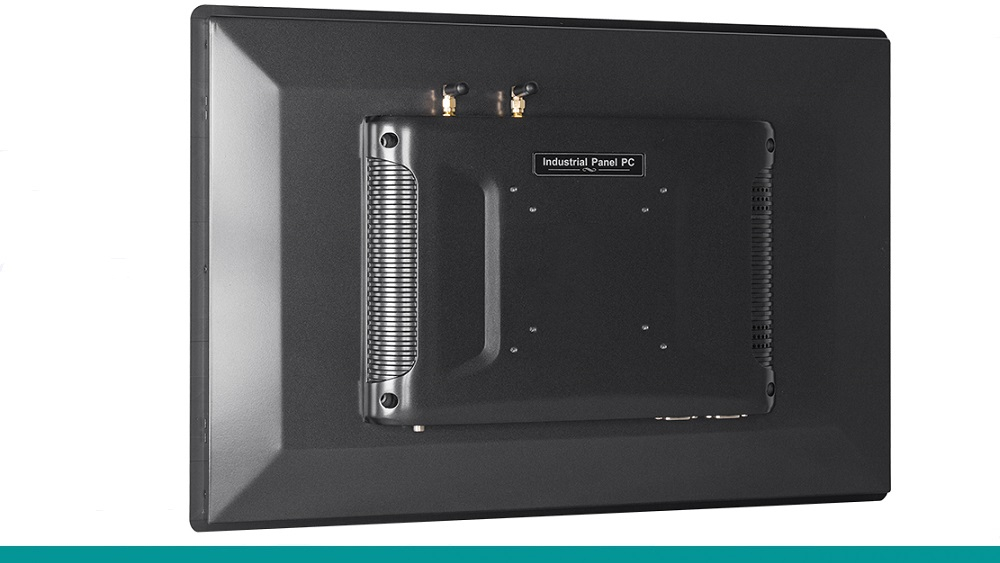

• fanless, excellent heat dissipation design
• self-developed industrial grade motherboard
• Intel Celeron J6412 quad-core 2.0GHz processor
• high compatibility with 99% of industry software

Specification:

• screen parameters:
  • display type: 21.5" TFT LCD
  • max. resolution: 1920 x 1080 (16:9)
  • viewing angle (H/V): 89/89/89/89 (L/R/U/D)
  • luminance: 300 (cd/m²)
  • contrast ratio: 1000:1
• touch parameters:
  • touchscreen: 10-point touch projection capacitive touch screen
  • light transmission: ≥88%
  • controller: USB
• power parameters:
  • power input: DC 12V-36V
  • power adapter: 24V / 2.5A
• hardware configuration:
  • CPU: Intel Celeron J6412 quad-core 2.0GHz CPU
  • RAM memory: 8GB (4GB/16GB optional)
  • storage: 256GB SSD (64GB/128GB/512GB/1TB SSD, 1TB/2TB HDD optional)
  • Wi-Fi: support 2.4GHz/5GHz, dual band Wi-Fi
  • bluetooth: BT4.0
  • operating system: WIN10/11, Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04, Centos7.8/8.4/7.9, Redhat7.4, Debian10.0/11.6
• physical characteristics:
  • overall dimensions (WxHxD): 557x 345x 63 mm
  • installation size (WxH): 540.6 x 328.6 mm
  • material: aluminum alloy
  • color: black, optional silver

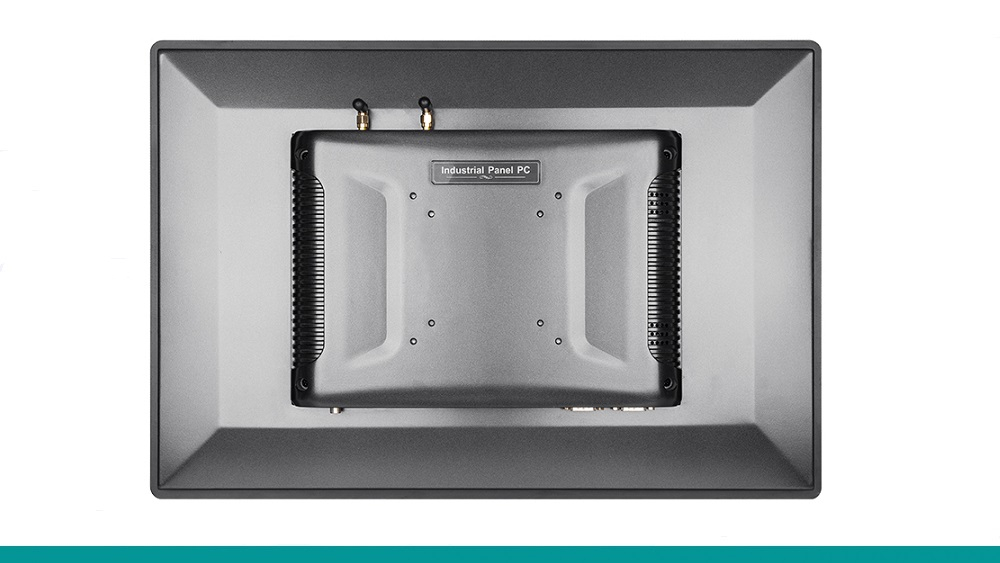

  • installation: support embedded/panel mount, inner embedded/VESA wall mount by VESA, desktop by VESA, cantilever by VESA

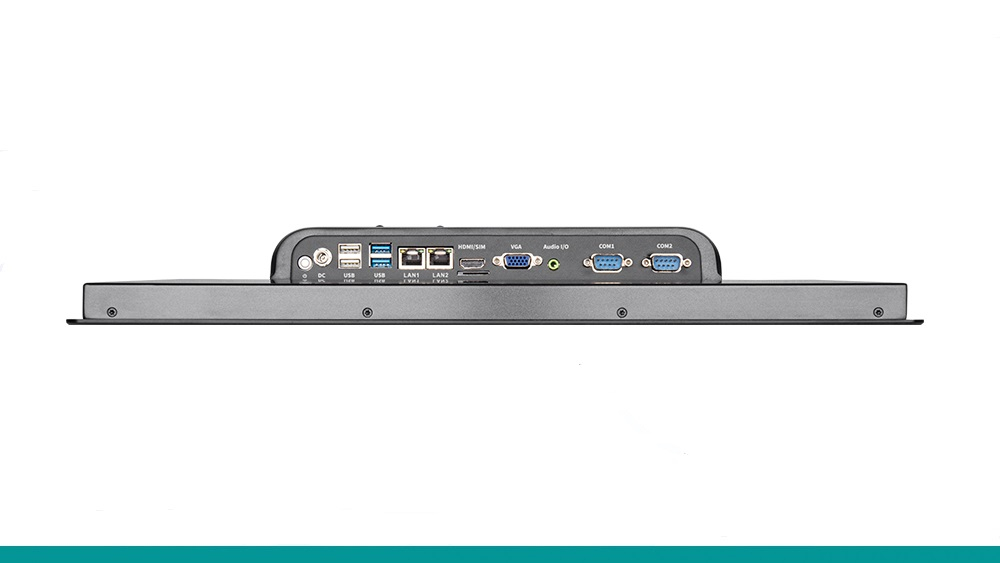

• interface parameters:
  • Phoenix terminal: 1 x 12P Phoenix terminal (DC / RS232 x 1/ RS485 x 1 / GPIO x 5)
  • power interface: 1 x threaded DC interface (5.5 x 2.1mm)
  • USB: 2 x USB 2.0, 2 x USB 3.0
  • Ethernet: 2 x LAN,10M/100M/1000M adaptive Ethernet, 3G/4G customized
  • HDMI: 1 x HDMI output, up to 4K
  • SIM: 1 x SIM card slot (should be work with 3G/4G module)
  • VGA: 1 x VGA
  • audio: 1 x Audio I/O, support audio input and output
  • serial port: 1 x COM (default RS232, optional RS485/RS422)

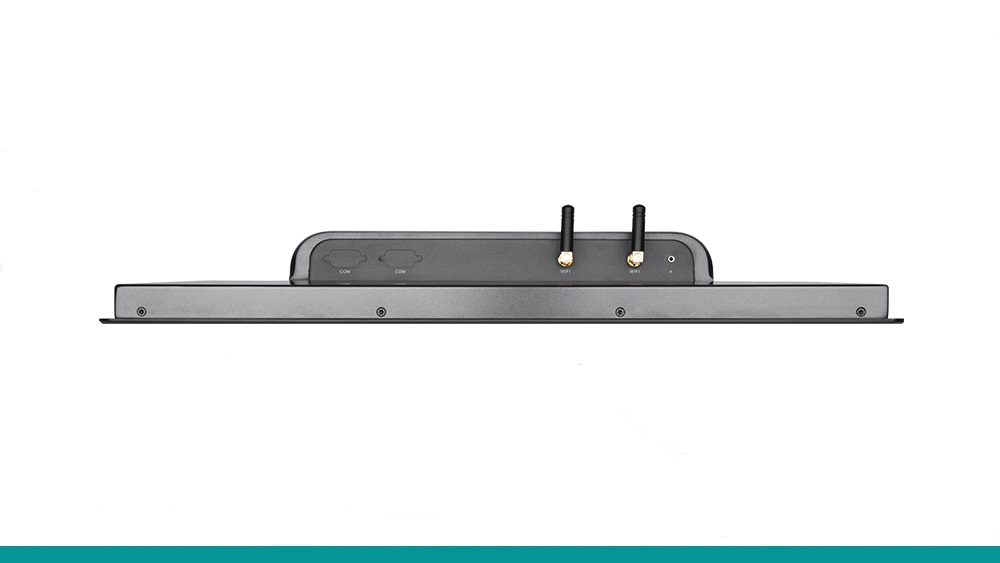

  • Wi-Fi antenna: 2 x Wi-Fi antenna
  • grounding: 1 x GND
  • speaker: 2 x (8Ω5W)
• environment:
  • working temperature: -10°C~60°C
  • storage temperature: -20°C~70°C
  • relative humidity: 95% non-condensing
• warranty: 3 years
