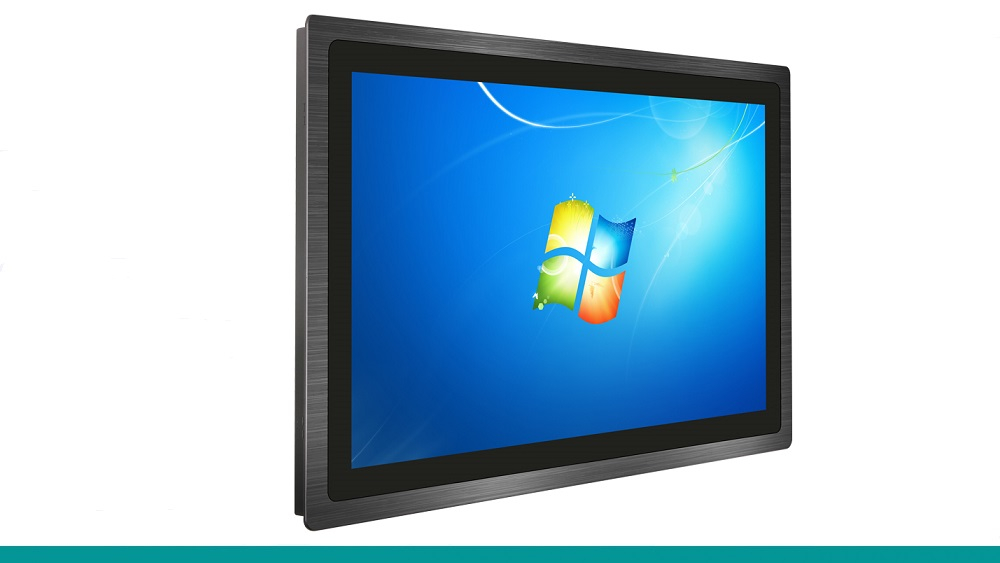

The NCS-PX215P-J2-I industrial panel computer is a powerful and versatile device designed to operate in the harshest industrial environments. Equipped with a large 21.5-inch screen, it offers excellent readability and comfort, ideal for data visualization, process control and interaction with industrial applications. A wide selection of Intel Core processors (from i3 to i7, generation 8, 10 and 12) and configuration options for RAM (8GB, 16GB, 32GB DDR4) and drives (128GB, 256GB, 512GB M.2 SSD, expandable to 4TB SSD or 1/2TB HDD) allow you to fine-tune parameters to meet specific application requirements.

The NCS-PX215P-J2-I computer features a fanless design encased in a sleek, ultra-thin aluminum frame just 3mm thick. The IP65-rated front panel guarantees resistance to dust and water ingress for trouble-free operation in harsh industrial environments. The impressive 21.5-inch TFT LCD display with LED backlighting and Full HD 1920x1080 resolution (16:9 aspect ratio) provides sharp and detailed images. A contrast ratio of 1000:1 and brightness of 300 cd/m² (with the option of increased brightness to 1000 cd/m²) ensure good visibility in a variety of lighting conditions. Wide viewing angles (89x89x89x89) allow comfortable viewing from different positions. A 10-point capacitive touchscreen with high light transmission (≥88%) and Mohs hardness of 7 provides precise and intuitive operation.

The NCS-PX215P-J2-I panel computer offers a wide range of interfaces. A wide range of power supply voltages (12V~36V DC) and an included 24V/4A power supply facilitate integration with various power systems.

The NCS-PX215P-J2-I is designed for continuous 24/7 operation in a wide temperature range (-10 ~ 60°C, optionally extended to -20 ~ 70°C). It meets stringent EMC (CE, FCC Class B, BSMI, EN60601-1-2, UKCA) and safety (CB, UL, CCC, UKCA) standards, confirming its high quality and compliance with international standards. Shock resistance (10 G) and vibration resistance (5~500Hz, 2Grms) according to IEC standards guarantee stable operation in dynamic environments.

The NCS-PX215P-J2-I industrial panel computer is the ideal solution for a wide range of industrial applications such as automation, process control, visualization, HMI systems, monitoring and more. Its large, easy-to-read screen, high performance, robust design and rich set of interfaces make it a reliable tool in any demanding environment.

Features:

• high precision die-casting aluminum molding, pure plane wire drawing process design, dustproof and waterproof
• self developed fanless industrial motherboard with X86 architecture, efficient heat dissipation
• conform to EMC anti electromagnetic interference standard
• industrial protection, applicable to various harsh environment
• rich interfaces and strong extensibili

Specification:

• hardware configuration:
  • CPU: Intel Core I3-1215U
  • CPU frequency: 1.2GHz
  • GPU: Intel Iris Xe Graphics 64
  • memory/RAM: 8GB (supports up to 32 GB)
  • storage: 256GB SSD (256GB~512GB/1TB~4TB SSD, 1T/2T HDD optional
  • operating system: WIN10/11, Ubuntu 20.04/22.04/Redhat8.7/Debian12.2/Linux-Mint
  • Wi-Fi: dual band 2.4GHz+5GHz
  • bluetooth: BT4.0 (optional)
• screen parameters:
  • display type: 21.5" TFT LCD
  • max. resolution: 1920 x 1080 (16:9)
  • viewing angle (H/V): 89/89/89/89 (L/R/U/D)
  • luminance: 300 (cd/m²)
  • contrast ratio: 1000:1
• touch parameters:
  • touchscreen: 10-point touch projection capacitive touch screen
  • touch object: hand or capacitive touch pen
  • light transmission: ≥88%
  • controller: USB
• environment:
  • working temperature: -10°C~60°C
  • storage temperature: -20°C~70°C
  • relative humidity: 95% non-condensing
• power parameters:
  • power input: DC 12V-36V
  • power adapter: 24V / 4A
• physical characteristics:
  • material: aluminum alloy
  • color: classic black, technical silver
  • installation: embedded, wall mounted, desktop, louver, cantilever, boom or other

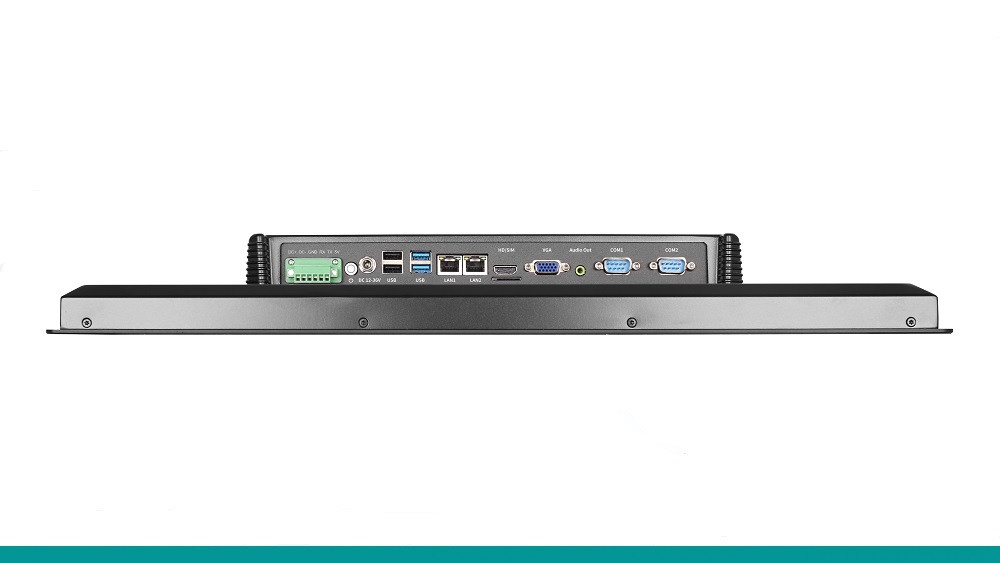

• interface parameters:
  • Phoenix terminal: 1 x 12P Phoenix terminal (DC x 1 / RS232 x 1/ RS485 x 1 / GPIO x 5)
  • power interface: 1 x threaded DC connector (5.5 x 2.5mm)
  • power SW: 1 x PowerSW
  • USB: 2 x USB 2.0, 2 x USB 3.0
  • Ethernet: 2 x LAN,10M/100M/1000M adaptive Ethernet
  • HDMI: 1 x HDMI, support HDMI data output, maximum support 4K
  • SIM: 1 x SIM card slot
  • VGA: 1 x VGA
  • audio: 1 x Audio I/O, support audio input and output, headphone holder: 3.5mm standard interface
  • speaker: 2 x (8Ω5W)
  • serial port: 1 x COM (default RS232, optional RS485, RS422)

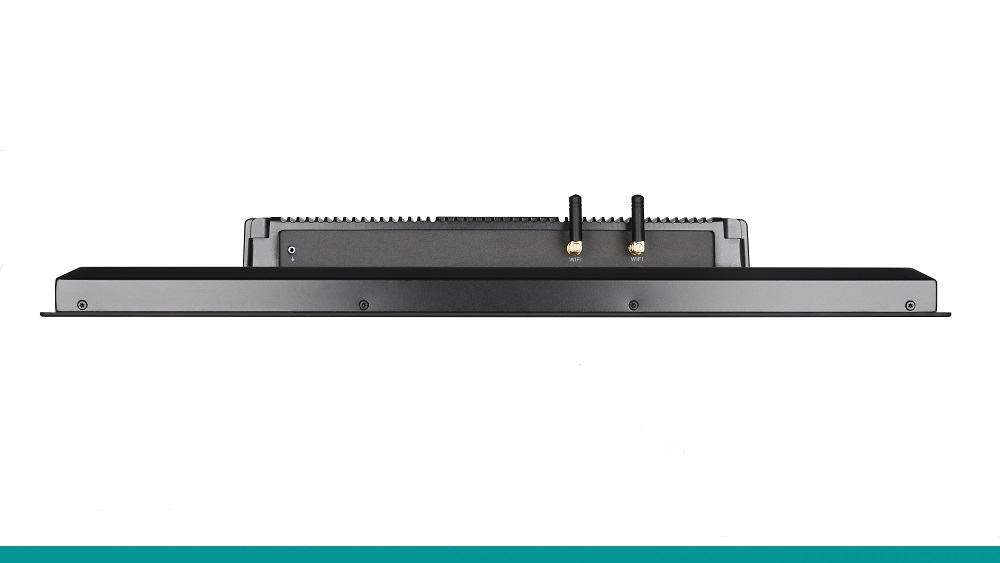

  • Wi-Fi antenna: 2 x Wi-Fi antenna
  • grounding: 1 x GND
• warranty: 3 years
