The NCS-PX185P-J2-J is an advanced 18.5-inch panel PC designed for demanding industrial applications. Equipped with a 2.5GHz Intel® Core™ i5-7200U processor and 8GB of DDR4 RAM (expandable to 16GB), it delivers the high performance needed to support complex applications. A 128GB M.2 SSD offers fast data access, with options to expand to 256GB, 512GB or even 4TB, as well as the option of 1TB or 2TB HDDs.

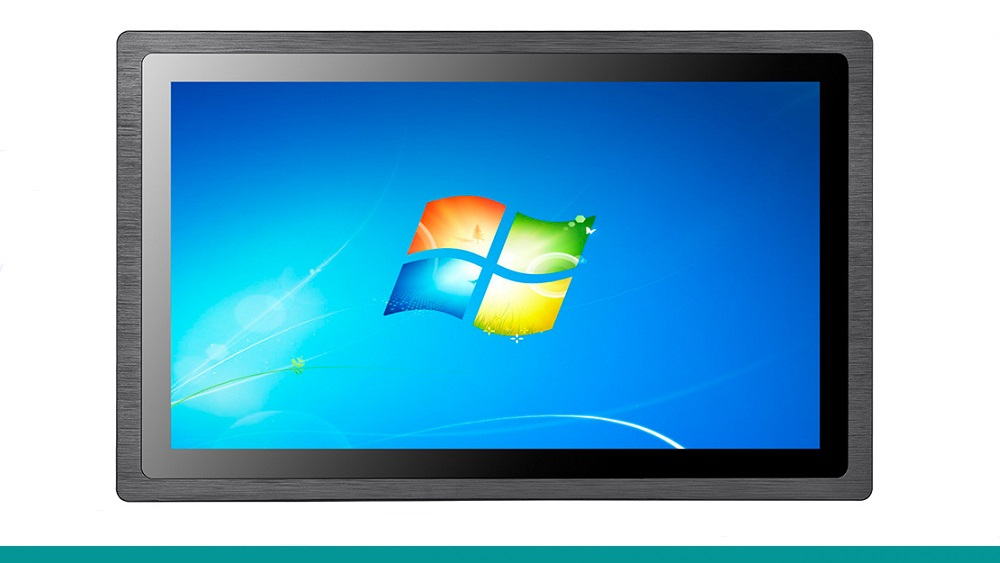

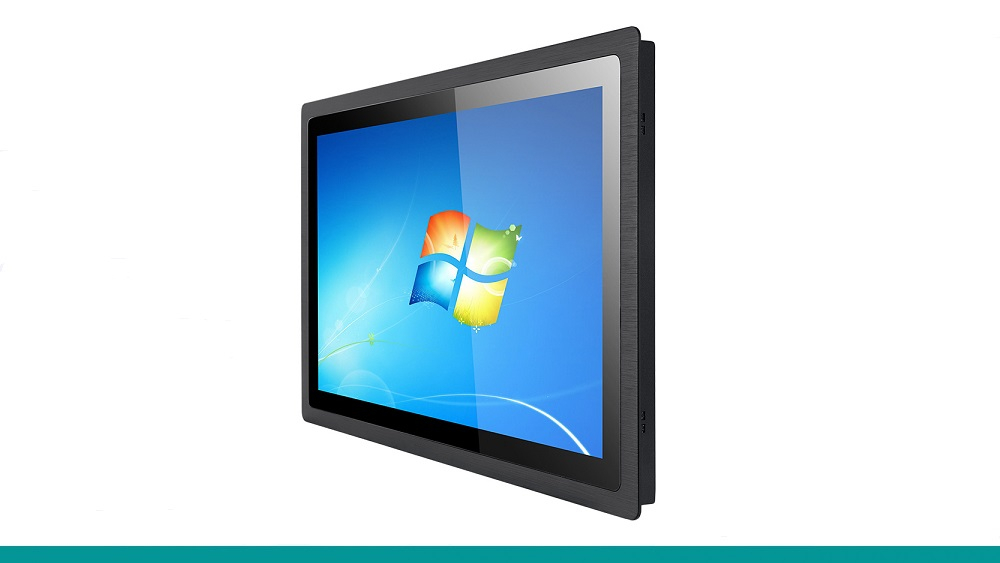

The device features an 18.5-inch LED-backlit TFT LCD screen with a maximum resolution of 1920×1080, providing excellent image quality. Wide viewing angles of 85° in each direction, a brightness level of 300 cd/m² and a contrast ratio of 1000:1 guarantee a clear and crisp image in a variety of lighting conditions. The 10-point capacitive touchscreen with ≥88% light transmission enables precise and intuitive operation.

The computer offers a rich set of interfaces, including 2 USB 3.0 ports, 2 USB 2.0 ports, 1 RS-232 port, audio input/output, HDMI, VGA, SIM card slot and 2 Wi-Fi connections. In addition, DC, RS-232, RS-485 and 5 GPIO lines are available via the Phoenix 12P connector for easy integration into a variety of systems. Built-in loudspeakers (2×8Ω5W) provide high quality audio, and Bluetooth 4.0 enables wireless communication with other devices.

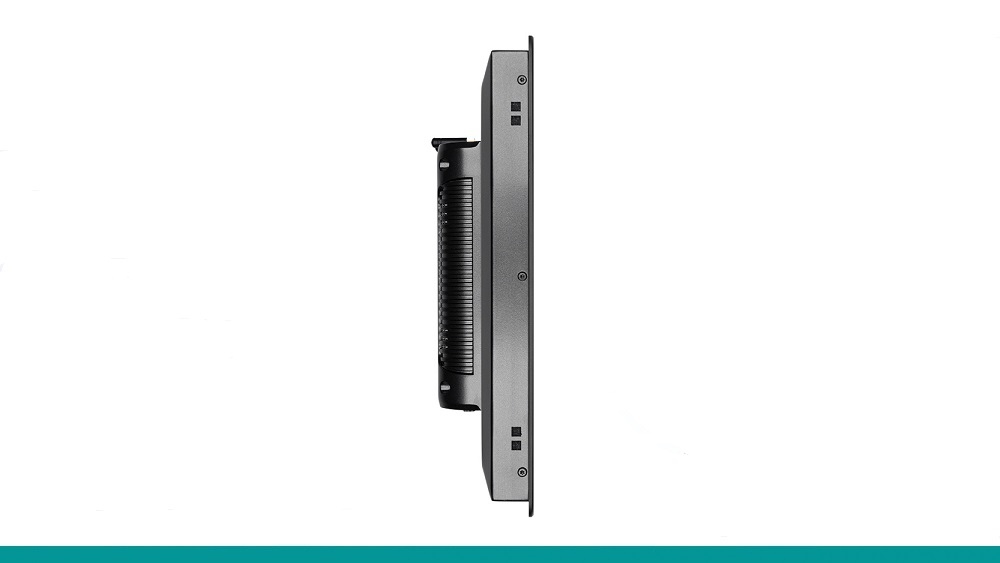

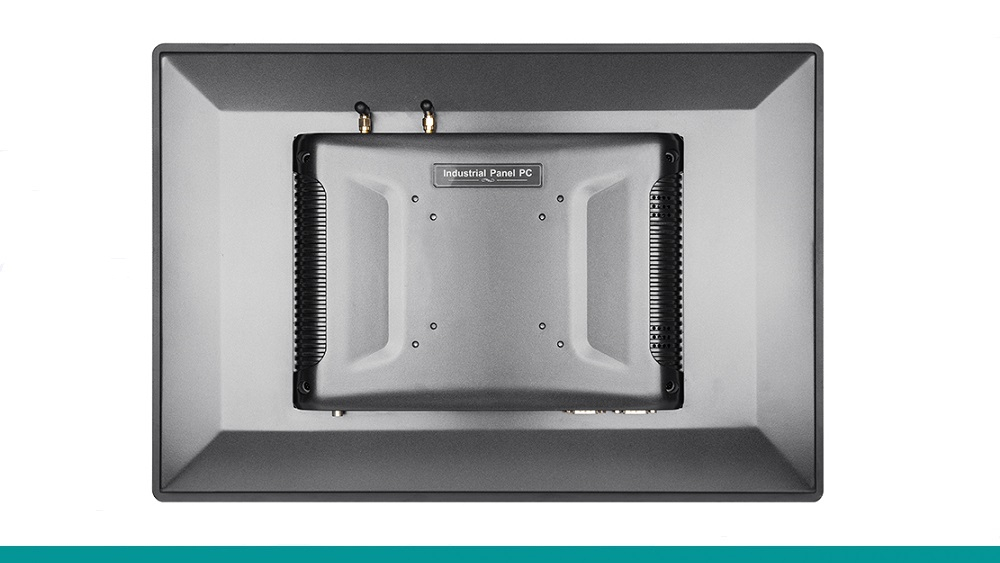

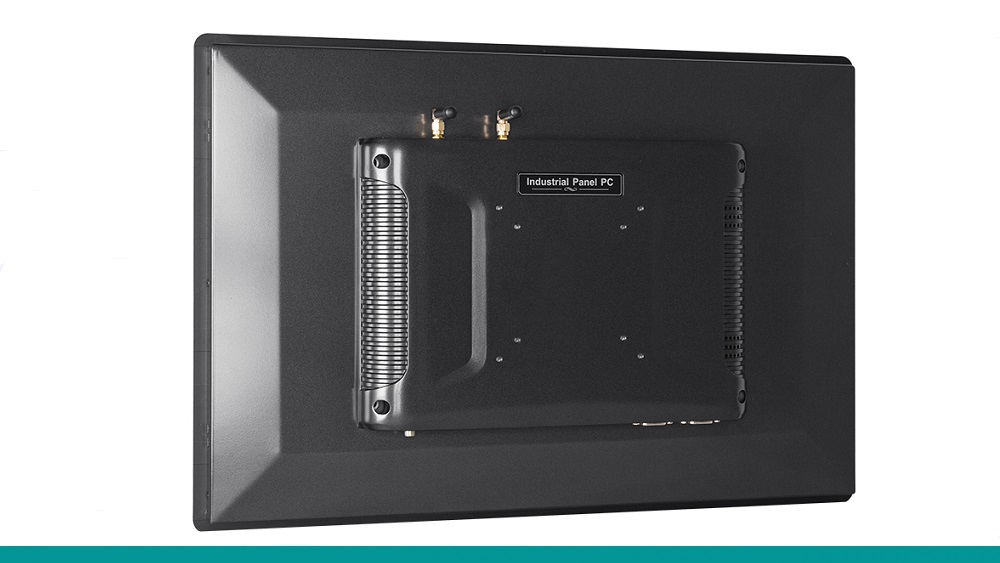

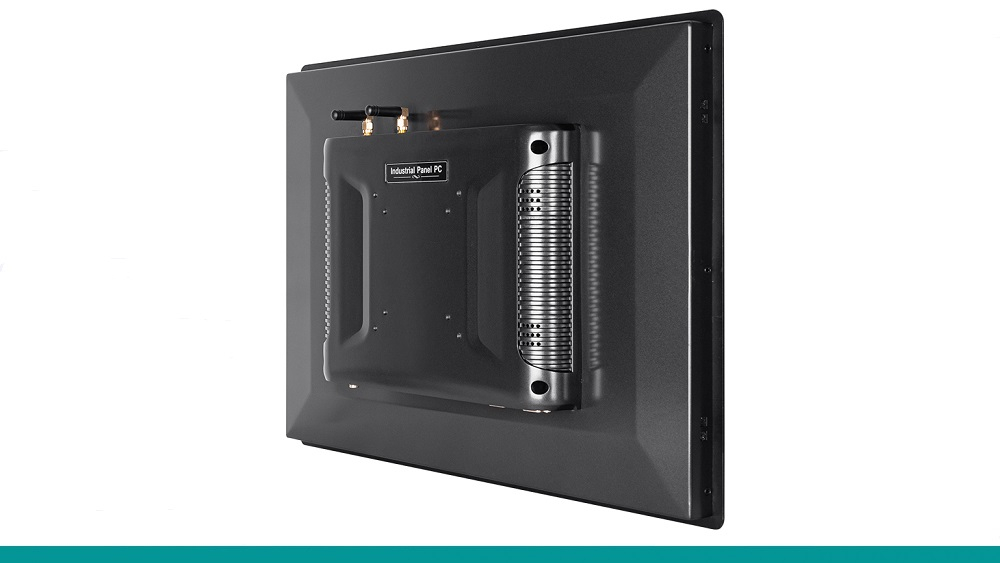

The robust cast aluminium housing with an ultra-thin 2.5mm thick frame not only gives the device a modern look, but also ensures durability and resistance to mechanical damage. The front panel meets the IP65 standard, protecting against dust and water, making it ideal for use in harsh environments. The fanless design and 24/7 continuous operation guarantee the reliability and long life of the unit.

The NCS-PX185P-J2-J supports a wide range of power supply voltages from 12 V to 36 V DC, increasing its flexibility for a variety of applications. The device is compatible with Windows 10/11 operating systems and various Linux distributions such as Ubuntu, CentOS, RedHat and Debian, allowing customisation to meet specific user needs.

With its high shock and vibration resistance in accordance with IEC 60068-2-27 and IEC 60068-2-64 standards, the NCS-PX185P-J2-J panel PC provides a reliable solution for automation, communications, energy and other applications requiring high quality and durability.

Features:

• aluminum alloy enclosure, easy embedded design
• IP65 protected flat front panel
• fanless, excellent heat dissipation design
• self-developed industrial grade motherboard
• Intel Celeron J6412 quad-core 2.0GHz processor
• high compatibility with 99% of industry software

Specification:

• screen parameters:
  • display type: 18.5" TFT LCD
  • max. resolution: 1920 x 1080 (16:9)
  • viewing angle (H/V): 89/89/89/89 (L/R/U/D)
  • luminance: 300 (cd/m²)
  • contrast ratio: 1000:1
• touch parameters:
  • touchscreen: 10-point touch projection capacitive touch screen
  • light transmission: ≥88%
  • controller: USB
• power parameters:
  • power input: DC 12V-36V
  • power adapter: 24V / 2.5A
• hardware configuration:
  • CPU: Intel Celeron J6412 quad-core 2.0GHz CPU
  • RAM memory: 8GB (4GB/16GB optional)
  • storage: 256GB SSD (64GB/128GB/512GB/1TB SSD, 1TB/2TB HDD optional)
  • Wi-Fi: support 2.4GHz/5GHz, dual band Wi-Fi
  • bluetooth: BT4.0
  • operating system: WIN10/11, Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04, Centos7.8/8.4/7.9, Redhat7.4, Debian10.0/11.6
• physical characteristics:
  • overall dimensions (WxHxD): 486.5 x 307.4 x 67 mm
  • installation size (WxH): 470 x 290.9 mm
  • material: aluminum alloy
  • color: black, optional silver
  • installation: support embedded/panel mount, Inner embedded/VESA wall mount by VESA, desktop by VESA, cantilever by VESA

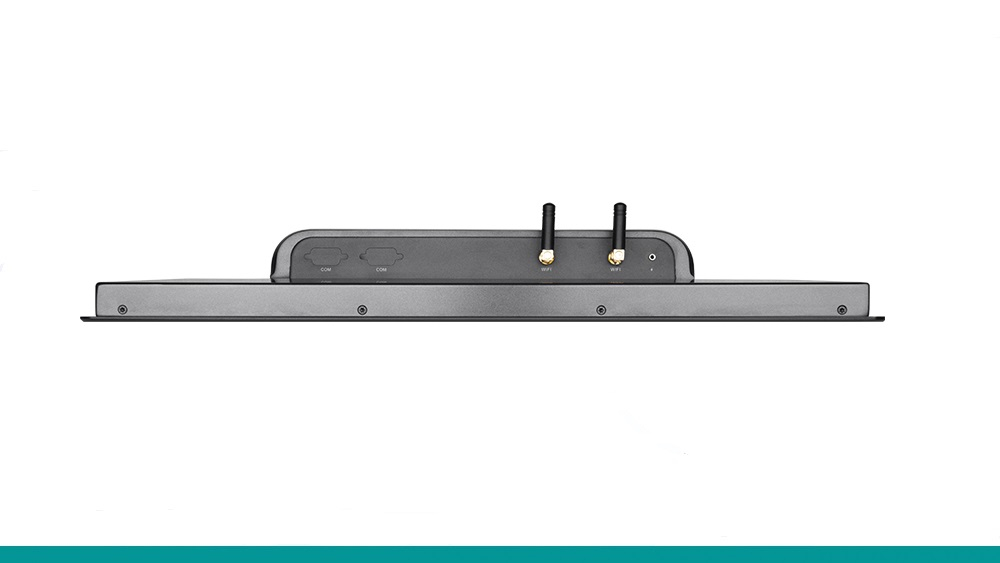

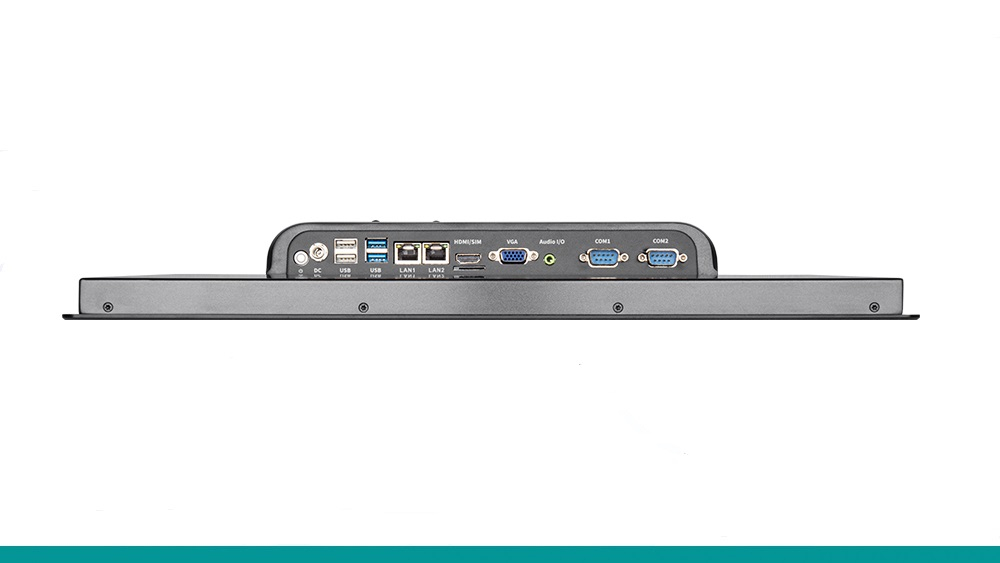

• interface parameters:
  • Phoenix terminal: 1 x 12P Phoenix terminal (DC / RS232 x 1/ RS485 x 1 / GPIO x 5)
  • power interface: 1 x threaded DC interface (5.5 x 2.5mm)
  • USB: 2 x USB 2.0, 2 x USB 3.0
  • Ethernet: 2 x LAN,10M/100M/1000M adaptive Ethernet, 3G/4G customized
  • HDMI: 1 x HDMI output, up to 4K
  • SIM: 1 x SIM card slot (should be work with 3G/4G module)
  • VGA: 1 x VGA
  • audio: 1 x Audio I/O, support audio input and output
  • serial port: 1 x COM (default RS232, optional RS485/RS422)
  • Wi-Fi antenna: 2 x Wi-Fi antenna
  • grounding: 1 x GND
  • speaker: 2 x (8Ω5W)
• environment:
  • working temperature: -10°C~60°C
  • storage temperature: -20°C~70°C
  • relative humidity: 95% non-condensing
• warranty: 3 years
