The NCS-PX185P-J2-I industrial panel computer is an advanced solution that combines high performance with rugged design, ideal for demanding industrial environments where large screen size and reliability are key. Equipped with a wide selection of Intel Core processors (from i3 to i7, from generation 8, 10 and 12), it offers configuration flexibility, allowing you to tailor computing power to your specific needs. Available DDR4 RAM (8GB, 16GB or 32GB) and M.2 SSD (128GB, 256GB, 512GB, and up to 4TB) and HDD (1TB or 2TB) options ensure optimal space and speed.

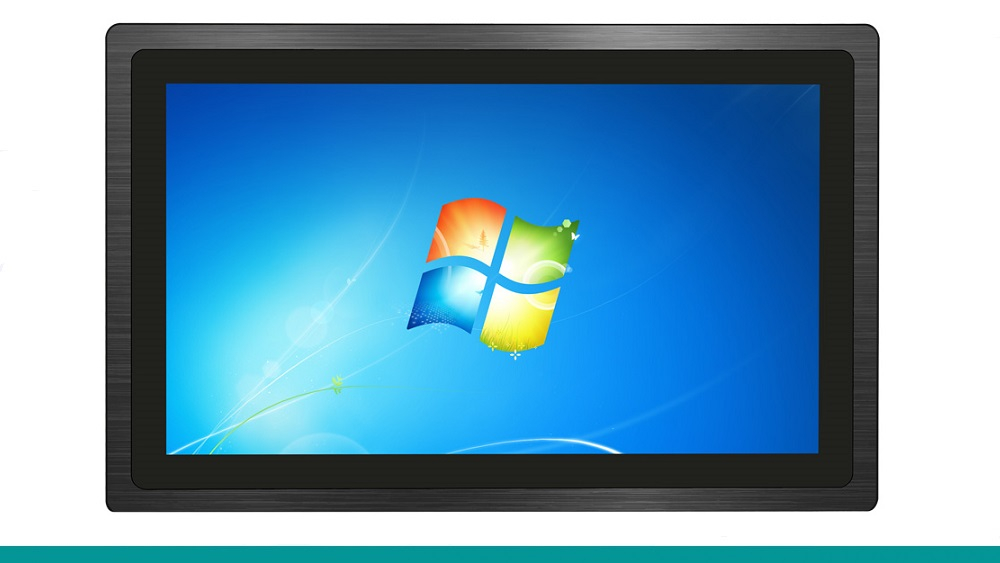

The NCS-PX185P-J2-I computer features a fanless design encased in an ultra-thin aluminum frame just 3mm thick. The IP65-rated front panel guarantees dust and water resistance, enabling operation in harsh environments. The impressive 18.5-inch LED-backlit TFT LCD offers Full HD 1920x1080 resolution (16:9 aspect ratio), 1000:1 contrast ratio and 300 cd/m² brightness, providing a clear and detailed image. Wide viewing angles (89x89x89x89) allow comfortable viewing from different perspectives. A 10-point capacitive touchscreen with high light transmission (≥88%) and Mohs hardness of 7 guarantees precise and responsive interaction.

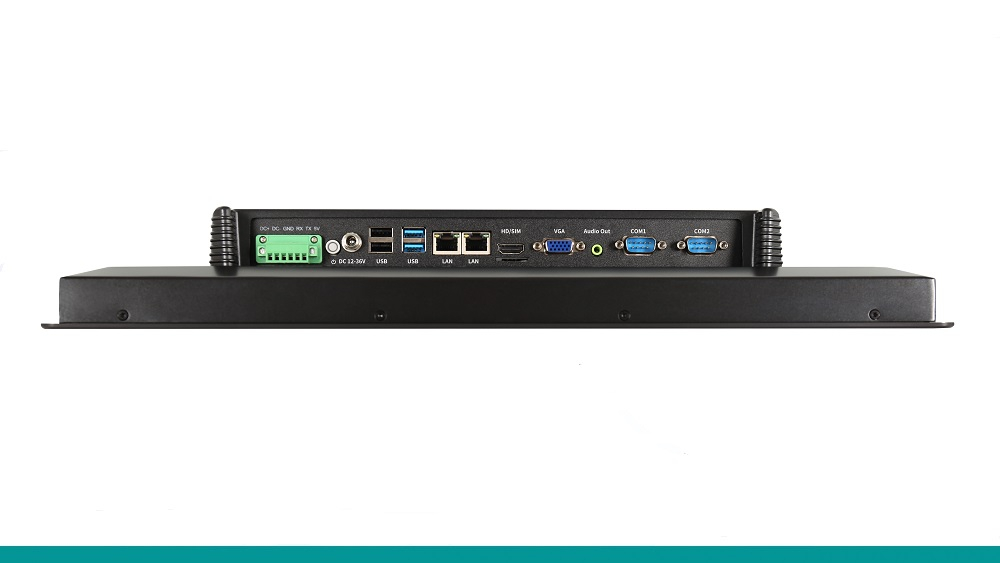

The NCS-PX185P-J2-I panel computer offers a rich set of interfaces, including two LAN ports (10M/100M/1000 Mbps), two USB 3.0 ports, two USB 2. 0, COM port (default RS-232, optional RS-485/RS-422), audio input/output, HDMI port, VGA port, SIM slot, two Wi-Fi antenna connectors, GND connector, Phoenix 12P connector (DC/RS2321/RS4851/GPIO*5), power switch and DC connector. Built-in speakers (2 x 8Ω5W) provide sound for multimedia applications. Bluetooth 4.0 support expands communication capabilities. A wide range of power supply voltages (12V~36V DC) and an included 24V/4A power supply facilitate integration into various systems.

The NCS-PX185P-J2-I computer is designed for 7x24h continuous operation in a wide temperature range (-10 ~ 60°C, and optional WT version -20 ~ 70°C) and high humidity. It meets EMC (CE, FCC Class B, BSMI, EN60601-1-2, UKCA) and safety (CB, UL, CCC, UKCA) standards, confirming its high quality and compliance with international standards. Shock resistance (10 G) and vibration resistance (5~500Hz, 2Grms) according to IEC standards guarantee stable operation in dynamic environments.

The NCS-PX185P-J2-I industrial panel computer is a powerful and versatile tool, ideal for applications in industrial automation, control systems, process visualization, monitoring and more. Its large screen, high performance, robust design and rich set of interfaces make it a reliable solution in any industrial environment.

Features:

• high precision die-casting aluminum molding, pure plane wire drawing process design, dustproof and waterproof
• self developed fanless industrial motherboard with X86 architecture, efficient heat dissipation
• conform to EMC anti electromagnetic interference standard
• industrial protection, applicable to various harsh environment
• rich interfaces and strong extensibili

Specification:

• screen parameters:
  • display type: 18.5" TFT LCD
  • max. resolution: 1920 x 1080 (16:9)
  • viewing angle (H/V): 89/89/89/89 (L/R/U/D)
  • luminance: 300 (cd/m²)
  • contrast ratio: 1000:1
• touch parameters:
  • touchscreen: no
  • light transmission: ≥88%
  • controller: USB
• power parameters:
  • power input: DC 12V-36V
  • power adapter: 24V / 4A
• hardware configuration:
  • CPU: Intel Core I7-1255U
  • CPU frequency: 1.7GHz
  • GPU: Intel Iris Xe Graphics 96
  • RAM memory: 8GB (supports up to 32GB)
  • storage: 256GB SSD (256GB~512GB/1TB~4TB SSD, 1TB/2TB HDD optional)
  • Wi-Fi: dual band 2.4GHz/5GHz
  • bluetooth: BT4.0 (optional)
  • operating system: WIN10/11, Ubuntu20.04/22.04/Redhat8.7, Debian12.2/Linux-Mint
• physical characteristics:
  • material: aluminum alloy
  • color: classic black, technical silver
  • installation: support embedded, wall mount, desktop, louver, cantilever, boom
• interface parameters:
  • Phoenix terminal: 1 x 12P Phoenix terminal (DC / RS232 x 1/ RS485 x 1 / GPIO x 5)
  • power interface: 1 x threaded DC interface (5.5 x 2.5mm)
  • PowerSW: 1 x PowerSW
  • USB: 2 x USB 2.0, 2 x USB 3.0
  • Ethernet: 2 x LAN,10M/100M/1000M adaptive Ethernet
  • HDMI: 1 x HDMI, support HDMI data output, up to 4K
  • SIM: 1 x SIM card slot (depending on 3G/4G module)
  • VGA: 1 x VGA
  • audio: 1 x Audio I/O, support audio input and output, headphone holder: 3.5mm standard interface
  • serial port: 1 x COM (default RS232, optional RS485/RS422)
  • Wi-Fi antenna: 2 x Wi-Fi antenna
  • grounding: 1 x GND
  • speaker: 2 x (8Ω5W)
• environment:
  • working temperature: -10°C~60°C
  • storage temperature: -20°C~70°C
  • relative humidity: 95% non-condensing
• warranty: 3 years
