NCS-PX133P-J2-I – 13.3” Industrial Panel PC with Touchscreen

The NCS-PX133P-J2-I is a modern fanless industrial panel PC designed for reliable 24/7 operation in demanding environments. Featuring a 13.3" capacitive touchscreen and a rugged yet sleek IP65-rated aluminum front panel, it combines high performance, durability, and flexibility for a wide range of industrial applications.

With versatile mounting options (panel, VESA, arm, stand) and a rich set of I/O interfaces, this panel computer is ideal for HMI, automation, control systems, and monitoring applications.

Key Features:

• 13.3" TFT LCD display (1920×1080, 16:9) with 10-point capacitive multi-touch
• 1000:1 contrast ratio, 220 cd/m² brightness (optionally 1000 cd/m²)
• viewing angles: 85°/85°/85°/85°
• fast 5 ms response time
• 7H screen hardness (Mohs scale)
• ultra-thin 3 mm aluminum bezel
• fanless operation for silent performance
• wide power input: 12–36 VDC, external 24V/2.5A power supply included
• 24/7 continuous operation
• operating temperature: -10°C to 60°C (optionally -20°C to 70°C)
• front panel protection: IP65
• shock resistance: 10 G, vibration resistance up to 2Grms

Performance and Hardware Specifications:

• Intel Core i3 processor (2.0 GHz, turbo up to 2.6 GHz) also available with Intel Core i5 and i7 (12th Gen)
• 16 GB DDR4 RAM (optional: 4 / 8 GB)
• 128 GB M.2 SSD (optional: 256 / 512 GB)
• 2 × LAN (10/100/1000/2500 Mbps)

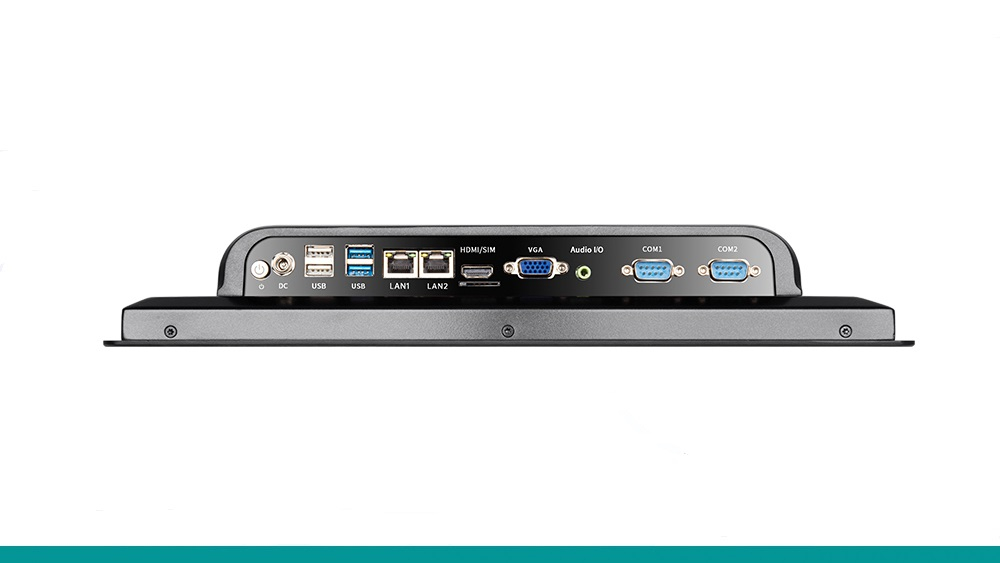

• 2 × serial ports (RS-232 / RS-485), 4 × USB (2 × USB 3.0, 2 × USB 2.0)
• additional I/O: HDMI IN/OUT, VGA, audio, GPIO, SIM slot, 2 × Wi-Fi antennas
• built-in speakers (2 × 5W, 8Ω)
• available configurations (examples):
  • standard: Intel Core i3/i5/i7, 16 GB RAM, 128 GB SSD
  • HB version: high brightness display (1000 cd/m²)
  • WT version: extended temperature range (-20°C to 70°C)
  • HBWT version: both high brightness and extended temperature range

OS Compatibility and Certifications:

• operating systems: Microsoft® Windows 10/11, Linux
• compliance: CE, FCC Class B, BSMI, EN60601-1-2, UKCA, CB, UL, CCC

Package Contents:

• NCS-PX133P-J2-I panel PC
• 230V AC power adapter with cabling
• panel mounting kit
• user documentation

Optional Accessories:

• high brightness (1000 cd/m²) display
• extended operating temperature range (-20°C to 70°C)
• wall mount bracket
• mounting arm

NCS-PX133P-J2-I is the ideal solution for industrial users seeking a high-performance, durable, and configurable panel PC for continuous and demanding use.
