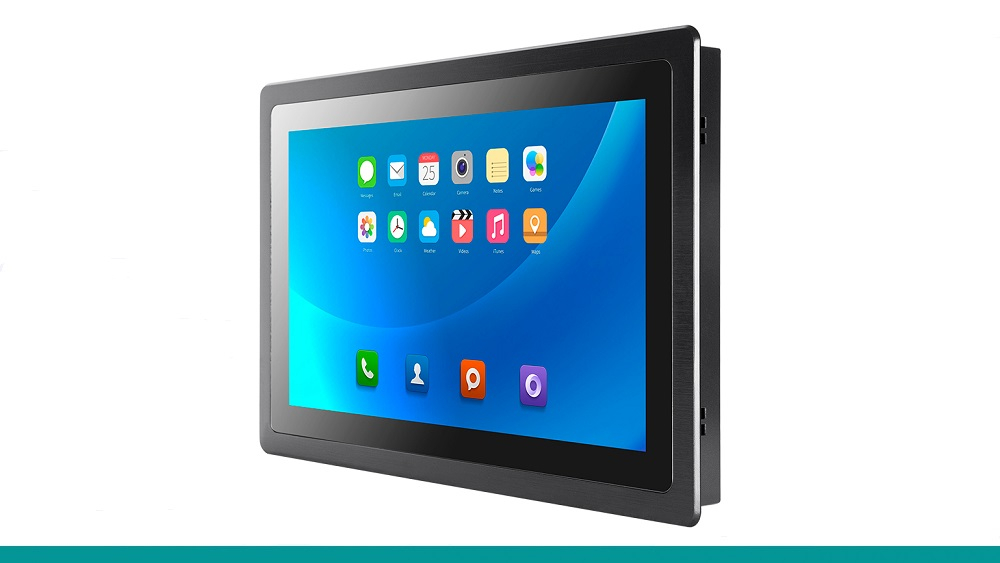

The NCS-PA156P-J2 is an advanced 15.6-inch panel PC designed for demanding industrial environments and automation applications. Equipped with an octa-core RK3588 processor (4×Cortex-A76 + 4×Cortex-A55) at 2.4 GHz and 8 GB of DDR3 memory (expandable to 16 GB), it provides the high performance needed to support complex applications. It has 128GB of eMMC memory (64GB optional) and two dual gigabit Ethernet LAN ports for fast network access and storage of large amounts of data.
The device offers a rich set of interfaces, including four USB 3.0 ports, one RS-232 port, one audio output/input, one HDMI output, one HDMI input, a TF card slot, a SIM card slot and a UBOOT connector. In addition, the computer supports wireless connectivity via Bluetooth and Wi-Fi with a single antenna. A built-in watchdog timer with 255 software-configurable levels ensures system reliability.

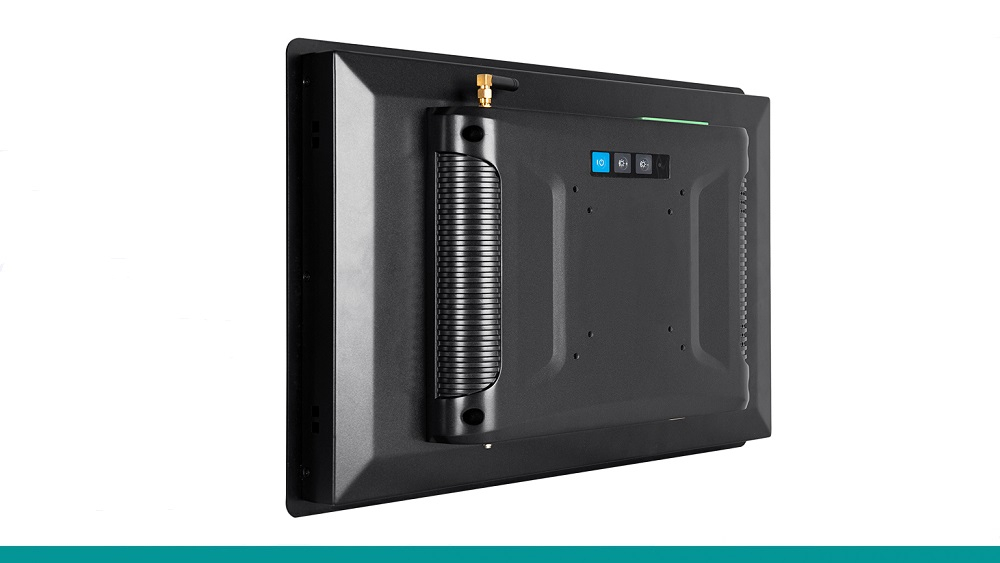

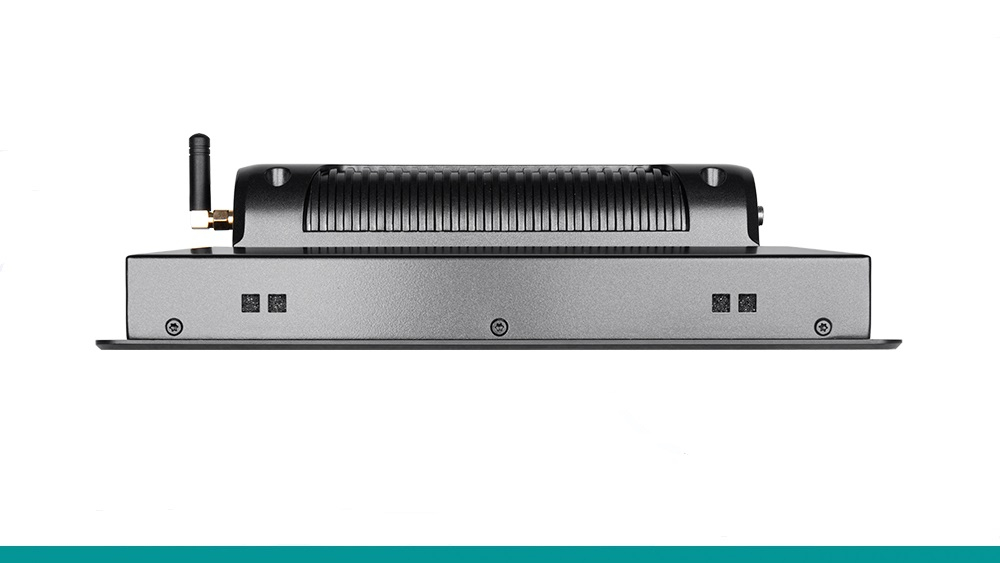

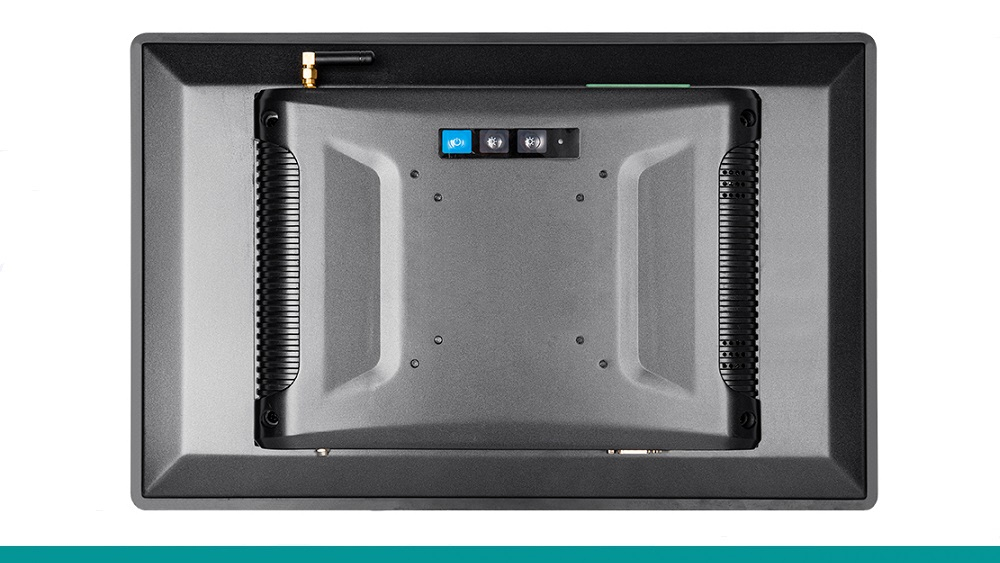

The robust graphite black aluminium housing provides durability and resistance to mechanical damage. The fanless design and fully enclosed housing guarantee reliability and energy efficiency. The front panel meets the IP65 standard, protecting against dust and water, making it ideal for use in harsh environments. The unit is panel mountable, increasing its flexibility in a variety of operating environments.
The NCS-PA156P-J2 supports a wide range of power supply voltages from 12 V to 36 V DC, increasing its flexibility for various applications. The device is compatible with Android 12.0, Linux 5.10, Ubuntu and Debian operating systems, allowing customisation to meet specific user needs.
Thanks to its high shock and vibration resistance, the NCS-PA156P-J2 panel computer provides a reliable solution for automation, communication, energy and other applications requiring high quality and durability.
Features:

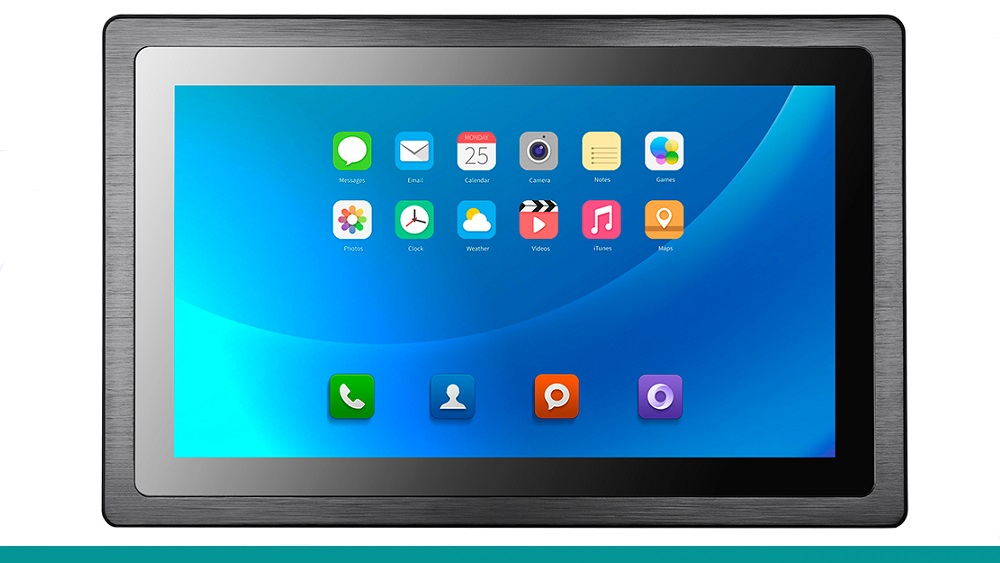

- 3mm super thin front bezel, best for embedded cabinet
- pure flat panel IP65 dust-proof and waterproof
- RK3588 eight-core high-end CPU, built-in NPU with 6TOPS AI computing power
- support 8K ultra-high definition display, support double display can be customized four display
- provide SDK package, support secondary development and upgrade customization
Specification:
- screen parameters:
- LCD size: 15.6" TFT LCD
- resolution: 1920 x 1080
- viewing angle: 85/85/85/85 (L/R/U/D)
- colour: 16.7M
- brightness: 300 cd/m²
- contrast ratio: 800:1
- touch parameters:
- touch type: 10-point touch projection capacitive touch screen
- transmittance: ≥88%
- input mode: handwriting or capacitance pen
- controller communication: USB
- hardware configuration:
- CPU: RK3588, 8-core 64-bit (4×Cortex-A76+4×Cortex-A55) at 2.4GHz
- memory: 8G DDR3 (optional: 16G)
- storage: 64G eMMC (optional: 128G)
- GPU: Mali-G610 MC4
- NPU: built-in NPU with 6TOPS AI computing power
- Wi-Fi: dual-band WiFi
- bluetooth: bluetooth support
- operating system: Android 12.0/Linux5.10/Ubuntu/Debian
- physical characteristics:
- overall dimensions (WxHxD): 420 x 269 x 70 mm
- size of opening (WxH): 403 x 252 mm

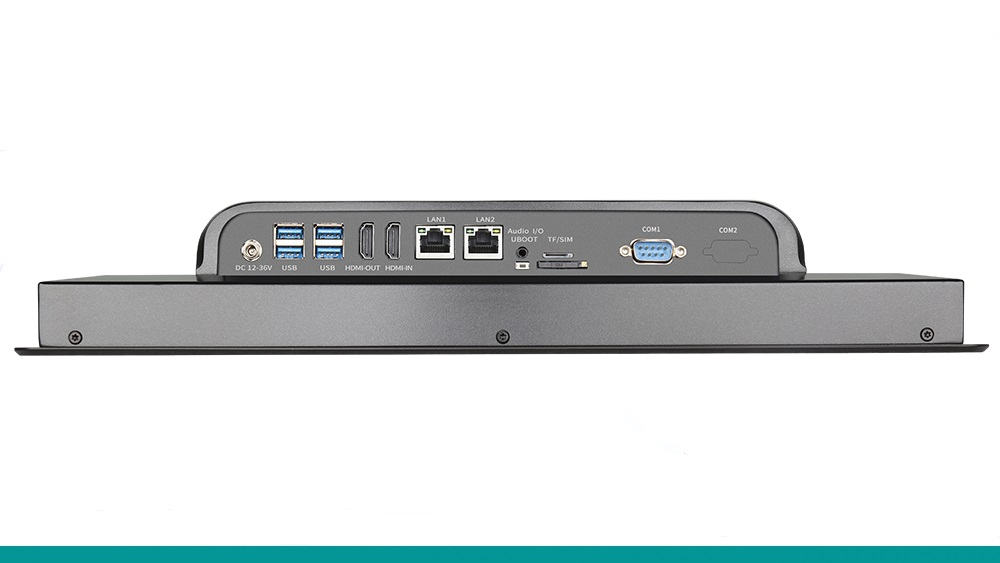

- interface parameters:

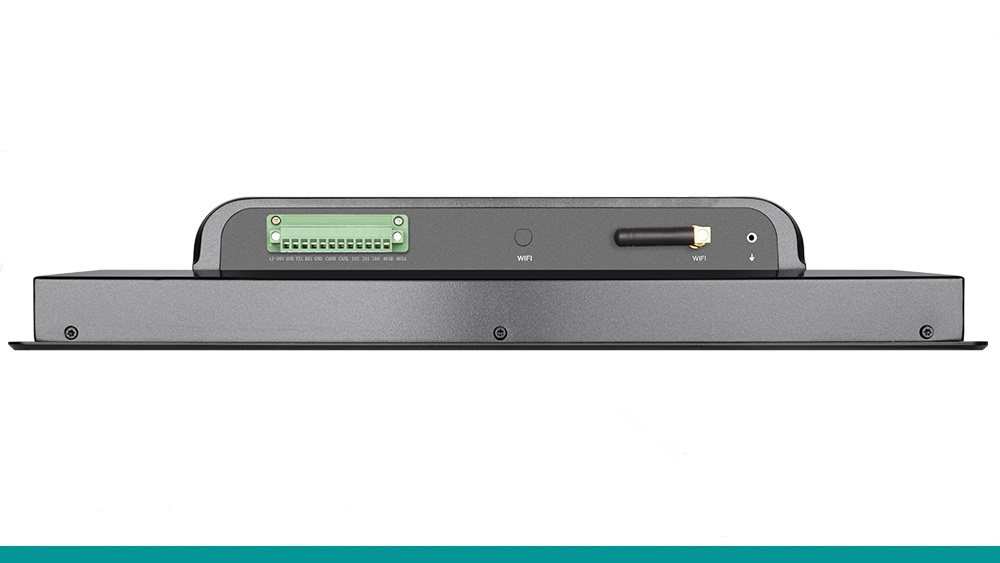

- industrial terminals: 1 x 12P Phoenix terminal (power supply / RS232 x 1/ RS485 x 1 / CAN x 1 / GPIO x 3)
- power interface: 1 x DC2.1, supporting 12V-36V power input
- USB: 4 x USB3.0
- TF: 1 x TF card standard interface
- SIM: 1 x SIM, supporting various formats (depending on 3G/4G module)
- HDMI: 1 x HDMI out, 1 x HDMI in, support 8K ultra HD display
- network interface: 2 x LAN, dual Gigabit adaptive Ethernet interfaces
- audio interface: 1 x Audio I/O, support audio input and output
- reset key: 1 x UBOOT
- COM: 1 x RS232
- WiFi antenna: 1 x WiFi antenna
- grounding column: 1 x grounding post (GND)
- environmental:
- working temperature: -10°C~60°C
- storage temperature: -20°C~70°C
- relative humidity: 95% Non-Condensing
- vibration protection: IEC 60068-2-64, Random, 5~500 Hz, 1 hr/axis
- impact protection: IEC 60068-2-27, half sine wave, lasting for 11ms
- product certification: CCC/CE/FCC/EMC/CB/ROHS
- waterproof grade: the front panel reaches IP65 protection level
- power parameters:
- warranty: 3 years
