The NCS-PA101P-J5 is a compact 10.1-inch panel PC designed for complex industrial and automation environments. Equipped with a 1.8GHz RK3288 Cortex-A17 quad-core processor and 4GB of DDR3 RAM, it provides the high performance needed to support demanding applications. A 32 GB eMMC drive offers fast data access, with options to expand to 16 GB or 64 GB, adapting to individual user needs.

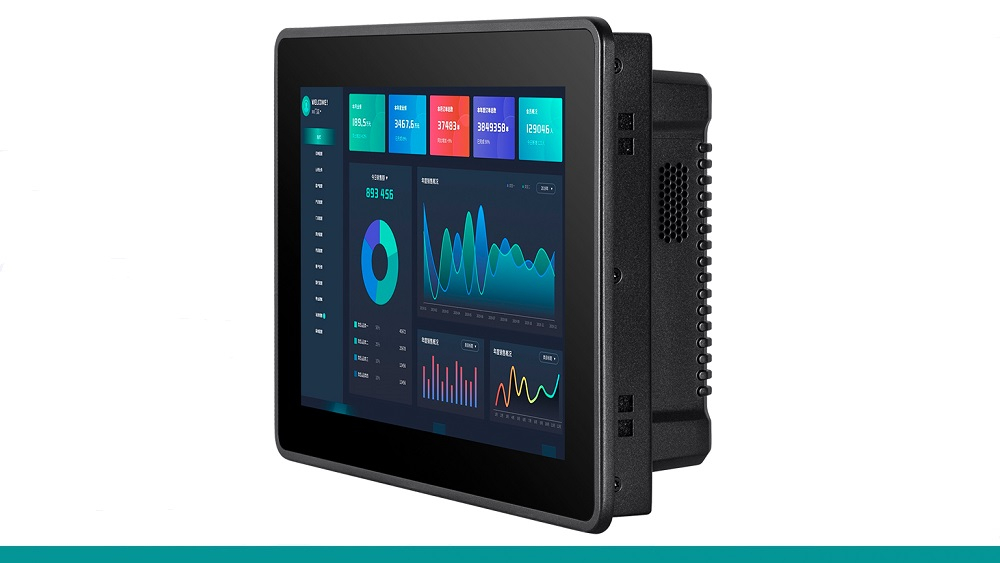

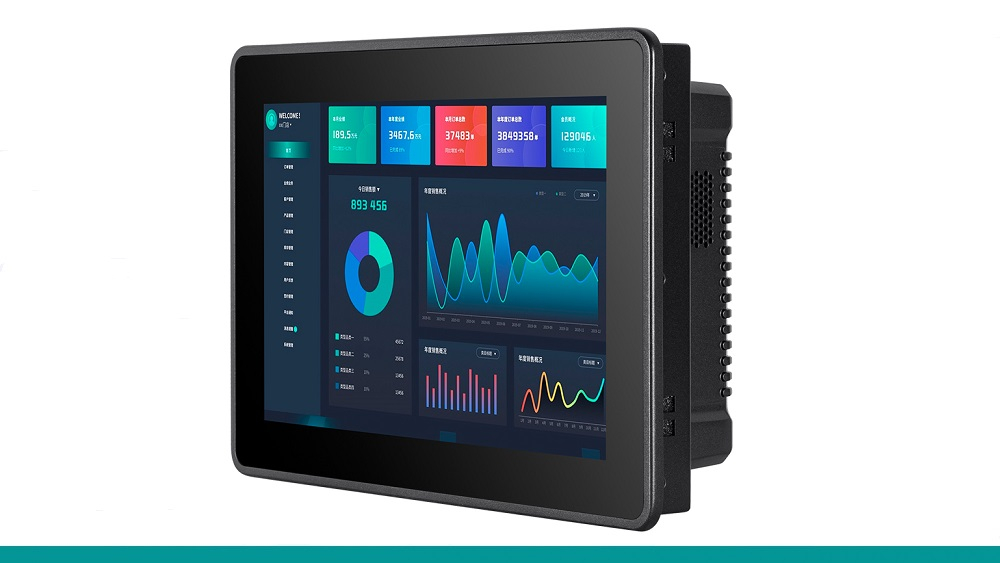

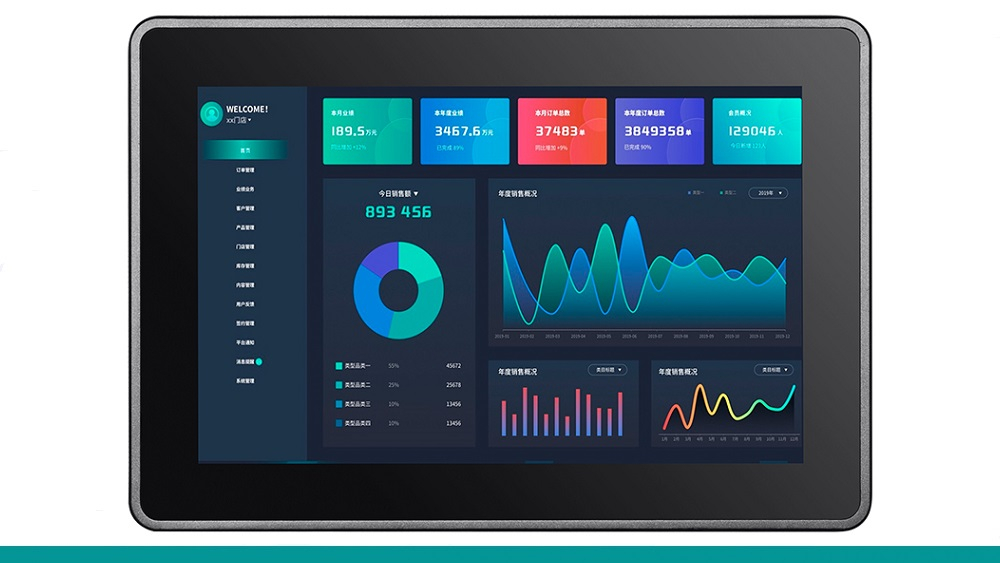

The device features a 10.1-inch LED-backlit TFT LCD screen with a maximum resolution of 800×1280, providing excellent image quality. Wide viewing angles of 85° in each direction, a brightness of 300 cd/m² and a contrast ratio of 1000:1 guarantee a clear and crisp image in a variety of lighting conditions. The 10-point capacitive touchscreen with ≥88% light transmission enables precise and intuitive operation.

The computer offers a rich set of interfaces, including 1 USB host port, 1 USB OTG port, audio output/input, HDMI output, TF card slot, SIM card slot and UBOOT interface. Built-in Wi-Fi and Bluetooth 5.0 enable wireless communication with other devices, increasing application flexibility.

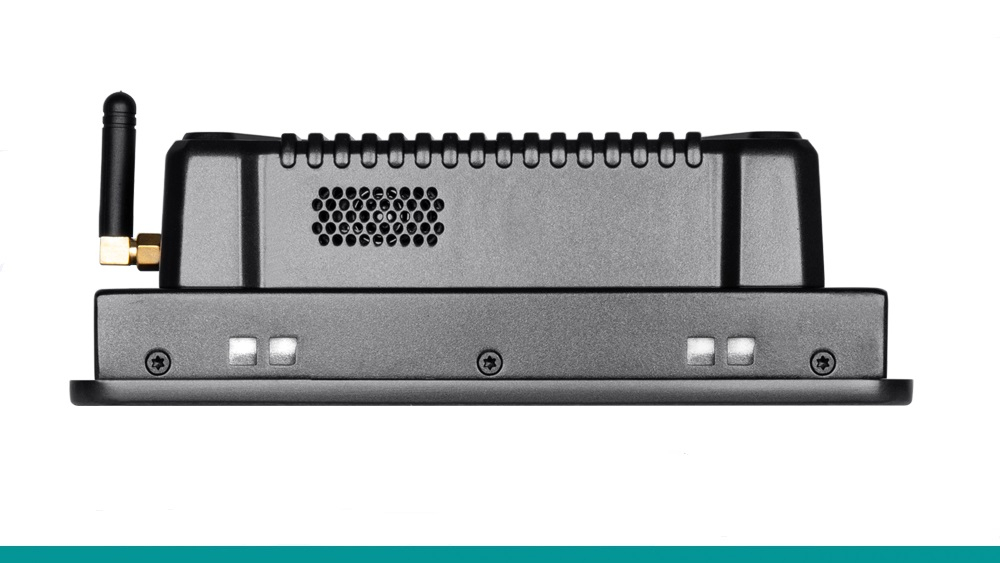

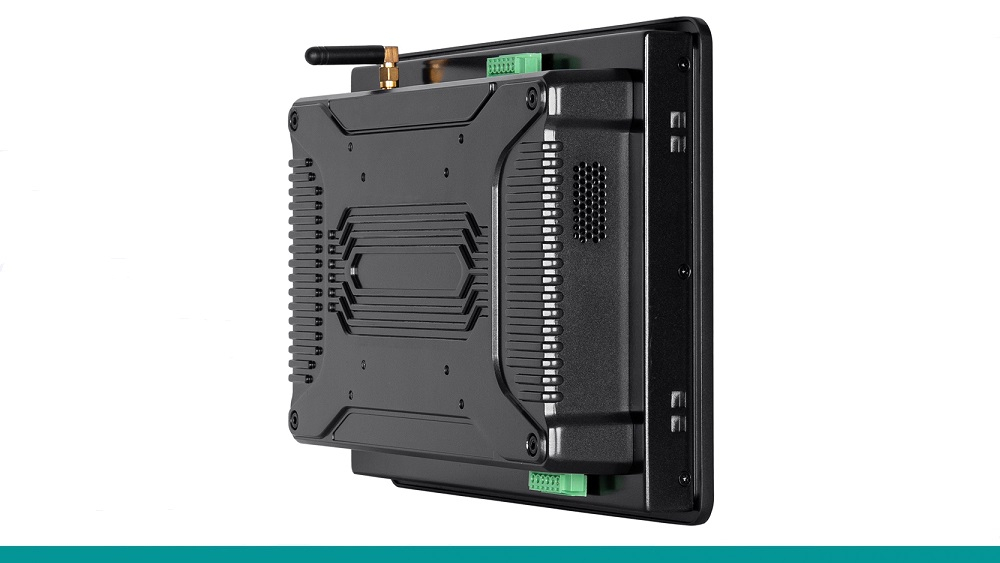

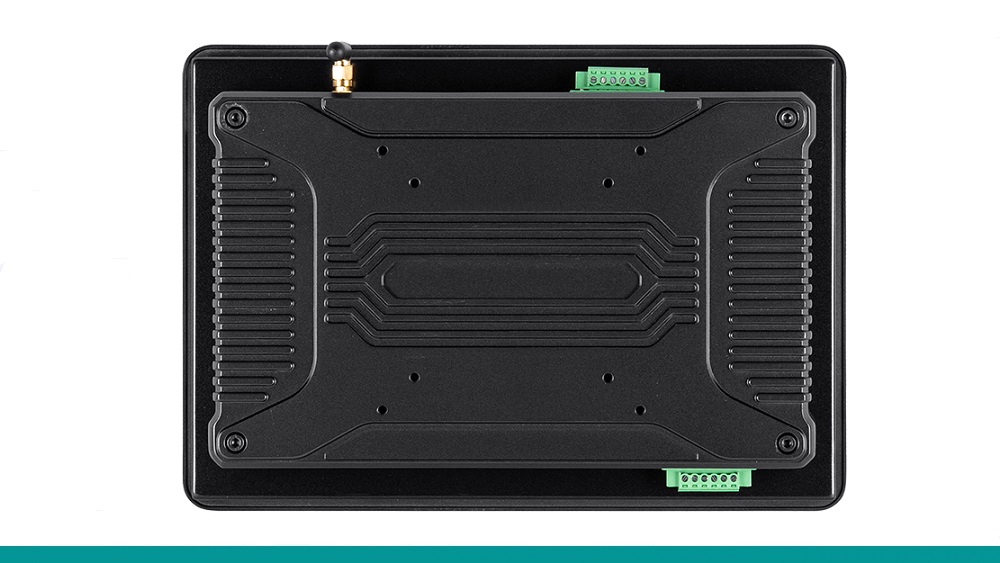

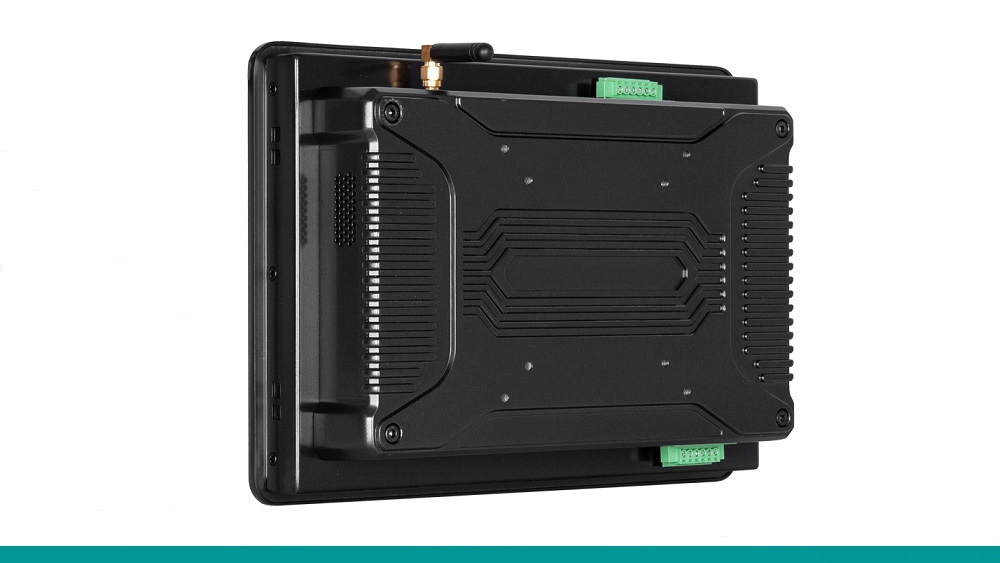

A robust aluminium housing with efficient heat dissipation and a fanless design ensure durability and reliability in harsh environments. The front panel meets IP65 standards, protecting against dust and water, making it ideal for demanding industrial environments. The unit is designed to operate in temperatures from -10°C to 60°C, expandable to -20°C ~ 70°C, allowing it to be used in extreme environments.

The NCS-PA101P-J5 supports Android 7.1/10.0/12.0 operating systems and various Linux distributions such as Ubuntu 18.04/20.04 or Debian 1.0, allowing customisation to meet specific user needs. With its high shock and vibration resistance in accordance with IEC 60068-2-27 and IEC 60068-2-64, the NCS-PA101P-J5 panel PC provides a reliable solution for automation, communication, energy and other applications requiring high quality and durability.

Features:

• industrial aesthetic design, independent mold opening
• aluminum alloy - body die casting, efficient heat dissipation
• self-developed ARM architecture industrial motherboard
• pure flat panel IP65 dust-proof and waterproof
• comply with EMC anti-electromagnetic interference standard
• provide SDK package and support secondary development

Specification:

• screen parameters:
  • LCD size: 10.1" TFT LCD
  • resolution: 800 x 1280
  • viewing angle: 85/85/85/85 (L/R/U/D)
  • colour: 16.7M
  • brightness: 300 cd/m²
  • contrast ratio: 1000:1
• touch parameters:
  • touch type: 10-point touch projection capacitive touch screen
  • transmittance: ≥88%
  • input mode: handwriting or capacitance pen
  • controller communication: USB
• hardware configuration:
  • CPU: RK3288, Cortex-A17 quad-core, 1.8GHz
  • memory: 4G DDR3 (optional: 2G/8G)
  • storage: 32G eMMC (optional: 16G/64G)
  • GPU: Mali-T764
  • broad pressure: supporting 12V power input
  • Wi-Fi: support WiFi
  • bluetooth: BT5.0
  • operating system: Android 7.1/10.0/12.0/Linux4.4/Ubuntu18.04/20.04/Debian1.0
• physical characteristics:
  • overall dimensions (WxHxD): 267.5 x 186.28 x 61 mm
  • size of opening (WxH): 257.5 x 176.28 mm

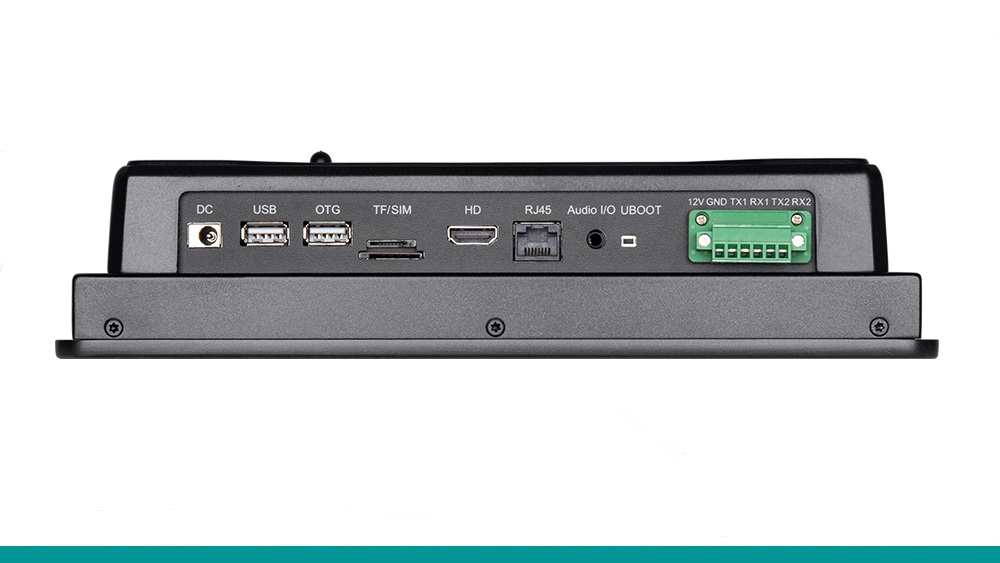

• interface parameters:
  • power interface 1: 2 x industrial terminals, supporting 12V power input
  • power interface 2: 1 x DC2.1, supporting 12V power input
  • USB: 1 x USB HOST，1 x USB OTG
  • TF: support TF expansion card (1 x TF card slot)
  • SIM: 1 x SIM, supporting various formats (depending on 3G/4G module)
  • HDMI: 1 x HDMI, supporting HDMI data output, up to 4K
  • network interface: 1 x LAN, 10M/100M/1000M adaptive Ethernet
  • audio interface: 1 x Audio I/O, support audio input and output
  • reset key: 1 x UBOOT
  • WiFi antenna: 1 x WiFi antenna
• environmental:
  • working temperature: -10°C~60°C
  • storage temperature: -20°C~70°C
  • relative humidity: 95% Non-Condensing
  • vibration protection: IEC 60068-2-64, random, 5~500 Hz, 1 hr/axis
  • impact protection: IEC 60068-2-27, half sine wave, lasting for 11ms
  • product certification: CCC/CE/FCC/EMC/CB/ROHS
  • waterproof grade: the front panel reaches IP65 protection level
• power parameters:
  • power input: DC 12V
  • static power: 18W
• warranty: 3 years
