The NCS-PA101P-J2 industrial panel computer is a versatile and reliable solution designed to operate in demanding industrial environments. Equipped with a quatro-core RK3588 (Cortex-A55) processor clocked at 2.0 GHz, it offers exceptional performance and smooth operation, even when handling complex applications. Available configurations with 8GB or 16GB of DDR3 RAM and 64GB of eMMC memory (with the option to expand up to 128GB) ensure optimal performance depending on your needs.

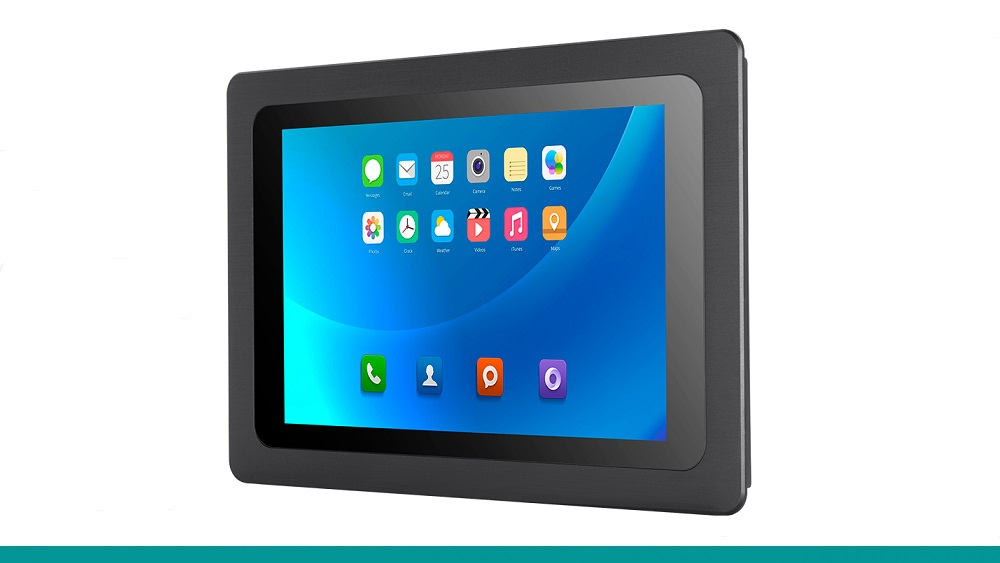

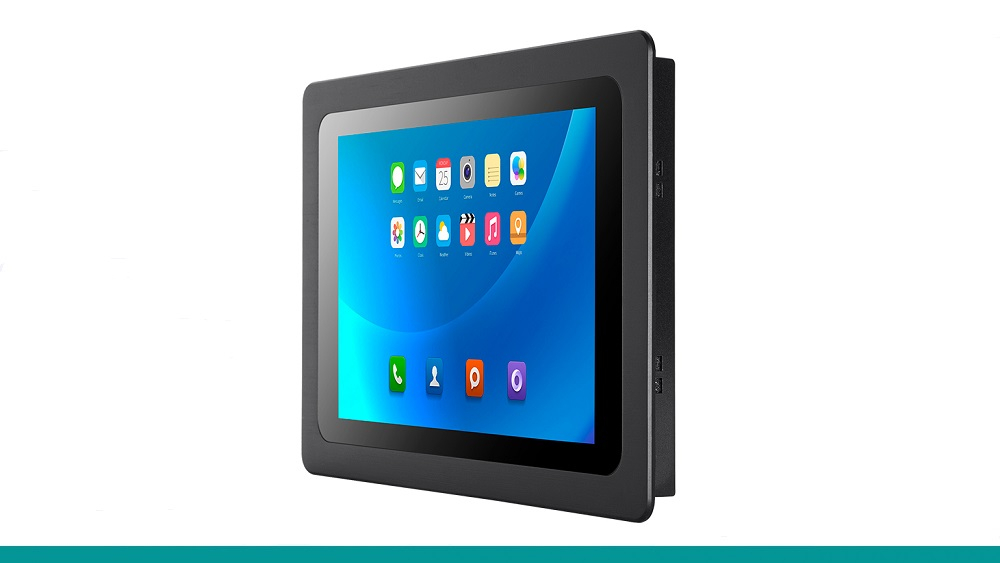

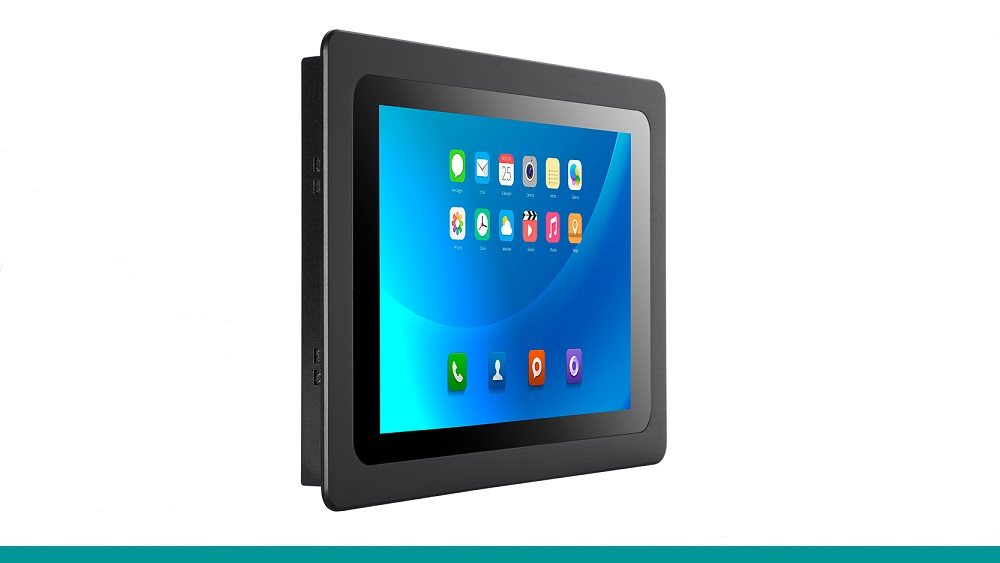

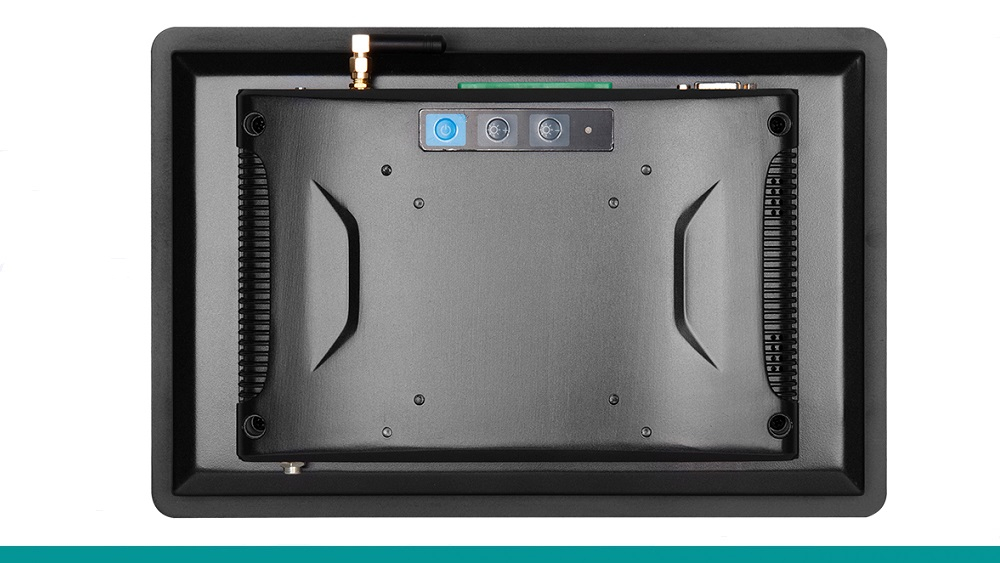

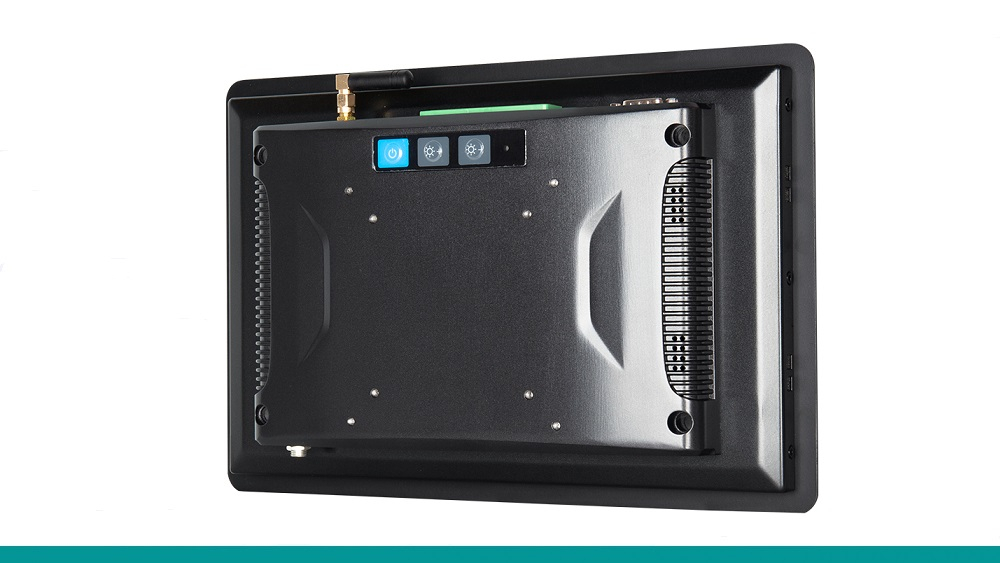

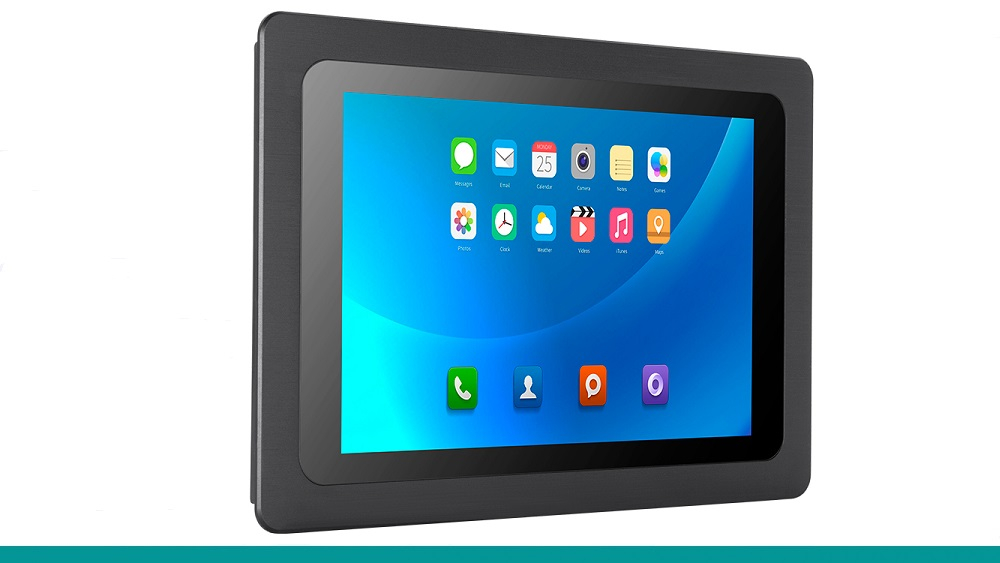

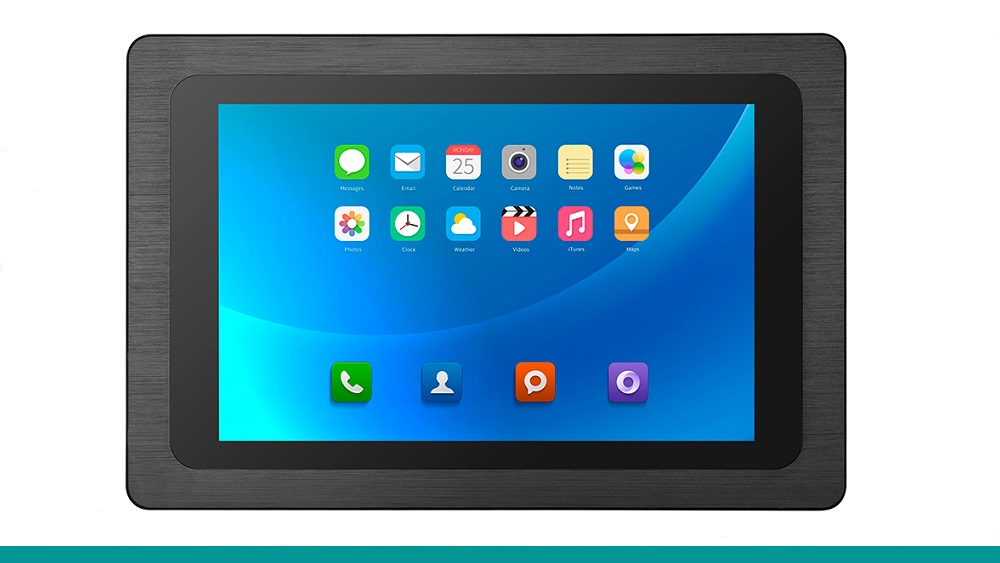

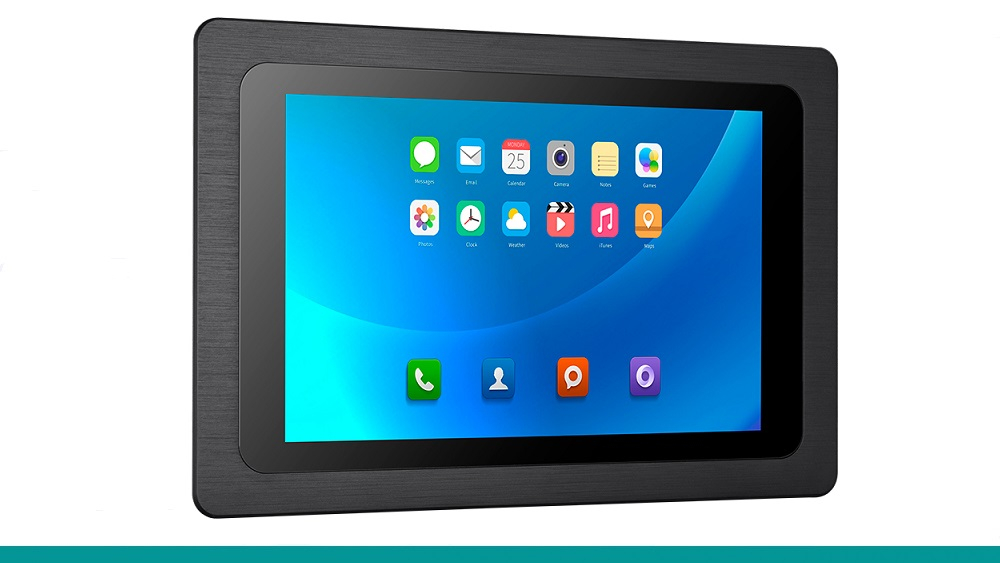

The NCS-PA101P-J2 computer features a rugged, fanless design encased in an ultra-thin aluminum frame just 3 mm thick. The IP65-rated front panel guarantees dust and water resistance for trouble-free use in harsh environments. The 10.1-inch LED-backlit TFT LCD offers 800x1280 resolution, 1000:1 contrast ratio and 300 cd/m² brightness, providing a readable image even in low light. For applications requiring even better visibility, variants with increased brightness up to 1000 cd/m² are available. Wide viewing angles (85x85x85x85) ensure comfortable viewing from different positions. A 10-point capacitive touchscreen with high light transmission (≥88%) and Mohs hardness of 7 guarantees precise and intuitive operation.

The NCS-PA101P-J2 panel computer offers a wide range of interfaces, including two Gigabit Ethernet LAN ports, four USB 3.0 ports, RS-232 port, audio input/output, HDMI input and output, TF card slot, SIM slot and Phoenix 12P connector (power, RS-232, RS-485, CAN, GPIO). This makes the device easy to integrate with various systems and peripherals. Support for a wide range of power supply voltages (12V~36V DC) further increases application flexibility.

The NCS-PA101P-J2 computer is designed to operate in a wide temperature range (-10 ~ 60°C, and in WT options -20 ~ 70°C) and high humidity (up to 95% @ 40°C). It meets EMC (CE, FCC Class B, BSMI, EN60601-1-2, UKCA) and safety (CB, UL, CCC, UKCA) standards, confirming its high quality and reliability. Shock resistance (10G) and vibration resistance (5~500Hz, 2Grms) according to IEC standards guarantees stable operation even in harsh environments.

Features:

• 3mm super thin front Bezel, best for embedded cabinet
• pure flat panel IP65 dust-proof and waterproof
• RK3568 quatro-core high-end CPU，built-in independent NPU with 6TOPS AI computing power
• support 8K ultra-high definition display, support double display can be customized four display
• provide SDK package, support secondary development and upgrade customization

Specification:

• screen parameters:
  • LCD size: 10.1" TFT LCD
  • resolution: 800 x 1280
  • viewing angle: 85/85/85/85 (L/R/U/D)
  • colour: 16.7M
  • brightness: 300 cd/m²
  • contrast ratio: 1000:1
• touch parameters:
  • touch type: 10-point touch projection capacitive touch screen
  • transmittance: ≥88%
  • input mode: handwriting or capacitance pen
  • controller communication: USB
• hardware configuration:
  • CPU: RK3568, quatro-core 64-bit (4×Cortex-A55) at 2.0GHz
  • memory: 8G DDR3 (optional: 16G)
  • storage: 64G eMMC (optional: 128G)
  • GPU: Mali-G52
  • NPU: built-in NPU with 6TOPS AI computing power
  • Wi-Fi: dual-band WiFi
  • bluetooth: Bluetooth support
  • operating system: Android 12.0/Linux5.10/Ubuntu/Debian

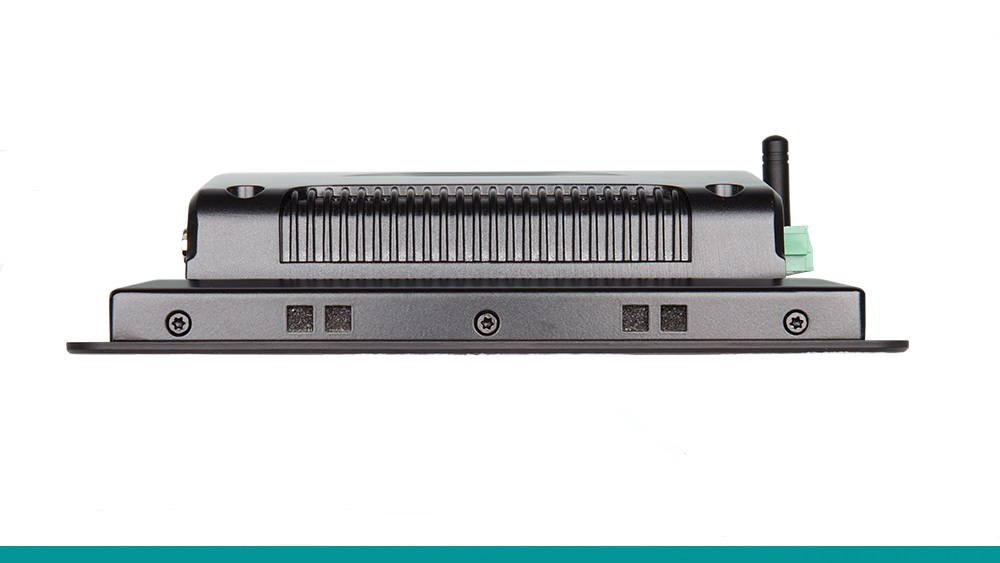

• physical characteristics:
  • overall dimensions (WxHxD): 293.6x 193.6x 53.5 mm
  • size of opening (WxH): 276.5 x 176.5 mm

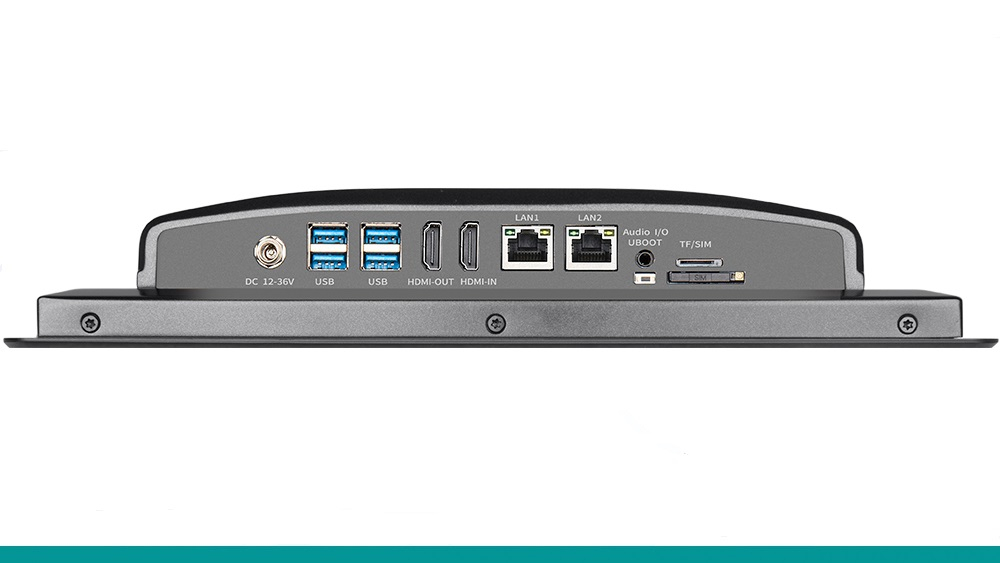

• interface parameters:

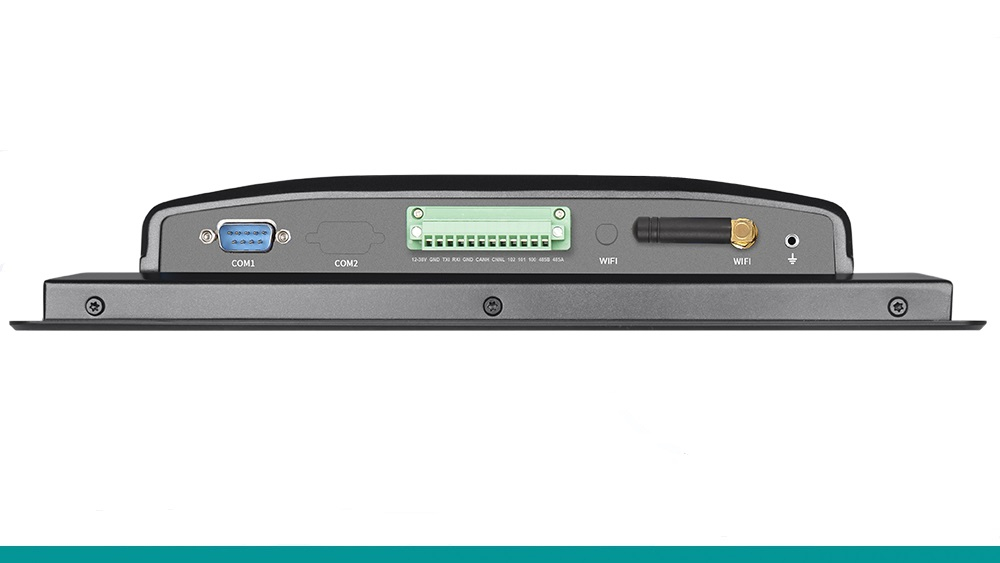

  • industrial terminals: 1 x 12P Phoenix terminal (power supply / RS232 x 1/ RS485 x 1 / CAN x 1 / GPIO x 3)
  • power interface: 1 x DC2.1, supporting 12V-36V power input
  • USB: 4 x USB3.0
  • TF: 1 x TF card standard interface
  • SIM: 1 x SIM, supporting various formats (depending on 3G/4G module)
  • HDMI: 1 x HDMI out, 1 x HDMI in, support 8K ultra HD display
  • network interface: 2 x LAN, dual Gigabit adaptive Ethernet interfaces
  • audio interface: 1 x Audio I/O, support audio input and output
  • reset key: 1 x UBOOT
  • COM: 1 x RS232
  • WiFi antenna: 1 x WiFi antenna
  • grounding column: 1 x grounding post (GND)
• environmental:
  • working temperature: -10°C~60°C
  • storage temperature: -20°C~70°C
  • relative humidity: 95% Non-Condensing
  • vibration protection: IEC 60068-2-64, Random, 5~500 Hz, 1 hr/axis
  • impact protection: IEC 60068-2-27, Half sine wave, Lasting for 11ms
  • product certification: CCC/CE/FCC/EMC/CB/ROHS
  • waterproof grade: the front panel reaches IP65 protection level
• power parameters:
  • power input: DC 12V-36V
• warrranty: 3 years
