The NCS-B-J/1215U is an advanced, compact embedded PC designed for demanding industrial environments. Equipped with a 1.2 GHz Intel Core i3-1215U processor and integrated Intel Iris Xe Graphics 64, it provides the high performance needed to support complex applications. It has 8GB of DDR4 memory (expandable up to 32GB) and a 256GB SSD (optional 64GB/128GB/512GB SSD, 1TB/2TB HDD) to store large amounts of data.

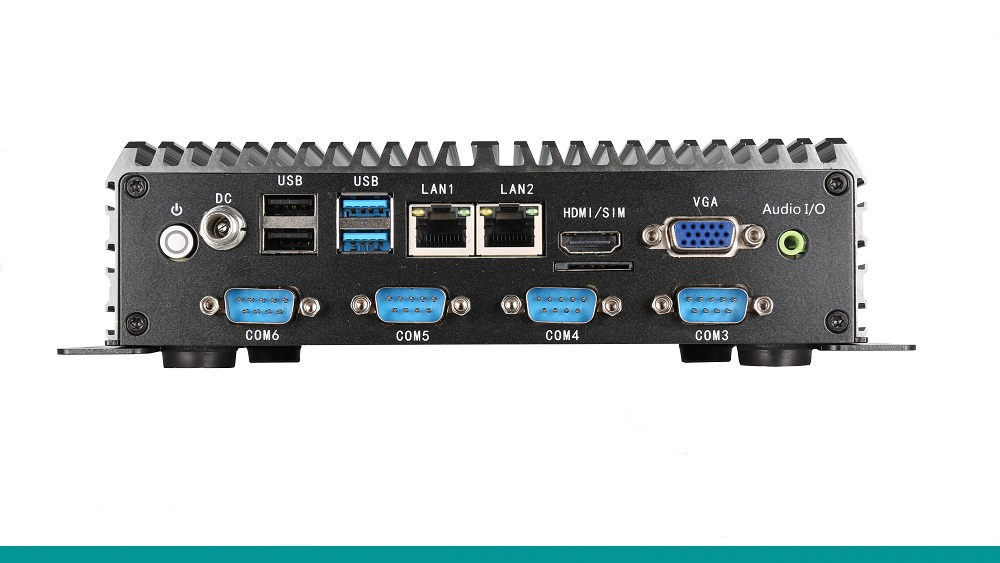

The device offers a rich set of interfaces, including two 10/100/1000M LAN Ethernet ports, four USB 2.0 ports, two USB 3.0 ports, one audio input/output, HDMI port, VGA port, SIM card slot, power port, Phoenix 12P connector and two Wi-Fi antenna connectors. Additionally, the computer supports wireless connectivity via dual band 2.4GHz+5GHz Wi-Fi and optional Bluetooth 4.0.

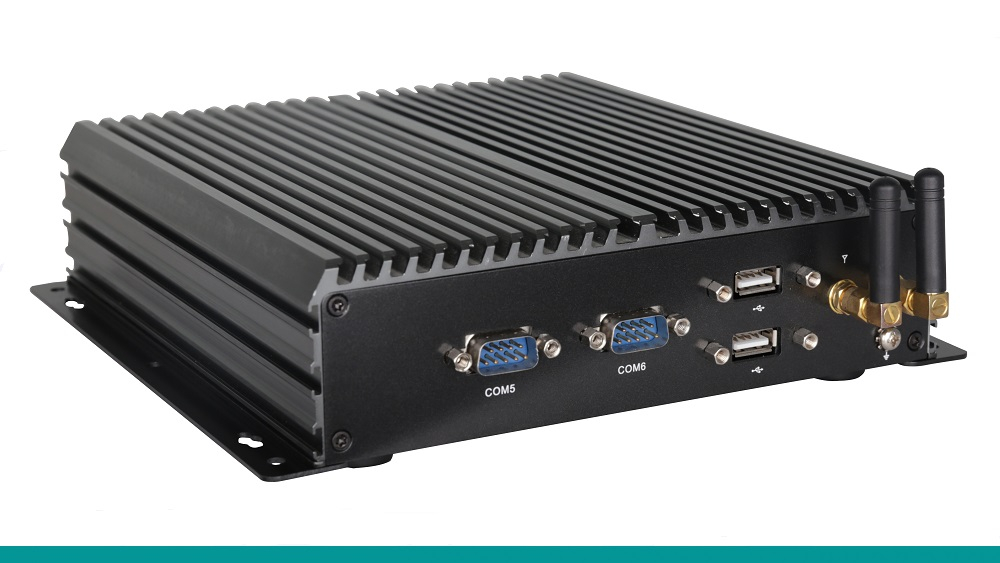

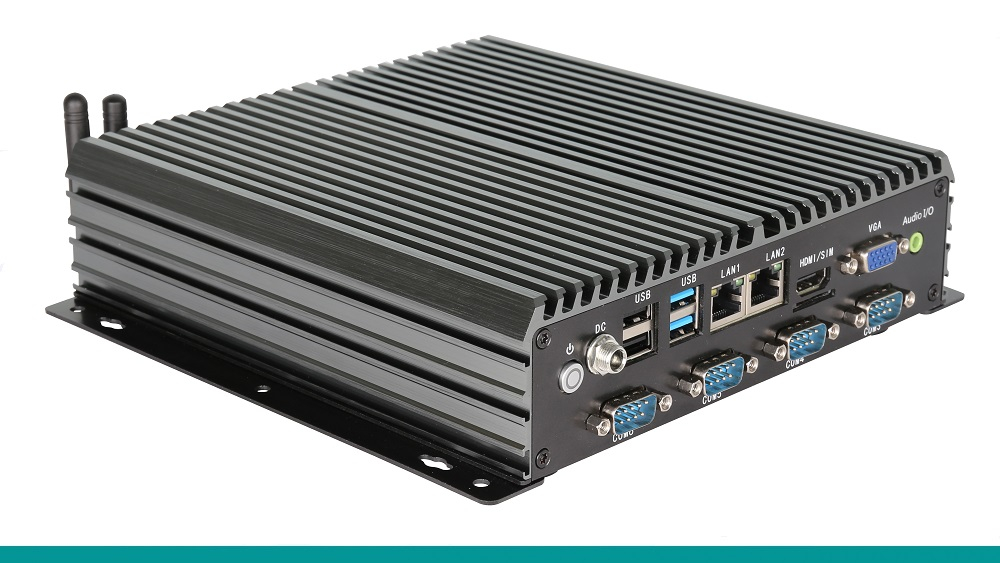

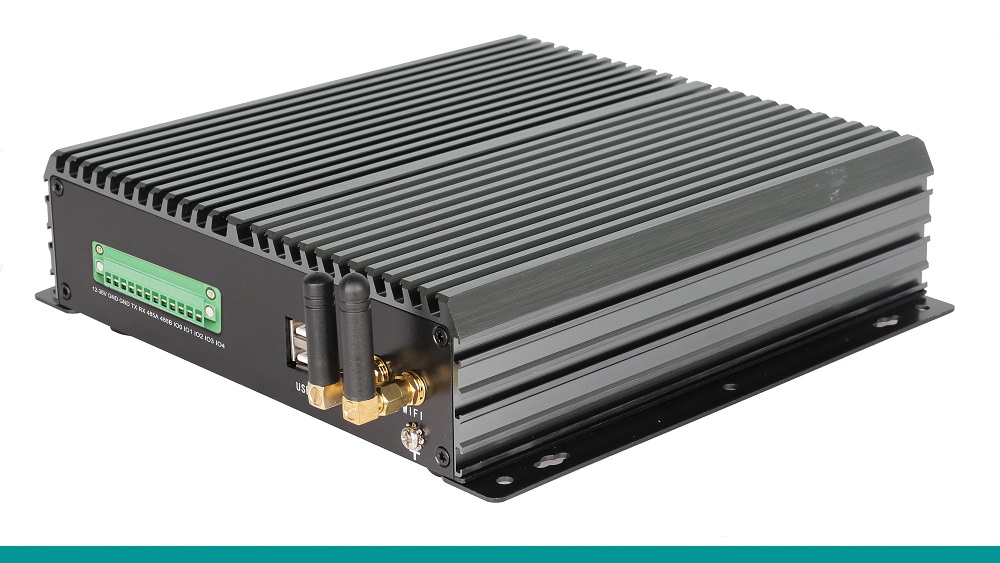

The robust graphite black aluminium casing provides durability and resistance to mechanical damage. The fanless design and fully enclosed housing guarantee reliability and energy efficiency. The unit is suitable for desktop or rack mounting, increasing its flexibility in a variety of operating environments.

The NCS-B-J/1215U supports a wide range of power supply voltages from 12 V to 36 V DC, increasing its flexibility for various applications. The device is compatible with Windows 10/11, Ubuntu 20.04/22.04, Redhat 8.7, Debian 12.2 and Linux Mint operating systems, allowing customisation to meet specific user needs.

With its high shock and vibration resistance, the NCS-B-J/1215U embedded computer provides a reliable solution for automation systems, communications, energy and other applications requiring high quality and durability.

Features:

• delicate and compact appearance, convenient installation
• self-developed X86 architecture motherboard with multiple options
• fanless totally enclosed design, low power consumpition of the whole machine
• high integration, realizing WiFi/Bluetooth/Ethernet triple connection
• abundant interfaces to meet the needs of various external equipment
• industrial protection grade, stable system operation

Specification:

• CPU: Intel Core i3 1215U, 1.2GHz
• integrated graphics: Intel Iris Xe Graphics 64
• memory/RAM: 8GB DDR4 (supports up to 32GB)
• storage: 256GB SSD (64GB/128GB/512GB SSD, 1T/2T HDD optional)
• Wi-Fi: Dual Band 2.4GHz+5GHz
• Bluetooth: Bluetooth 4.0 (optional)
• operating system: WIN10/11, Ubuntu20.04/22.04/Redhat8.7/Debian12.2/Linux-Mint
• audio chip: onboard Realtek ALC662 HD audio decoding controller
• chip card: onboard 1 * Realtek RTL 811E Gigabit network card
• Interface:
  • powerSW: 1x PowerSW
  • power interface 1 x Threaded DC port (diameter: 5.5 x 2.5mm)

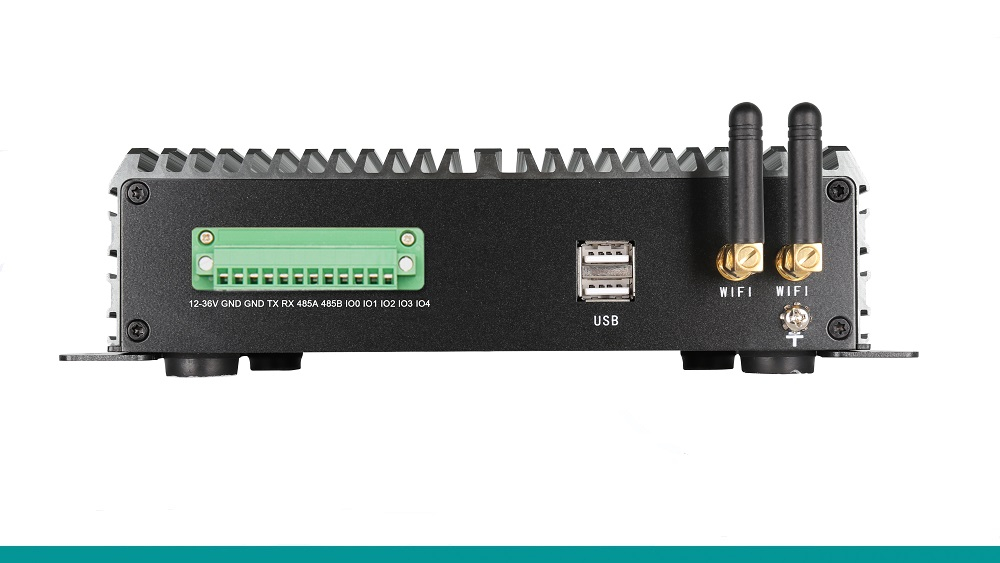

  • Phoenix terminal 1 x 12P Phoenix terminal (power supply/RS232 x1/RS485 x1/GPIO x5)
  • USB: 4 x USB 2.0, 2 x USB 3.0
  • Ethernet: 2 x LAN, 10M/100M/1000M adaptive Ethernet
  • HDMI: 1 x HDMI, supporting HDMI data output, up to 4K
  • SIM: 1 x SIM, supporting various formats (depending on 3G/4G module)
  • VGA: 1 x VGA
  • audio: 1 x audio I/O, support audio input and output
  • serial port: 6 x COM (5x RS232, 1x RS232/422/485)
  • Wi-Fi antenna: 2 x Wi-Fi antenna
  • grounding: 1 x GND
• environmental:
  • operating temperature: -10°C to 60°C
  • storage temperature: -20°C to 70°C
  • relative humidity: 95% non-condensing
• other:
  • power adapter: 24V/4A
  • chassis: aluminum alloy on the case surface has good seismic resistance and impact resistance
  • colour: gun black
  • overall size: 199.5 x 213.1 x 58.3mm (length x width x height)
  • installation method: support desktop and rack installation
• warranty: 3 years
