KNP500S-15R
Manufacturer's P/N: KNP500SJTB-15R
Manufacturer: Hitano
Show more information about the brand Hitano

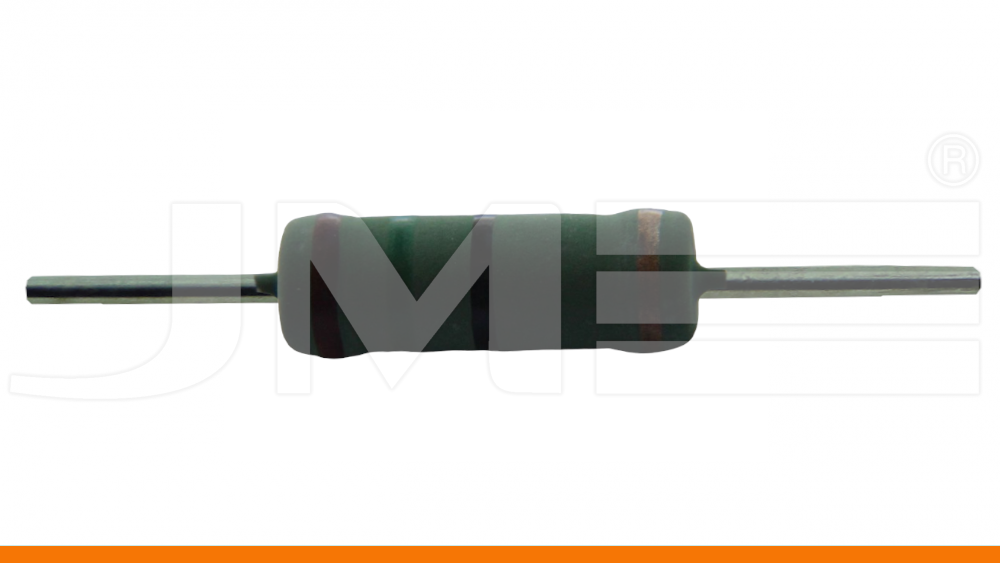

Resistor 5% 5W 400ppm fi=6,0mm L=17,5mm
Resistance15R
Chassis0617
Tolerance5%
AssemblyTHT
Maximum power5W
Standard packaging:
1000 pcs.
Minimum order:
1000 pcs.
Minimum batch:
1000 pcs.
In stock:
Ask

Features:

  • small size and low cost
  • super heat dissipation, instant overload capability
  • standard tolerance: ±1%, ±5%
  • standard Value: E24 series as range below
  • miniature size available (As KNP-S type)
  • available in non-inductive style (As NKNP type)
  • flameproof coating, silicone paint meet UL 94-V-0
  • operating temperature : -55ºC ~+275ºC

Specification:

  • dimensions (LxDxH): 17.0±1.0 x 6.0±1.0 x 33 ±3.0 mm
  • power rating: 5W
  • tolerance: 5%
