ICP-103450-M20A/MOLICEL
Manufacturer's P/N: ICP-103450-M20A/MOLICEL
Manufacturer: E-One Moli Energy

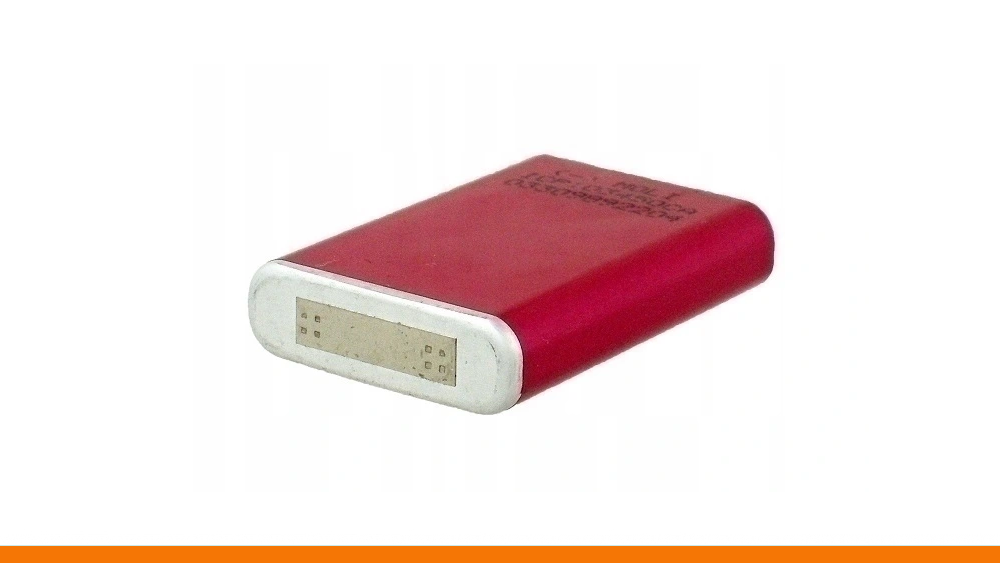

Lithium-ion rechargeable battery MOLICEL ICP-103450-M20A 3.7V 2.0Ah
Cell typeaccumulator
Nominal voltage3,7V
Cell capacity [Ah]2000mA
Standard packaging:
100 pcs.
Minimum order:
1000 pcs.
Minimum batch:
1000 pcs.
In stock:
Ask

Specification:

  • typical capacity: 2000mAh
  • minimum capacity: 1900mAh
  • nominal voltage: 3.7V
  • charging voltage: 4.2V
  • discharge voltage: 3.0V
  • charge standard current: 2mA
  • maximum charge current: 6A
  • standard charge time: 1.5hr
  • max. discharge current: 4A
  • weight: 42g
  • operation temperature:
    • charge: 0℃～60℃
    • discharge: -30℃～60℃
