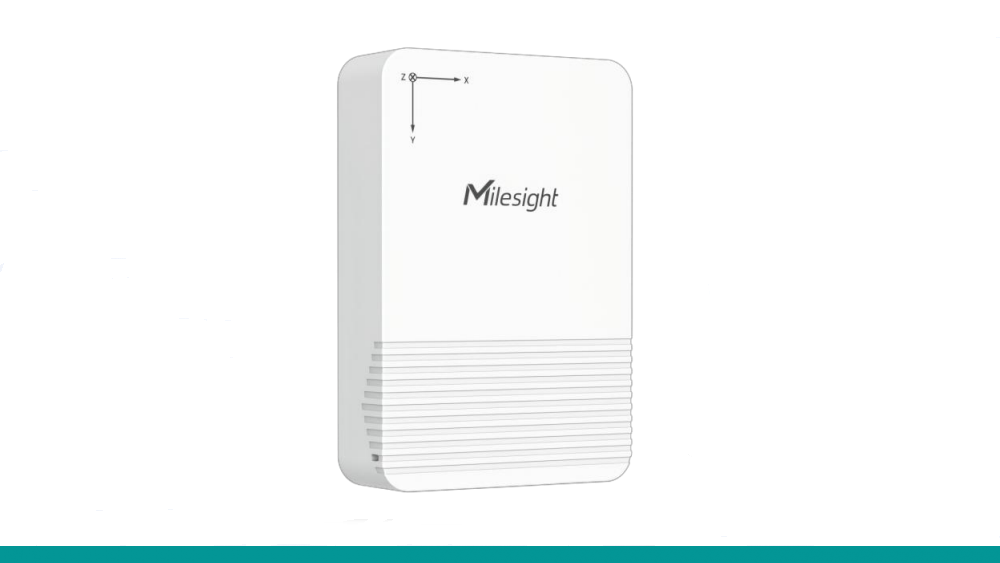

EM320-TILT is an LoRaWAN® tilt sensor mainly for angle measurement and asset movement detection. With a compact size and 3-axis accelerometer, EM320-TILT can be installed to the objects easily to measure its X, Y, Z tilt angles. In addition, EM320-TILT supports customizing initial position to detect movement based on angle changes and send threshold alarms. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can know the angles and tilt threshold alarms in real-time via browser or mobile app remotely. EM320-TILT can be widely used in tree monitoring, pole lean detection, landslide monitoring, etc.

• high accuracy and reliability
• flexible settings for versatile applications
• artful design and robust enclosure

Features:

• built-in MEMS accelerometer sensor to measure the 3-axis angles of any objects
• flexible threshold condition settings, suitable for different kinds of applications
• easy to install, suitable for various types of objects as trees, poles, grounds, etc.  IP67 waterproof enclosure for outdoor applications

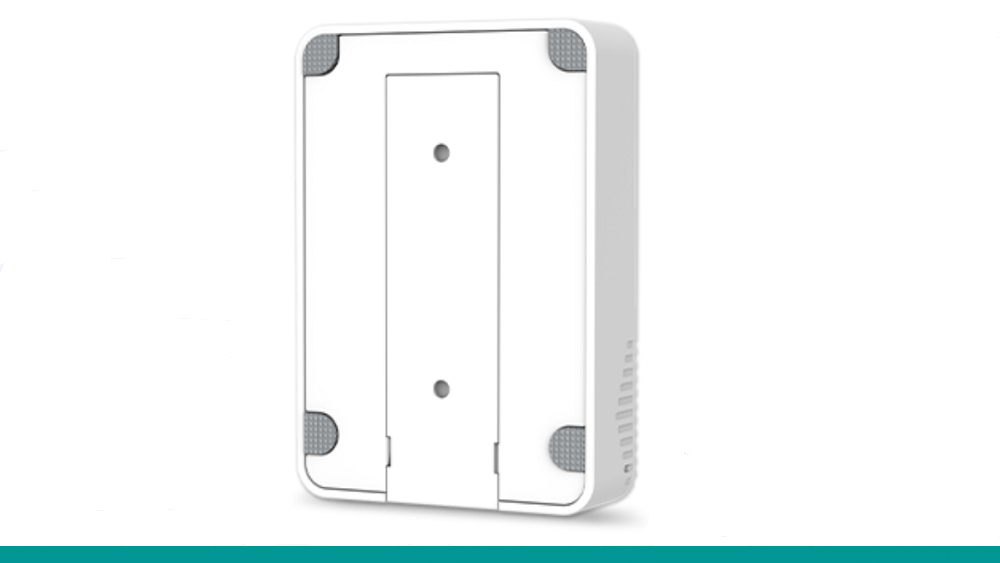

• anti-theft design on back cover to secure firm and sturdy installation
• ultra-wide-distance wireless transmission up to line of sight of 15 km
• equipped with NFC for one touch configuration
• function well with standard LoRaWAN® gateways and network servers
• compliant with Milesight IoT Clou

Physical characteristics:

• power supply: 2 × 2700 mAh ER14505 Li-SOCl2 batteries
• battery Life: ≥3 Years (10min reporting interval, SF10)
• operating temperature: -30°C to +60°C
• relative humidity: ≤95% (non-condensing)
• ingress protection: IP67
• dimension: 85 × 58 × 18 mm
• material & color: PC + ABS, White
• installation: wall

High accuracy and reliability

EM320-TILT utilizes the advanced MEMS Accelerometer to deliver high accuracy and stable measurement of the tilt angle of 3 axis X, Y, and Z. With a wide measurement range of -90° – +90°, EM320-TILT can achieve an ultra-high resolution of 0.01° and accuracy of ±1°.

Flexible settings:

• up to 36 triggers: EM320-TILT supports up to 36 customized trigger alarms based on the angle or inclinations on X, Y and Z, enabling various applications and providing great flexibility.
• relative initial position: instead of pre-fixed position, EM320-TILT supports customizing initial position to detect angle changes and send threshold alarms, facilitating the installation and enhancing user experience.

Safeguard in various applications

Tilt angle and inclination monitoring is important for safety and structural integrity, as any changes in the angle of inclination can indicate potential issues with the structure's stability. Tilt sensing will send alerts to people to predict and track the status of specific objects.

• tree bending monitoring
• barrier gate monitoring
• cranes and construction machines monitoring

Artful design and robust enclosure: EM320-TILT is equipped with IP67 rated enclosure which enables it to function properly even in the most demanding environments.

LoRaWAN® based:

• penetrating signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
• high compatibility: compliant with standard LoRaWAN® gateways and network servers

Cloud Data Management Milesight IoT Cloud:

• data visualization dashboard: all figures in a glance
• automatic triggers: interactive collaboration with Milesight IoT sensors to realize scene-based automation
• regular reports & real-time alerts: data-based insights
• Android & iOS app: manage devices at your fingertips
