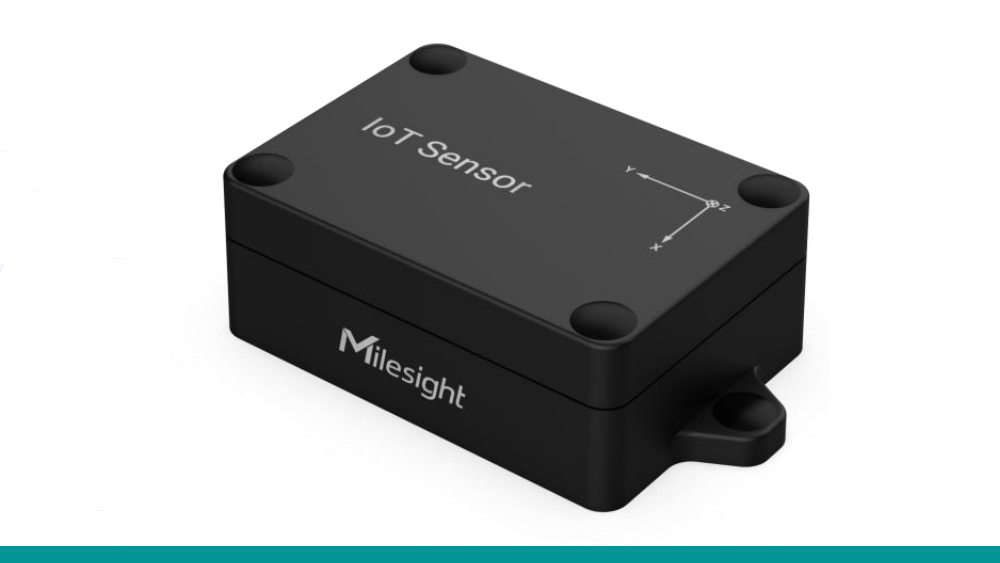

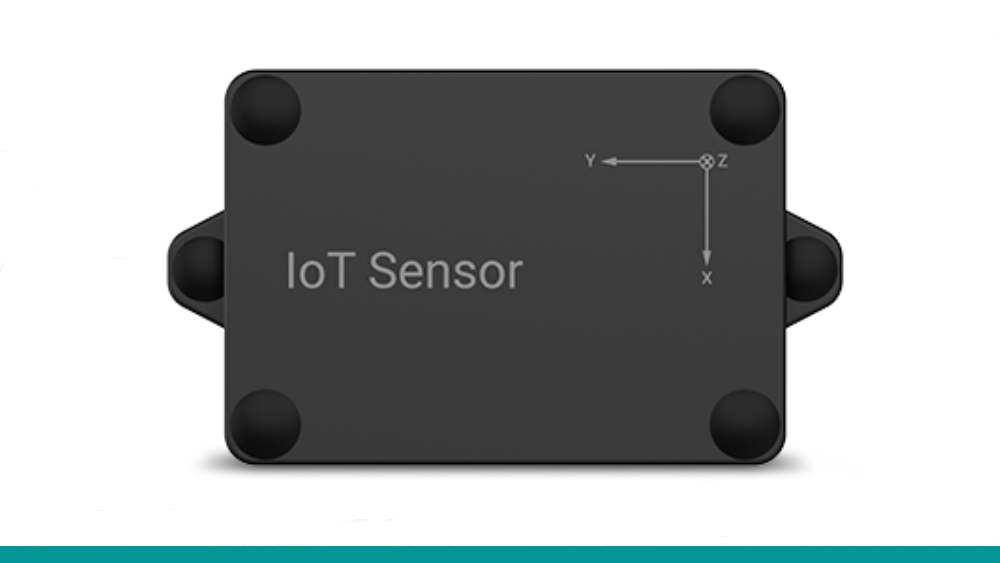

EM310-TILT is a LoRaWAN® tilt sensor mainly for angle measurement and asset movement detection. With a compact size and 3-axis accelerometer, EM310-TILT can be installed to the objects easily to measure its X, Y, Z tilt angles. It can also detect the movement based on angle changes and send threshold alarms. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can know the angles and tilt threshold alarms in real-time via browser or mobile app remotely. 10-TILT can be widely used in tree monitoring, pole lean detection, landslide monitoring, etc.

• built-in MEMS accelerometer sensor
• flexible threshold condition settings
• compact size and IP67 waterproof
• easy configuration (via NFC)
• built-in zero adjustments

Features:

• built-in MEMS accelerometer sensor to measure the 3-axis angles of any objects
• flexible threshold condition settings, suitable for different kinds of applications
• easy to install, suitable for various types of objects as trees, poles, grounds, etc.  IP67 waterproof enclosure for outdoor applications and easy to clean
• ultra-wide-distance wireless transmission up to line of sight of 15 km
• equipped with NFC for one touch configuration, supports card emulation mode
• function well with standard LoRaWAN® gateways and network servers
• compliant with Milesight IoT Cloud

Physical characteristics:

• power supply: 2 × 3500 mAh ER17505 Li-SOCl2 Batteries
• battery life: over 5 years (6 triggers per hour)
• operating temperature: -20°C to +60°C
• relative humidity: ≤95% (non-condensing)
• ingress protection: IP67
• dimension: 111 × 62 × 33 mm
• material & color: ABS, black
• installation: on the flat surfaces with screw

Ease of use and compact size

• Milesight EM310 LoRaWAN® Tilt Sensor makes only the settings of a relative initial surface and angle threshold are needed, and the X, Y, Z tilt angles can be leveraged to know object status accurately in real time, straightforward and effortless.

Built-in 3-axis accelerometer

• EM310-TILT can be installed to the objects easily. With X, Y, Z coordinates, the alarm will be triggered right away when the device tilt angle reaches the threshold.

IP67 waterproof and dustproof

• It is qualified to work in harsh or outdoor environments with an IP67 rating, and it is easy to clean.

Flexible threshold condition settings

• up to 36 customized trigger rules
• suitable for different application scenarios:
• landslide monitoring
• tunnel distortion monitoring
• parking garage barrier monitoring
• cranes and construction machines monitoring

LoRaWAN® based

• penetrating signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
• high compatibility: compliant with standard LoRaWAN® gateways and network servers

Cloud data management Milesight IoT cloud:

• data visualization dashboard: all figures in a glance
• automatic triggers: interactive collaboration with Milesight IoT sensors to realize scene-based automation
• regular reports & real-time alerts: data-based insights
• Android & iOS app: manage devices at your fingertips
