Innodisk M.2 (P42) 4IE3 is a NVM Express DRAM-less SSD designed with PCIe interface and industrial 3D TLC NAND Flash. M.2 (P42) 4IE3 supports PCIe Gen4 x4 and it is compliant with NVMe 1.4 providing excellent top and also sustained performance. With sophisticated error detection and correction (ECC) functions, the module can provide full End-to-end Data Path Protection that secures the data transmission between the host system and NAND Flash.

Innodisk M.2 (P42) 4IE3 is designed with AES engine, which is a built in controller. When controller receives the data package from host, AES engine encrypts the data package and saves the encrypted data into NAND flash. Thus, unauthorized personal has no access to decrypt the data in NAND flash.

Features:

• PCIe Gen4 x4, NVMe SSD
• M.2 2242
• dynamic thermal management
• ultra iSLC technology
• standard/wide-temperature
• iPowerGuard protection
• 256 bit AES hardware based encryption
• support write protection (optional)
• support TCG OPAL function (optional)

Specification:

• interface: PCIe Gen. 4 x4
• flash type: iSLC (3D TLC)
• P/E cycle: 100,000
• capacity: 80GB
• max. channels: 4
• sequential R/W (MB/s, max): 3,500/3,000
• max. power consumption (RMS): 4.8W
• thermal sensor
• H/W write protect (optional)
• AES
• TCG OPAL (optional)
• dimension (WxLxH):

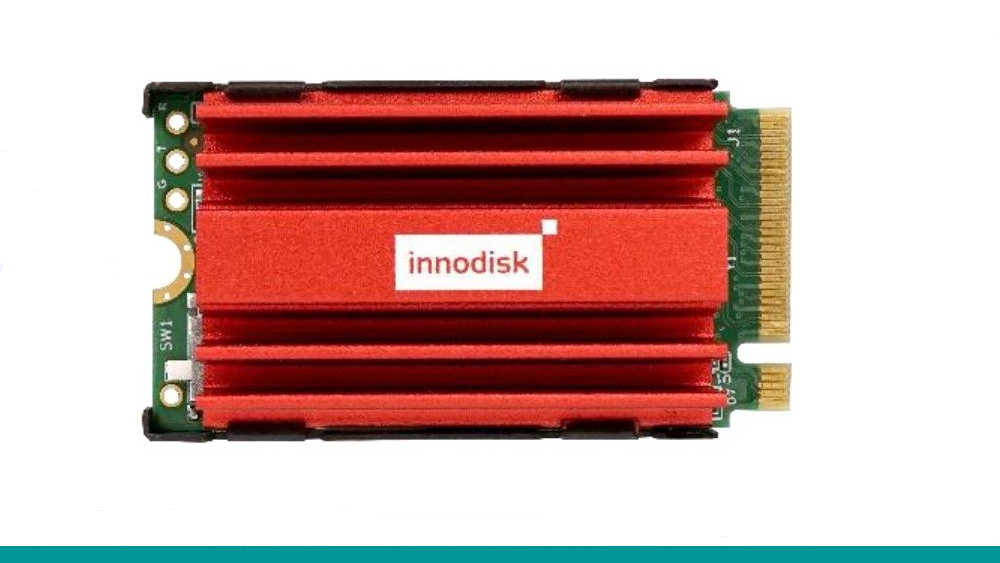

  • WT with heatsink: 25.0 X 42.0 X 14.5 mm
  • pure M.2: 22.0 X 42.0 X 3.5 mm
• environment:
  • vibration: 20G @7~2000Hz
  • shock: 1500G @ 0.5ms
  • operation temperature: 0°C ~ +70°C
  • storage temperature: -40°C ~ +85°C
• MTBF: 3 million hours
