resistors

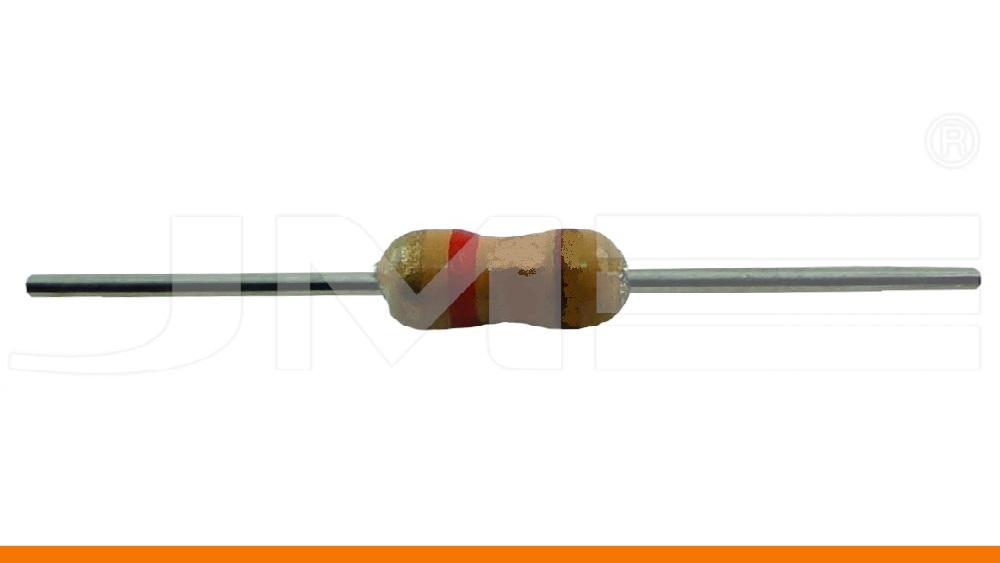

CR25-4.70KAVI-SERT
Manufacturer's P/N: CR025JVTB-4K7
Manufacturer: Hitano
Show more information about the brand Hitano

Resistor 5% 1/4W fi=2,3mm L=6,3mm
Resistance4,7k
Tolerance5%
AssemblyTHT
Maximum power0,25W
Standard packaging:
2000 pcs.

Minimum order:
100 pcs.

Minimum batch:
2000 pcs.

In stock:
Available

Features:

  • Industry's lowest cost
  • Excellent long term stability
  • Used in all kinds of application
  • Standard Value: 10R-10Meg in E24 series
  • Standard tolerance: +/-5% (available +/-2%)
  • Flameproof coating available (As FCR type)
  • Operating Temperature: -55°C ~+125°C

Material:

  • Element: Deposited Carbon Film
  • Core: High Purity Ceramic Al2O3
  • Termination: Standard solder-plated copper lead
  • Coating: Epoxy, (FCR is grey silicone)

Specification:

  • dimensions (L x D x H): 6.0±0.5 x 2.3±0.3 x 27.0 ±3.0 mm
  • power rating 0.25W
  • maximum working voltage: 250V
  • maximum overload voltage: 500V
