/ Electronic components / digital ICs / logic ICs (TTL/CMOS) / Hex Schmitt Trig. Inverters =CD4584
Documents
Similar products
Related products

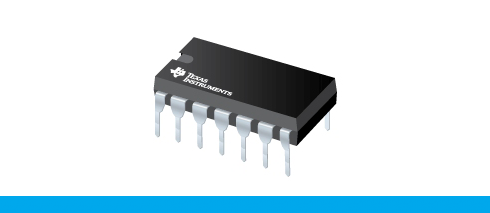

CD40106BM
Manufacturer's P/N:
Manufacturer: Texas Instruments

Hex Schmitt Trig. Inverters =CD4584
Programmable (Y/N)?no
SeriesCMOS
Logical functionINVERTER-Schmitt
Number of items6
ChassisSOIC
Standard packaging:
1 pcs.
Minimum order:
1 pcs.
Minimum batch:
1 pcs.
In stock:
Available

Features:

  • Technology Family CD4000
  • VCC (Min) (V) 3
  • VCC (Max) (V) 18
  • Channels 6
  • IOL (Max) (mA) 2.4
  • IOH (Max) (mA) -2.4
  • ICC (Max) (uA) 30
  • Input type Schmitt-Trigger
  • Output type Push-Pull
  • Features Balanced outputs, Standard speed (tpd > 50ns), Input clamp diode
  • Data rate (Mbps) 24
  • Rating Catalog
