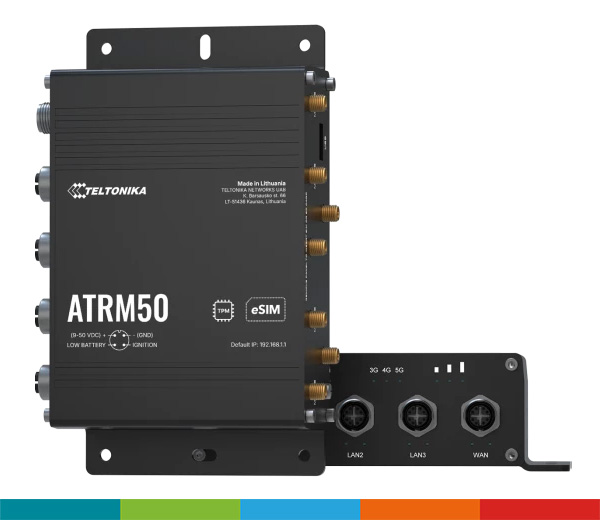

As 5G technology rapidly penetrates industry, transport and public infrastructure, the demand for efficient, mobile and durable devices is growing. One solution that addresses these needs is the advanced 5G router designed for vehicles, rolling stock and other mobile and industrial applications – Teltonika ATRM50.
With its EN 45545-2 and EN 50155 compliant design, dual SIM support, 5G connectivity and wide operating temperature range, the ATRM50 meets the stringent safety and reliability requirements of railway systems, while also being ideal for other demanding transport environments.
The ATRM50 router connects to 5G and 4G LTE networks, delivering impressive data transmission performance. The device achieves download speeds of up to 3.4 gigabits per second and upload speeds of up to nearly 900 megabits per second. Such high bandwidth combined with the ability to operate on the move makes the ATRM50 the ideal solution for vehicle fleets, public transport systems, city surveillance and technical infrastructure management.
The router is equipped with dual-band Wi-Fi 5 (802.11b/g/n/ac standard), which means that it can simultaneously transmit signals in the 2.4 GHz and 5 GHz bands. This feature works perfectly in passenger vehicles, for example.

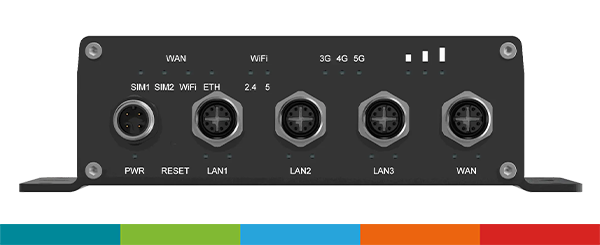

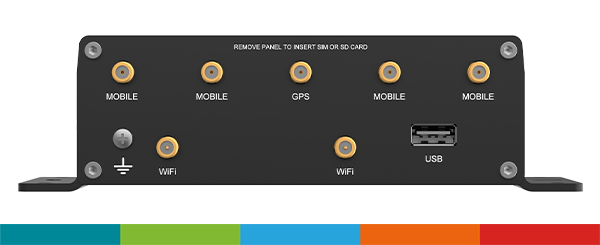

The ATRM50 offers two SIM card slots and supports automatic switching between operators, allowing you to maintain connectivity even if one network loses signal. The router also has four SMA inputs for connecting 5G antennas and two RP-SMA inputs for Wi-Fi antennas. In addition, the user has access to a GNSS connector that works with GPS, GLONASS, BeiDou and Galileo systems, enabling precise location tracking. The housing features four Gigabit Ethernet ports equipped with industrial M12 X-coded connectors, ensuring a reliable wired connection in harsh conditions.
Unlike classic office routers, the ATRM50 has been designed to operate in the demanding environment of the transport industry. The device functions without interference in temperatures ranging from -40 to +75 °C. It can be powered by a wide range of voltages from 9 to 50 volts DC.
In addition, the router complies with the EN 45545-2 and EN 50155 railway standards, making it safe for use in rail vehicles and other means of public transport where strict safety and shock resistance standards apply.
The ATRM50 router works with the Teltonika RMS (Remote Management System) platform, which allows the user to fully manage the device remotely, configure it, and monitor its operation in real time. The RMS system also allows for tunnelling connections to devices behind NAT and for creating data visualisations and reports.
In terms of security, the ATRM50 provides users with a firewall, IP and MAC address filtering, as well as support for multiple VPN protocols such as IPSec, OpenVPN, WireGuard, ZeroTier and DMVPN. Users can also configure multiple Wi-Fi networks with separate SSIDs and manage VLANs, which provides great flexibility in organising connections.
The ATRM50 is the answer to the growing needs of transport digitisation, infrastructure mobility and process automation. At a time when reliable connectivity is a key element of modern systems, the Teltonika ATRM50 router is not only a useful tool, but an essential one.
Whether you manage a city fleet, railway infrastructure, emergency communication systems or IoT projects in a demanding environment, the ATRM50 is a solution that will meet your expectations and prepare your organisation for the challenges of the future.
