modular voltage converters

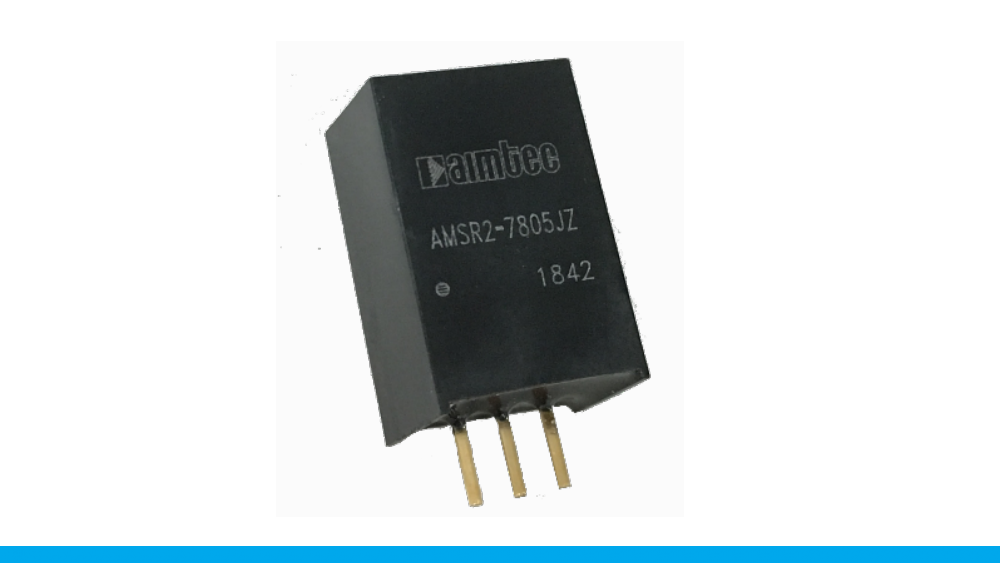

AMSR2-7805JZ
Manufacturer's P/N: AMSR2-7805JZ
Manufacturer: Aimtec Inc.
Show more information about the brand Aimtec Inc.

DC/DC AIMTEC converter AMSR2-7805JZ 10W 2A 5V
TypeDC/DC
Output power10W
Input voltage8-36VDC
Output voltages5VDC
AssemblySMD
Standard packaging:
1 pcs.

Minimum order:
44 pcs.

Minimum batch:
44 pcs.

In stock:
Ask

Features:

  • input voltage up to 36V
  • operating temp: -40 °C to +85 °C
  • ultra-low no load input current: 0.1mA typ.
  • low ripple & noise, 30mV typ.
  • continuous short circuit protection
  • design to meet EN62368

Specification:

  • input voltage: 24 (8-36) VDC
  • output voltage: 5 VDC
  • output current max: 2000mA
  • max. capacitive load: 1000uF
  • efficiency: 87%
