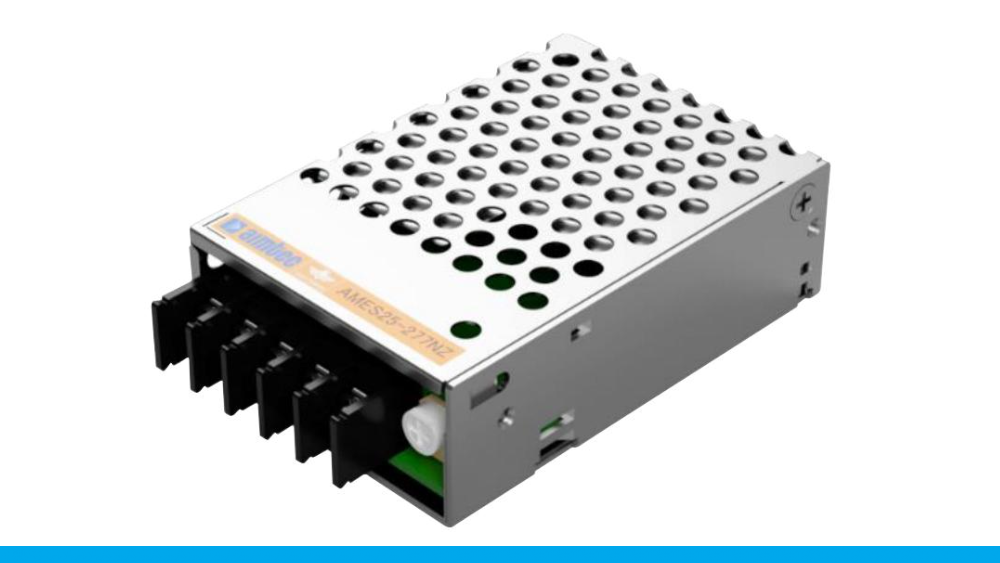

The AMES25-277NZ is a 25W AC/DC converter that offers much greater cost effectiveness due to material normalization and production automation also leading to improved reliability and performance. Offering a wide input voltage range of 85-305VAC and an output voltage range from 3.3-48V, this series will offer many benefits to your new system design. This series offers great operating temperatures, from -30℃ to 70℃ and also features an isolation of 4000VAC for improved reliability and system safety. Furthermore, a high MTBF of 450,000h, output short circuit protection (OSCP), output over-current protection (OCP) and an output over-voltage protection (OVP) come standard with the series. The AMES25-277NZ is suitable for street lighting controls, grid power, instrumentation, industrial controls, communication and civil applications.

Features:

• universal input: 85~305VAC / 100~430VDC
• operating temperatures: -30°C to +70°C
• high isolation voltage: Up to 4000VAC
• low ripple & noise: 80mV(p-p).
• output short circuit, over-current, over-voltage protection
• regulated output

Specification:

• input voltage: 85~305VAC / 47~63Hz / 100~430VDC
• max. output wattage: 27.36W
• output voltage: 48V
• output current max: 0.57A
• maximum capacitive load: 500uF
• efficiency: 88%
