Specification:

• input voltage: 85~264V AC / 47~63Hz / 120~370V DC
• max output wattage: 30W
• output voltage: 15V
• output current max: 2000mA
• high isolation voltage: 4000V AC
• efficiency: 89%
• operating temperature: -40~+70°C
• low ripple & noise, 240mV(p-p) max.
• output short circuit, over current, over voltage protection

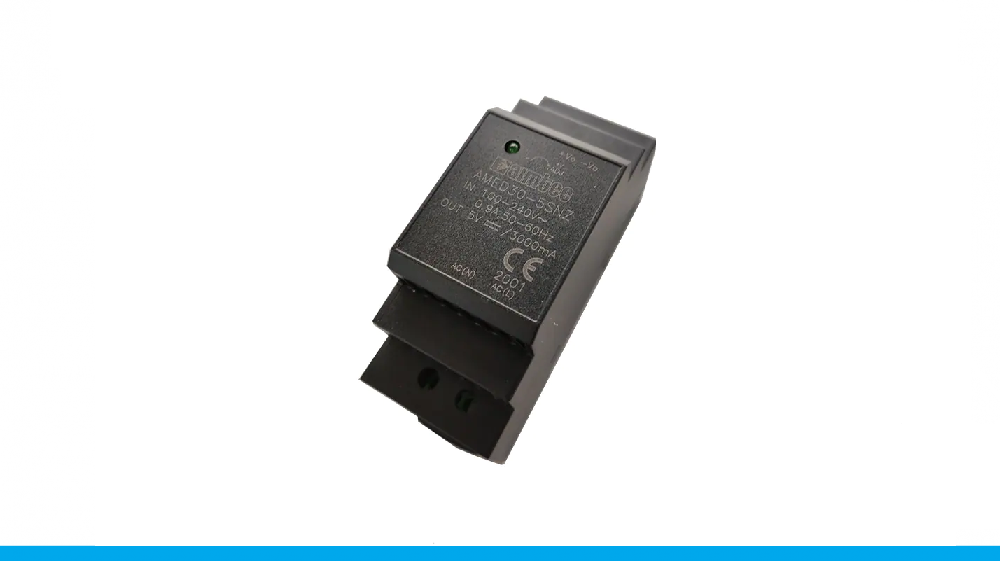

The AMED30-NZ is whole new DIN rail bracket AC-DC converter featuring a cost effective, energy efficient solution. The products offer a high level of stability and immunity to noise, compliant with international IEC/EN/UL62368 and EN61558 standards. These lightweight AC-DC converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and numerous applications for harsh environments. This new series offers great operating temperatures, from -40℃ to 70℃ and an isolation of 4000VAC for improved reliability and system safety. Furthermore, a high MTBF of 300,000h, output short circuit protection (OSCP), output over-current protection (OCP).
