modular voltage converters

AM1DM-0505SH60-NZ
Manufacturer's P/N: AM1DM-0505SH60-NZ
Manufacturer: Aimtec Inc.
Show more information about the brand Aimtec Inc.

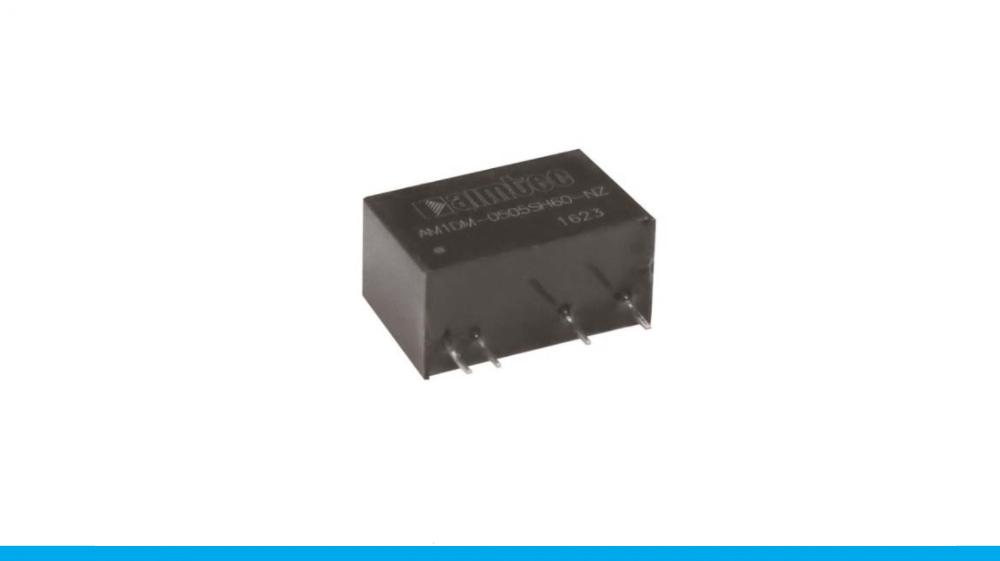

DC-DC AIMTEC converter AM1DM-0505SH60-NZ 5VDC Uisol=6kV THT
TypeDC/DC
Output power1W
Input voltage4,5-5,5V
Output voltages5V
AssemblyTHT
Standard packaging:
20 pcs.

Minimum order:
10 pcs.

Minimum batch:
10 pcs.

In stock:
Ask

Features:

  • 7 pin SIP package
  • high efficiency
  • reinforced insulation
  • leakage current < 2µA
  • operating temperature -40°C ~ + 85°C
  • isolation voltage: 4200VAC or 6000VDC
  • ultra-low isolation capacitance of 5pF
  • IEC/EN/UL60601-1
  • 1xMOPP/2xMOOP

Specification:

  • input voltage: 4.5-5.5V
  • output voltage: 5V
  • output current max: 200mA
  • max. capacitive load: 1000uF
  • isolation: 6000VDC, 4200VAC
  • efficiency: 78%
