modular voltage converters

AM1D-0505SZ
Manufacturer's P/N: AM1D-0505SZ
Manufacturer: Aimtec Inc.
Show more information about the brand Aimtec Inc.

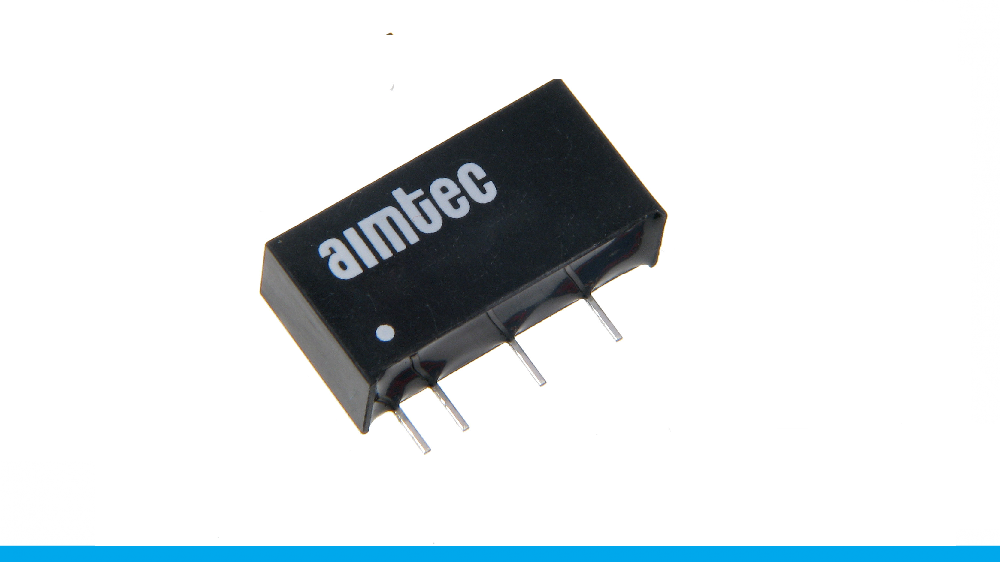

AIMTEC DC/DC conveter AM1D-0505SZ 1W, +5V/ +5V, Uisol=1kV
TypeDC/DC
Output power1W
Input voltage4,5-5,5V
Output voltages5V
AssemblyTHT
Standard packaging:
1 pcs.

Minimum order:
1 pcs.

Minimum batch:
1 pcs.

In stock:
Ask

Features:

  • RoHS compliant
  • operating temperature -40oC to + 85oC
  • short circuit protection
  • low profile plastic package
  • pin compatible with multiple manufacturers
  • 7 pin SIP package

Specification:

  • input voltage: 4.4-5.5V
  • output voltage: 5V
  • output current max.: 200mA
  • isolation: 1000VDC
  • input current full load: 247mA
  • input current no load: 17mA
  • max. capacitive load: 220uF
  • efficiency: 81%
