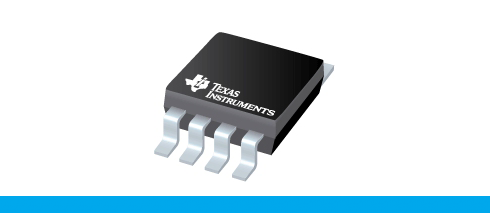

74LVC3G34DCU
Manufacturer's P/N: SN74LVC3G34DCUR
Manufacturer: Texas Instruments

Triple Buffer Gate 1.65-5.5V 32mA
Programmable (Y/N)?no
SeriesLVC
Logical functionBuffer/Driver
Number of items3
ChassisVSSOP
Standard packaging:
1 pcs.
Minimum order:
1 pcs.
Minimum batch:
1 pcs.
In stock:
Ask

Features:

  • Technology Family LVC
  • VCC (Min) (V) 1.65
  • VCC (Max) (V) 5.5
  • Channels 3
  • IOL (Max) (mA) 32
  • IOH (Max) (mA) -32
  • Input type Standard CMOS
  • Output type Push-Pull
  • Features Balanced outputs, Very high speed (tpd 5-10ns), Partial power down (Ioff), Over-voltage tolerant inputs
  • Data rate (Mbps) 300
  • Rating Catalog
